Fitting f reclining front seat for BMW 3 Series E21 320i (1977)

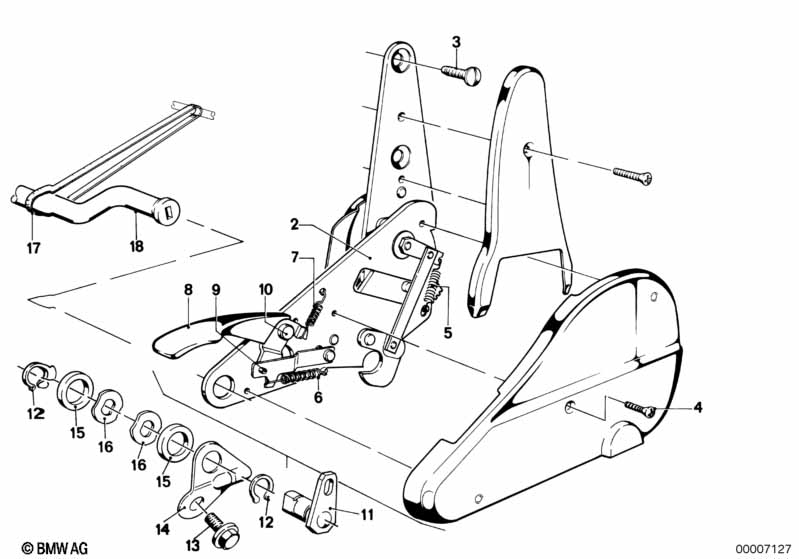

This Fitting f reclining front seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 304 | |||||||||
| 01 | Recl. seat fitting left | 1 | 52101868853 | ENDED | Shop at ECS Tuning | |||||
| 01 | Recl. seat fitting right | 1 | 52101868854 | ENDED | Shop at ECS Tuning | |||||
| 02 | Recl.seat fitting outer left | 1 | 52101855363 | $56.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Recl.seat fitting outer right | 1 | 52101855364 | $57.09 | Shop at ECS Tuning | |||||
| 02 | Recl.seat fitting inner left | 1 | 52101871259 | $157.12 | ENDED | Shop at ECS Tuning | ||||
| 02 | Recl.seat fitting inner right | 1 | 52101871260 | $161.82 | ENDED | Shop at ECS Tuning | ||||
| 03 | Csk.fillister head srew | AM8X20 | 8 | 52101842674 | $0.71 | Shop at ECS Tuning | ||||
| 04 | Self tapping screw | EM5X16 | 4 | 07119918526 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Spring | 2 | 52109071078 | $8.32 | ENDED | Shop at ECS Tuning | ||||
| 06 | Tension spring | 2 | 52101841730 | $1.01 | ENDED | Shop at ECS Tuning | ||||
| 07 | Tension spring | 2 | 52101841739 | $15.74 | Shop at ECS Tuning | |||||
| 08 | Lever left | 1 | 52101841743 | $63.18 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lever right | 1 | 52101841744 | $63.18 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pin | 2 | 52101841747 | ENDED | Shop at ECS Tuning | |||||
| 10 | Pin | 2 | 52101841736 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 11 | Transfer lever | 4 | 52101852980 | $5.06 | Shop at ECS Tuning | |||||
| 12 | Lock Ring | 20X1,2 | 4 | 07119934132 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Screw | 2 | 52101868860 | $1.53 | ENDED | Shop at ECS Tuning | ||||
| 14 | Supporting plate inner left | 1 | 52101868855 | $6.49 | ENDED | Shop at ECS Tuning | ||||
| 14 | Supporting plate IIner right | 1 | 52101868856 | $6.49 | ENDED | Shop at ECS Tuning | ||||
| 15 | Shim | 2 | 52101868859 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 16 | Wave washer | 4 | 52101871100 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 17 | Rubber Ring | 2 | 52101843100 | $0.54 | Shop at ECS Tuning | |||||
| 18 | Connection pipe | 2 | 52101841682 | $9.08 | ENDED | Shop at ECS Tuning | ||||
