BMW sports seat seat rail electrical for BMW 5 Series E34 525i (1990)

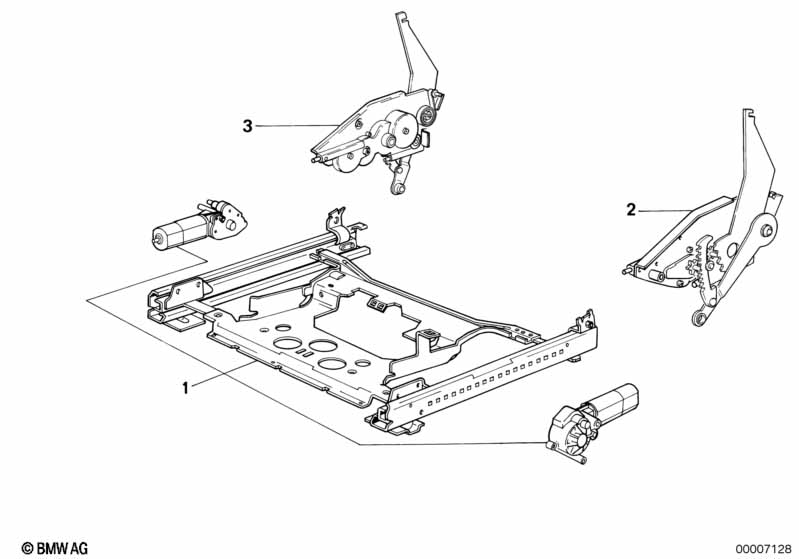

This BMW sports seat seat rail electrical technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat rail w.actuators | 2 | 09/1992 | 52101928965 | $571.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat rail w.actuators | LINKS | 1 | 09/1992 | 52108154395 | $645.35 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Seat rail w.actuators | RECHTS | 1 | 09/1992 | 52108154396 | $630.19 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Lower strap, front | 1 | 09/1992 | 72118148458 | $117.52 | Shop at ECS Tuning | ||||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 01 | Seat rail w.actuators | RECHTS | 1 | 09/1992 | 52108154434 | $485.46 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Lower strap, front | 1 | 09/1992 | 72118148458 | $117.52 | Shop at ECS Tuning | ||||
| 01 | Seat rail w. actuators extended | RECHTS | 1 | 52108168162 | $1074.15 | ENDED | Shop at ECS Tuning | |||
| 02 | Gearbox left | RHW/BOSCH | 2 | 52101964171 | $206.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Gearbox left | BROSE | 2 | 52108170117 | $191.94 | ENDED | Shop at ECS Tuning | |||
| 03 | Gearbox right | RHW/BOSCH | 2 | 52101964176 | $206.31 | Shop at ECS Tuning | ||||
| 03 | Gearbox right | BROSE | 2 | 52108170118 | $198.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 03 | Gearbox right | RHW/BOSCH | 1 | 52101964178 | $206.31 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
