Lower seat parts for BMW 3 Series E21 323i (1982)

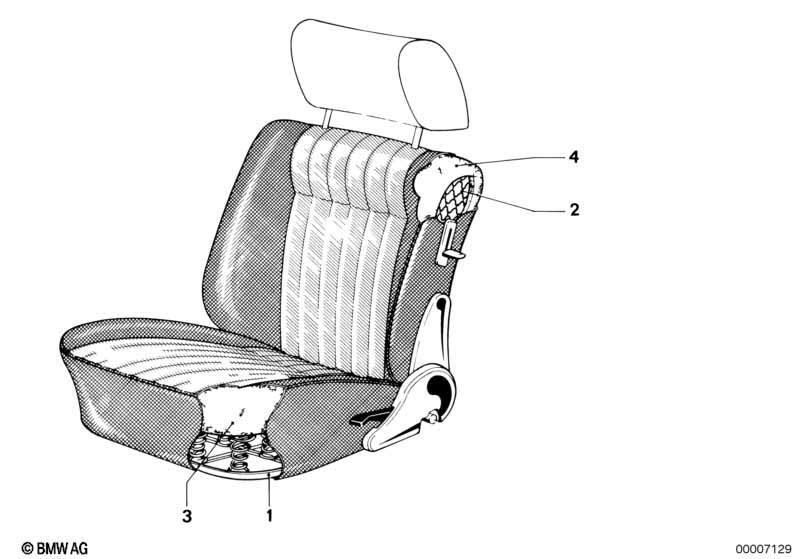

This Lower seat parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 305/341 | |||||||||
| 01 | Spring frame seat front | 2 | 09/1980 | 52101887109 | $338.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Spring frame lower seat | 2 | 09/1980 | 52101887212 | $289.04 | Shop at ECS Tuning | ||||
| 02 | Spring frame backrest front | 2 | 09/1980 | 52101887210 | $289.04 | ENDED | Shop at ECS Tuning | |||
| 03 | Pad seat front | 2 | 09/1980 | 52101887934 | $79.32 | ENDED | Shop at ECS Tuning | |||
| 04 | Pad seat backrest front | 2 | 09/1980 | 52101887936 | $101.00 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Lower seat parts?
- This technical diagram illustrates the Lower seat parts within the Seats group for the 3 Series E21 323i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Spring frame seat front (Part #52101887109).
- Which models use the hardware listed in this Lower seat parts?
- The hardware and components featured in the Lower seat parts are specific to the 3 Series E21 323i produced during 1982. These technical specifications ensure that parts like the Spring frame seat front (52101887109) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lower seat parts assembly?
- Each item in the Lower seat parts corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Spring frame seat front by locating its position on the schematic, which then links to the official BMW part number 52101887109 for the Seats section.
