Front seat-head rest support retainer for BMW 3 Series E21 320 (1977)

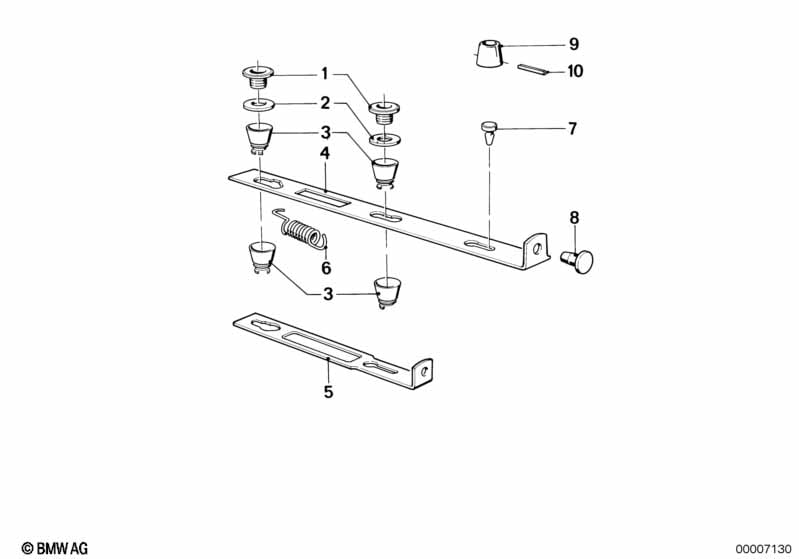

This Front seat-head rest support retainer technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 300-301-302-303-304-305/341 | |||||||||
| 01 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 02 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 03 | Sleeve | 8 | 52101838965 | $0.61 | Shop at ECS Tuning | |||||
| 04 | Lock lever | 2 | 52101838964 | $2.71 | Shop at ECS Tuning | |||||
| 06 | Spring | 2 | 52101838966 | $0.44 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 08 | Button | 2 | 52101838967 | $0.50 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 09 | Sleeve | 4 | 52101840414 | ENDED | Shop at ECS Tuning | |||||
| 10 | Roll pin | 3X12 | 4 | 07119941316 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
