BMW sportseat seat rail for BMW 6 Series E24 633CSi (1984)

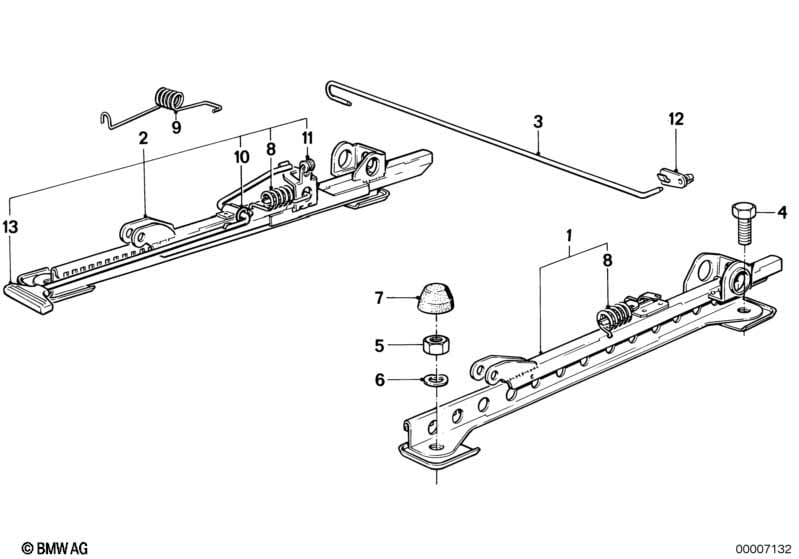

This BMW sportseat seat rail technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 624 | |||||||||
| 01 | Seat rail outer left | 1 | 09/1985 | 52101926815 | $138.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat rail outer right | 1 | 09/1985 | 52101926816 | $54.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Seat rail inner left | 1 | 09/1985 | 52101926813 | $67.51 | ENDED | Shop at ECS Tuning | |||
| 02 | Seat rail inner right | 1 | 09/1985 | 52101926814 | $54.68 | ENDED | Shop at ECS Tuning | |||
| 03 | Connection rod, seat catch | 2 | 09/1985 | 52101906410 | $1.86 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M10X25-Z3 | 8 | 09/1985 | 07119913916 | $1.18 | Shop at ECS Tuning | |||
| 08 | Spring | 3 | 09/1985 | 52101916609 | $1.03 | Shop at ECS Tuning | ||||
| 09 | Spring | 1 | 09/1985 | 52101916610 | $1.17 | ENDED | Shop at ECS Tuning | |||
| 10 | Spring left | 1 | 09/1985 | 52101916607 | ENDED | Shop at ECS Tuning | ||||
| 10 | Spring right | 1 | 09/1985 | 52101916608 | ENDED | Shop at ECS Tuning | ||||
| 11 | Grommet | 2 | 09/1985 | 52101903872 | $0.50 | ENDED | Shop at ECS Tuning | |||
| 12 | Clamp | 2 | 09/1985 | 52101903871 | $0.71 | Shop at ECS Tuning | ||||
| 13 | Handle | 2 | 09/1985 | 52101934417 | $2.41 | Shop at ECS Tuning | ||||
