Front seat rail for BMW 5 Series E28 528e (1987)

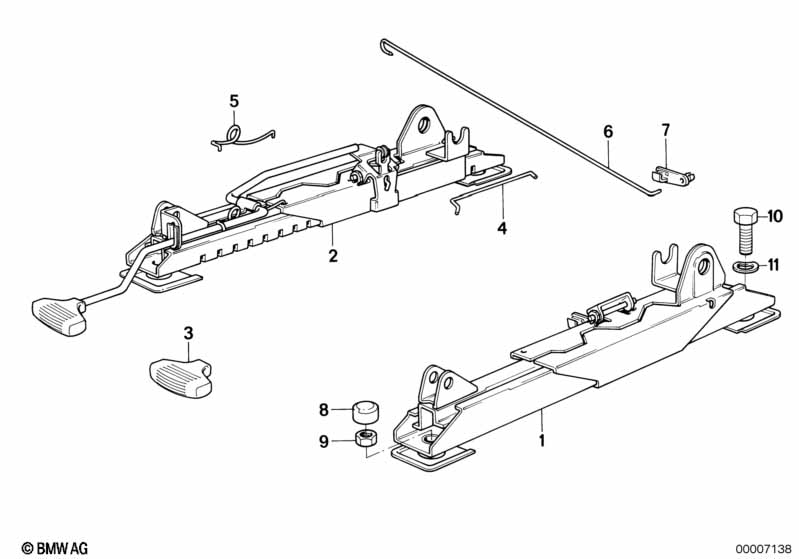

This Front seat rail technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 546 | |||||||||
| 01 | Seat rail outer left | 1 | 09/1985 | 52101943343 | $65.84 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat rail outer right | 1 | 09/1985 | 52101943344 | $65.84 | ENDED | Shop at ECS Tuning | |||
| 02 | Seat rail inner left | 1 | 09/1985 | 52101943341 | $65.84 | ENDED | Shop at ECS Tuning | |||
| 02 | Seat rail inner right | 1 | 09/1985 | 52101943342 | $65.84 | ENDED | Shop at ECS Tuning | |||
| 03 | Handle | 2 | 09/1985 | 52101934417 | $2.41 | Shop at ECS Tuning | ||||
| 04 | Spring | 4 | 09/1985 | 52101942251 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 05 | Spring left | 1 | 09/1985 | 52101942667 | $1.66 | ENDED | Shop at ECS Tuning | |||
| 05 | Spring right | 1 | 09/1985 | 52101942668 | $1.66 | ENDED | Shop at ECS Tuning | |||
| 06 | Connection rod, seat catch | 2 | 09/1985 | 52101942526 | $2.33 | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 09/1985 | 52101903871 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M10X50-Z3 | 2 | 09/1985 | 07119915182 | ENDED | Shop at ECS Tuning | |||
