Front seat frame mech./el./singl.parts for BMW 5 Series E34 525td (1995)

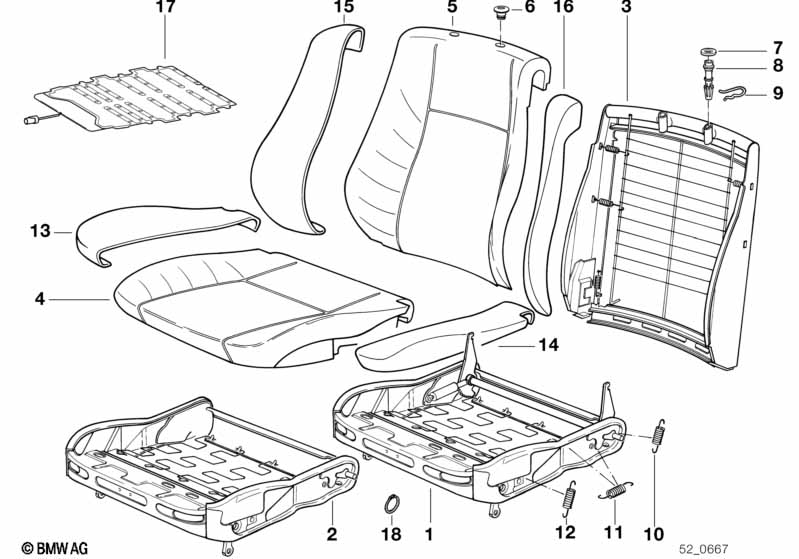

This Front seat frame mech./el./singl.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 01 | Seat frame | 1 | 09/1992 | 52108154209 | $289.40 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Seat frame | 1 | 09/1992 | 52108154210 | $228.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 01 | Seat frame w.actuators | BROSE | 1 | 52108181674 | $1245.89 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat, electrically adjustable, front |
=Yes |
|||||||||
| 01 | Seat frame w.actuators | BROSE | 2 | 52108104237 | $1245.89 | ENDED | Shop at ECS Tuning | |||
| 02 | Seat frame | 2 | 52101964899 | $320.69 | Shop at ECS Tuning | |||||
| 03 | Backrest frame | 2 | 52101973161 | $166.42 | Shop at ECS Tuning | |||||
| 04 | Pad seat front | 2 | 52101973383 | $142.37 | Shop at ECS Tuning | |||||
| 05 | Pad seat backrest | 2 | 52101973162 | $156.59 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 08 | Guide bush | 4 | 52208132020 | $1.80 | Shop at ECS Tuning | |||||
| 09 | Spring washer | 4 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
| 10 | Spring | 4 | 52101964985 | $0.54 | ENDED | Shop at ECS Tuning | ||||
| 11 | Spring | 4 | 52101964986 | $0.54 | Shop at ECS Tuning | |||||
| 12 | Spring | 4 | 52101964987 | $0.43 | Shop at ECS Tuning | |||||
| For vehicles with Leather trim |
=Yes |
|||||||||
| 13 | Pad seat right | 2 | 52101958392 | $7.56 | ENDED | Shop at ECS Tuning | ||||
| 14 | Pad seat left | 2 | 52101957631 | $5.82 | Shop at ECS Tuning | |||||
| 15 | Pad backrest right | 2 | 52101958390 | $8.83 | Shop at ECS Tuning | |||||
| 16 | Pad backrest left | 2 | 52101957621 | $7.86 | Shop at ECS Tuning | |||||
| 17 | Sensor mat f co-driver's seat identif. | 1 | 09/1993 | 65778367597 | $124.53 | Shop at ECS Tuning | ||||
| 18 | Lock Ring | 24X12 | 4 | 52108215355 | $0.41 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525td Front seat frame mech./el./singl.parts?
- This technical diagram illustrates the Front seat frame mech./el./singl.parts within the Seats group for the 5 Series E34 525td produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Seat frame (Part #52108154209).
- Which models use the hardware listed in this Front seat frame mech./el./singl.parts?
- The hardware and components featured in the Front seat frame mech./el./singl.parts are specific to the 5 Series E34 525td produced during 1995. These technical specifications ensure that parts like the Seat frame (52108154209) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat frame mech./el./singl.parts assembly?
- Each item in the Front seat frame mech./el./singl.parts corresponds to the numbered list below the illustration. For the 5 Series E34 525td, you can identify the Seat frame by locating its position on the schematic, which then links to the official BMW part number 52108154209 for the Seats section.
