Recaro sports seat-spacer for BMW 3 Series E21 323i (1982)

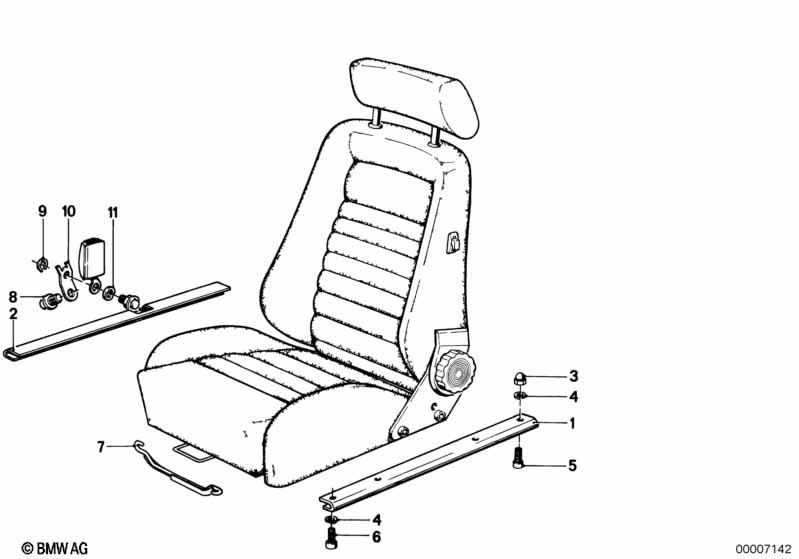

This Recaro sports seat-spacer technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exterior spacer | 2 | 08/1978 | 52101874500 | $32.90 | ENDED | Shop at ECS Tuning | |||
| 02 | Spacer inner right | 1 | 08/1978 | 52101874505 | $34.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Spacer inner left | 1 | 08/1978 | 52101874506 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring washer | B6 | 8 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M6X12 | 8 | 07119902626 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Connection rod | 2 | 08/1978 | 52101880467 | ENDED | Shop at ECS Tuning | ||||
| 08 | Screw | 2 | 52101868860 | $1.53 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lock Ring | 20X1,2 | 2 | 07119934132 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Supporting plate IIner right | 1 | 52101874621 | $4.46 | ENDED | Shop at ECS Tuning | ||||
| 10 | Supporting plate inner left | 1 | 52101874622 | $4.46 | ENDED | Shop at ECS Tuning | ||||
| 11 | Wave washer | 2 | 52101871100 | $0.59 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Recaro sports seat-spacer?
- This technical diagram illustrates the Recaro sports seat-spacer within the Seats group for the 3 Series E21 323i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Exterior spacer (Part #52101874500).
- Which models use the hardware listed in this Recaro sports seat-spacer?
- The hardware and components featured in the Recaro sports seat-spacer are specific to the 3 Series E21 323i produced during 1982. These technical specifications ensure that parts like the Exterior spacer (52101874500) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Recaro sports seat-spacer assembly?
- Each item in the Recaro sports seat-spacer corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Exterior spacer by locating its position on the schematic, which then links to the official BMW part number 52101874500 for the Seats section.
