BMW sports seat for BMW 5 Series E12 528 (1976)

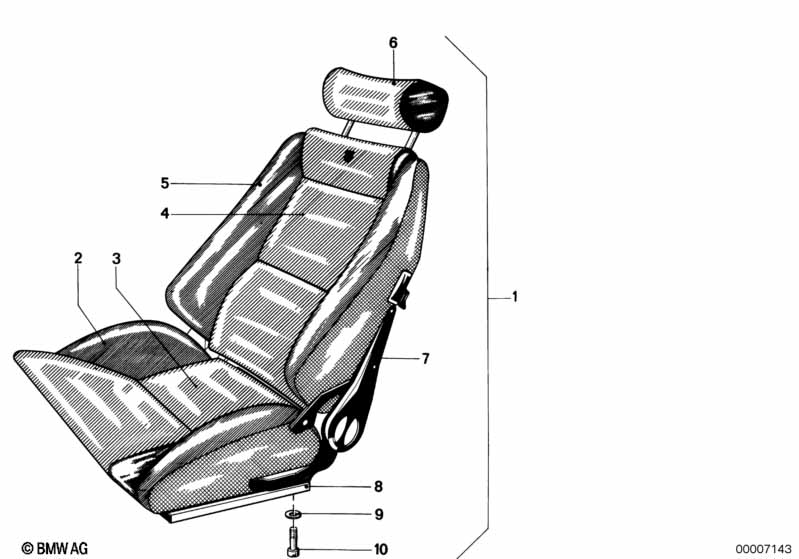

This BMW sports seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Scheel | |||||||||
| 02 | Cover lateral cloth black right | 1 | 08/1977 | 52101846136 | ENDED | Shop at ECS Tuning | ||||
| 06 | Head rest cloth black front | 1 | 08/1977 | 52101832705 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering cap | 2 | 08/1977 | 52101832708 | ENDED | Shop at ECS Tuning | ||||
| 08 | Seat rail outer left | 1 | 05/1977 | 52101829901 | $37.75 | ENDED | Shop at ECS Tuning | |||
| 08 | Seat rail outer right | 1 | 05/1977 | 52101829902 | ENDED | Shop at ECS Tuning | ||||
| 08 | Seat rail inner left | 1 | 05/1977 | 52101832583 | $22.32 | ENDED | Shop at ECS Tuning | |||
| 08 | Seat rail inner right | 1 | 05/1977 | 52101832584 | $22.32 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | A6,4-ZNNIV SI | 4 | 08/1977 | 07119904202 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 08/1977 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 BMW sports seat?
- This technical diagram illustrates the BMW sports seat within the Seats group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Cover lateral cloth black right (Part #52101846136).
- Which models use the hardware listed in this BMW sports seat?
- The hardware and components featured in the BMW sports seat are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Cover lateral cloth black right (52101846136) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW sports seat assembly?
- Each item in the BMW sports seat corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Cover lateral cloth black right by locating its position on the schematic, which then links to the official BMW part number 52101846136 for the Seats section.
