Recaro sp.S.-seat cover for BMW 5 Series E12 528 (1976)

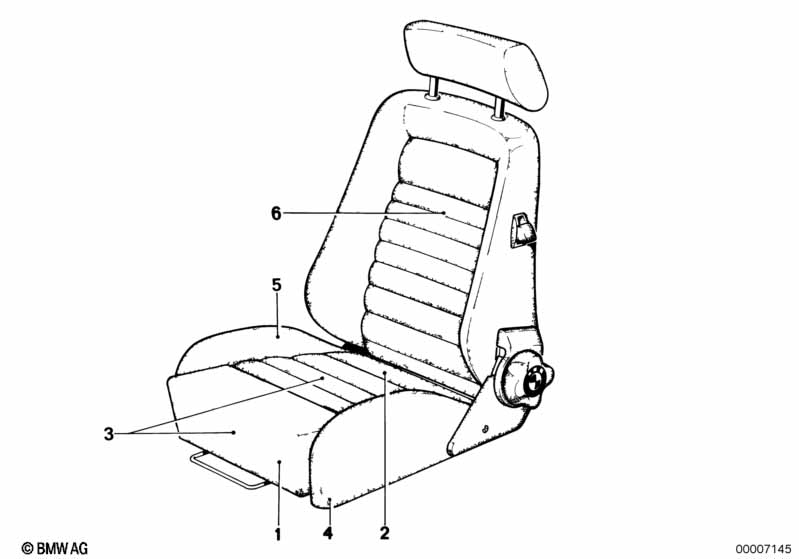

This Recaro sp.S.-seat cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sliding element lining vinyl | SCHWARZ | 2 | 08/1979 | 52101864933 | $27.62 | ENDED | Shop at ECS Tuning | ||
| 01 | Sliding element lining cloth | SCHWARZ | 2 | 08/1979 | 52101868237 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat cover cloth | SCHWARZ | 2 | 08/1979 | 52101873404 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat cover vinyl | SCHWARZ | 2 | 08/1979 | 52101874636 | $97.65 | ENDED | Shop at ECS Tuning | ||
| 04 | Cover lateral vinyl | SCHWARZ | 2 | 08/1979 | 52101864931 | $59.43 | ENDED | Shop at ECS Tuning | ||
| 04 | Cover lateral cloth | SCHWARZ | 2 | 08/1979 | 52101868235 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover lateral vinyl | SCHWARZ | 2 | 08/1979 | 52101864930 | $52.38 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover lateral cloth | SCHWARZ | 2 | 08/1979 | 52101868236 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover backrest cloth | SCHWARZ | 2 | 08/1979 | 52101873407 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover backrest, imitation leather | SCHWARZ | 2 | 08/1979 | 52101874658 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Recaro sp.S.-seat cover?
- This technical diagram illustrates the Recaro sp.S.-seat cover within the Seats group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Sliding element lining vinyl (Part #52101864933).
- Which models use the hardware listed in this Recaro sp.S.-seat cover?
- The hardware and components featured in the Recaro sp.S.-seat cover are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Sliding element lining vinyl (52101864933) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Recaro sp.S.-seat cover assembly?
- Each item in the Recaro sp.S.-seat cover corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Sliding element lining vinyl by locating its position on the schematic, which then links to the official BMW part number 52101864933 for the Seats section.
