Recaro sports seat-backrest unlocking for BMW 5 Series E12 520 (1981)

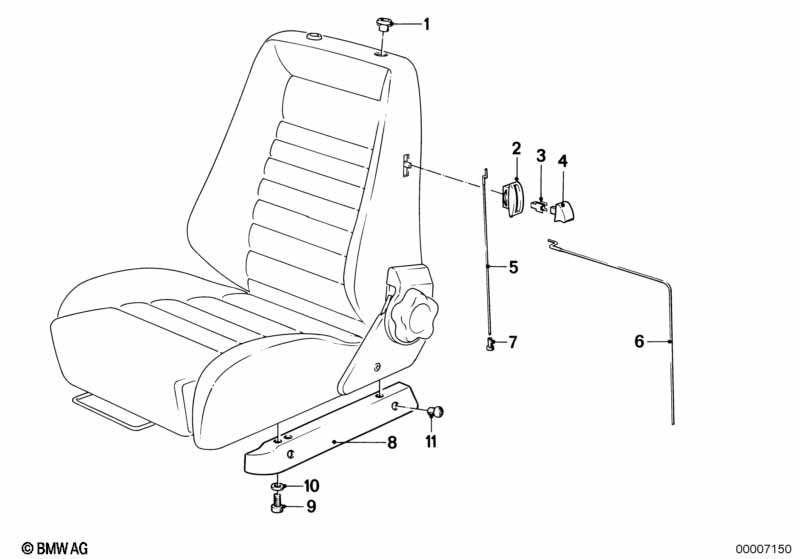

This Recaro sports seat-backrest unlocking technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sleeve | 4 | 08/1979 | 52101875831 | $6.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 4 | 52101883322 | $2.29 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clamp | 4 | 52101901942 | $0.39 | ENDED | Shop at ECS Tuning | ||||
| 04 | Handle | 4 | 52101883321 | $2.09 | Shop at ECS Tuning | |||||
| 05 | Rope | L=304MM | 4 | 52101901940 | $8.85 | ENDED | Shop at ECS Tuning | |||
| 07 | NIpple | 2 | 52101901941 | $1.88 | ENDED | Shop at ECS Tuning | ||||
| 08 | Spacer left | 2 | 08/1979 | 52101879911 | $38.50 | ENDED | Shop at ECS Tuning | |||
| 08 | Spacer right | 2 | 08/1979 | 52101879912 | $38.50 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister-head screw | M6X12 | 8 | 07119902626 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Spring washer | B6 | 8 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Plug | 4 | 08/1979 | 52101875005 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Recaro sports seat-backrest unlocking?
- This technical diagram illustrates the Recaro sports seat-backrest unlocking within the Seats group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Sleeve (Part #52101875831).
- Which models use the hardware listed in this Recaro sports seat-backrest unlocking?
- The hardware and components featured in the Recaro sports seat-backrest unlocking are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Sleeve (52101875831) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Recaro sports seat-backrest unlocking assembly?
- Each item in the Recaro sports seat-backrest unlocking corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Sleeve by locating its position on the schematic, which then links to the official BMW part number 52101875831 for the Seats section.
