Recaro sports seat part for BMW 3 Series E30 325i (1993)

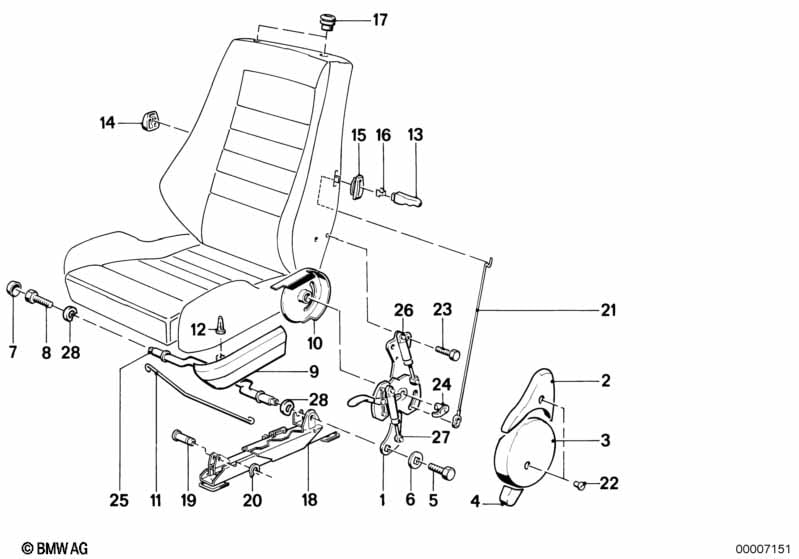

This Recaro sports seat part technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Recl.seat fitting outer left | 1 | 52101909227 | ENDED | Shop at ECS Tuning | |||||
| 01 | Recl.seat fitting outer right | 1 | 52101909228 | ENDED | Shop at ECS Tuning | |||||
| 01 | Recl.seat fitting inner left | 1 | 52101909229 | ENDED | Shop at ECS Tuning | |||||
| 01 | Recl.seat fitting inner right | 1 | 52101909230 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cover panel outer left | 1 | 52101909237 | $5.34 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover panel outer right | 1 | 52101909238 | $5.94 | Shop at ECS Tuning | |||||
| 03 | Cover panel outer left | 1 | 52101909239 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover panel outer right | 1 | 52101909240 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering inner left | 1 | 52101916215 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering inner right | 1 | 52101916216 | ENDED | Shop at ECS Tuning | |||||
| 04 | Covering cap | ANTHRAZIT | 2 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | 7/16" 20MM | 2 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 07 | Covering cap | ANTHRAZIT | 2 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | 7/16" 20MM | 2 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering outer left | 1 | 52101949981 | $10.89 | ENDED | Shop at ECS Tuning | ||||
| 09 | Covering outer right | 1 | 52101949982 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cover panel outer left | 1 | 52101916201 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cover panel outer right | 1 | 52101916202 | ENDED | Shop at ECS Tuning | |||||
| 11 | Connection rod, seat catch | 2 | 52101906587 | $1.86 | Shop at ECS Tuning | |||||
| 12 | Clip | 2 | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 17 | Sleeve | 4 | 52101875831 | $6.67 | ENDED | Shop at ECS Tuning | ||||
| 18 | Seat rail inner left | 1 | 52101941977 | $45.88 | Shop at ECS Tuning | |||||
| 18 | Seat rail inner right | 1 | 52101941978 | $44.39 | Shop at ECS Tuning | |||||
| 18 | Seat rail outer left | 1 | 52101941979 | $36.59 | Shop at ECS Tuning | |||||
| 18 | Seat rail outer right | 1 | 52101941980 | $44.39 | Shop at ECS Tuning | |||||
| 19 | Bolt | 4 | 52101919478 | $1.77 | Shop at ECS Tuning | |||||
| 22 | Push-button | ANTHRAZIT | 8 | 52101906933 | $0.41 | Shop at ECS Tuning | ||||
| 23 | Fillister head screw | M6X12-Z1 | 4 | 07119907596 | $0.36 | Shop at ECS Tuning | ||||
| 24 | Transfer lever | 2 | 52101906417 | $4.67 | Shop at ECS Tuning | |||||
| 25 | Connection pipe | 2 | 52101941560 | $18.48 | Shop at ECS Tuning | |||||
| 26 | Gas pressurized spring backrest adjuster | OFFENES AUGE | 2 | 52101965632 | $48.41 | Shop at ECS Tuning | ||||
| 27 | Gas pressurized spring vert.seat adjust. | OFFENES AUGE | 2 | 52101965645 | $48.41 | Shop at ECS Tuning | ||||
| 28 | Wave washer | 16,5 / 22 | 4 | 52101919975 | $2.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
