BMW sportseat spring frame/pad for BMW 7 Series E23 733i (1986)

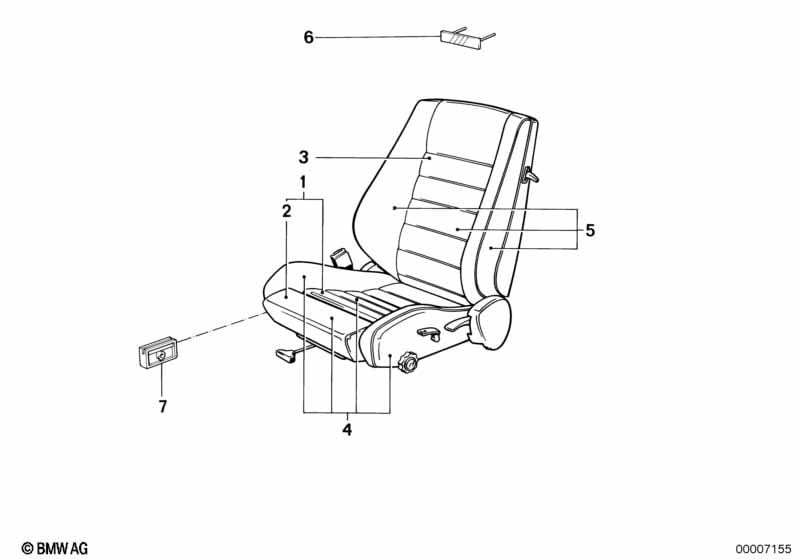

This BMW sportseat spring frame/pad technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Approved as required parts!! | |||||||||
| 01 | Spring frame seat front left | 1 | 03/1986 | 52101945553 | $299.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Spring frame seat front right | 1 | 03/1986 | 52101945554 | $299.26 | ENDED | Shop at ECS Tuning | |||
| 02 | Carrier thigh support | 2 | 52101922270 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring frame backrest front | 2 | 52101923444 | $110.33 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pad seat front | 2 | 52101933390 | $91.86 | Shop at ECS Tuning | |||||
| 05 | Pad seat backrest front | 2 | 52101923907 | $101.05 | Shop at ECS Tuning | |||||
| 07 | Guide thigh support | 4 | 52101940490 | $1.21 | Shop at ECS Tuning | |||||
