Recaro sports seat-recl. seat fitting for BMW 5 Series E28 520i (1987)

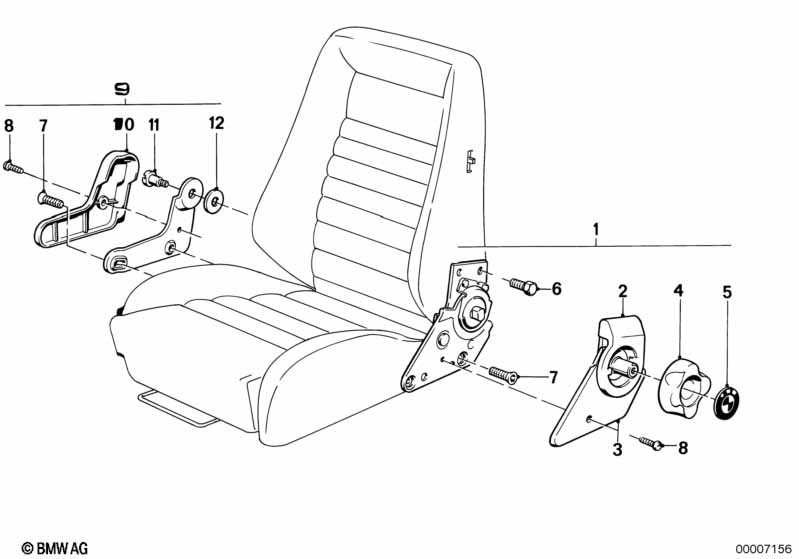

This Recaro sports seat-recl. seat fitting technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 09 | Recl.seat fitting outer right | 1 | 09/1983 | 52101921503 | $17.12 | ENDED | Shop at ECS Tuning | |||
| 09 | Recl.seat fitting outer right | 1 | 09/1983 | 52101921503 | $17.12 | ENDED | Shop at ECS Tuning | |||
| 09 | Recl.seat fitting outer left | 1 | 09/1983 | 52101921504 | $17.12 | ENDED | Shop at ECS Tuning | |||
| 09 | Recl.seat fitting outer left | 1 | 09/1983 | 52101921504 | $17.12 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 10 | Cover | 1 | 09/1983 | 52101864945 | $12.16 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | 1 | 09/1983 | 52101864946 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 10 | Cover | 1 | 09/1983 | 52101864945 | $12.16 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | 1 | 09/1983 | 52101864946 | ENDED | Shop at ECS Tuning | ||||
| 11 | Screw | 2 | 09/1983 | 52101850532 | ENDED | Shop at ECS Tuning | ||||
| 11 | Screw | 2 | 09/1983 | 52101850532 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 2 | 09/1983 | 52101850540 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 2 | 09/1983 | 52101850540 | ENDED | Shop at ECS Tuning | ||||
