BMW sports seat mechanically adjustable for BMW 5 Series E34 525i (1996)

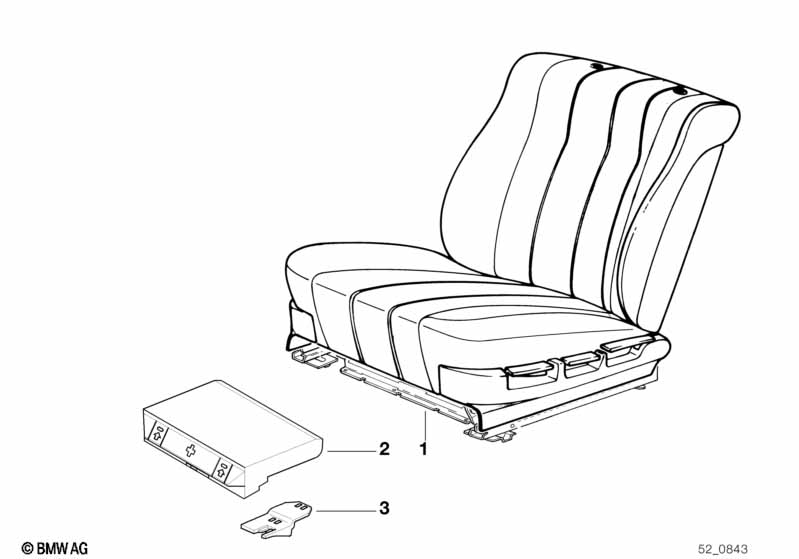

This BMW sports seat mechanically adjustable technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Model with seat heating Model with seat heating Model with seat heating Model with seat heating Model with seat heating |
|||||||||
| UPHOLSTERY LEATHER BUFFALO MODEL WITH HEATED SEAT ALSO FOR VEHICLES WITHOUT SEAT HEATING 0180,0418,0459=anthrazit |
||||||||||
| 01 | Leather sport seat, right | ANTHRAZIT | 1 | 09/1992 | 52109065838 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | ANTHRAZIT | 1 | 09/1992 | 52109065839 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY VINYL MODEL WITH HEATED SEAT ALSO FOR VEHICLES WITHOUT SEAT HEATING 0399,0477=schwarz |
||||||||||
| 01 | Imitation leather sport seat, right | 0477 SCHWARZ | 1 | 09/1992 | 52109065820 | ENDED | Shop at ECS Tuning | |||
| 01 | Imitation leather sport seat, left | 0477 SCHWARZ | 1 | 09/1992 | 52109065821 | ENDED | Shop at ECS Tuning | |||
| 01 | Imitation leather sport seat, right | 0478 ULTRAMARIN | 1 | 09/1992 | 52109065822 | ENDED | Shop at ECS Tuning | |||
| 01 | Imitation leather sport seat, left | 0478 ULTRAMARIN | 1 | 09/1992 | 52109065823 | ENDED | Shop at ECS Tuning | |||
| 01 | Imitation leather sport seat, right | 0479 PERGAMENT | 1 | 09/1992 | 52109065824 | ENDED | Shop at ECS Tuning | |||
| 01 | Imitation leather sport seat, left | 0479 PERGAMENT | 1 | 09/1992 | 52109065825 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BISON MODEL WITH HEATED SEAT ALSO FOR VEHICLES WITHOUT SEAT HEATING 0203,0325,0366=schwarz 0483,0486,0487=silber-grau 0394,0451,0455=silber-grau hell 0395,0452,0456=ultramarin 0396,0453,0457=pergament |
||||||||||
| 01 | Leather sport seat, right | PERGAMENT | 1 | 09/1992 | 52109065826 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | PERGAMENT | 1 | 09/1992 | 52109065827 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | SCHWARZ | 1 | 09/1992 | 52109065830 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | SCHWARZ | 1 | 09/1992 | 52109065831 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | SILBERGRAU HELL | 1 | 09/1992 | 52109065832 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | SILBERGRAU HELL | 1 | 09/1992 | 52109065833 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | ULTRAMARIN | 1 | 09/1992 | 52109065834 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | ULTRAMARIN | 1 | 09/1992 | 52109065835 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | SILBERGRAU | 1 | 09/1992 | 52109065836 | $1367.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Leather sport seat, left | SILBERGRAU | 1 | 09/1992 | 52109065837 | ENDED | Shop at ECS Tuning | |||
| FOR EXECUTIVE EQUIPMENT CLOTH VERSION "MILLPOINT"/LEATHER |
||||||||||
| 01 | Cloth sport seat, left | 0617 GRAU | 1 | 09/1994 | 52109066261 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | 0617 GRAU | 1 | 09/1994 | 52109066262 | ENDED | Shop at ECS Tuning | |||
| BASIC CLOTH VERSION Model with seat heating Also for vehicles without seat heating system |
||||||||||
| 01 | Cloth sport seat, left | 0411 ANTHR.'91 | 1 | 09/1992 | 52109065801 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0412 SILBERGRAU | 1 | 09/1992 | 52109065803 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | 0411 ANTHRA.'91 | 1 | 09/1992 | 52109065804 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0413 ULTRAMARIN | 1 | 09/1992 | 52109065805 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | 0412 SILBERGRAU | 1 | 09/1992 | 52109065806 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0414 PERGAM.'92 | 1 | 09/1992 | 52109065807 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | 0413 ULTRAMARIN | 1 | 09/1992 | 52109065808 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | 0414 PERGAM.'92 | 1 | 09/1992 | 52109065810 | ENDED | Shop at ECS Tuning | |||
| HIGH QUALITY CLOTH VERSION Model with seat heating Also for vehicles without seat heating system |
||||||||||
| 01 | Cloth sport seat, right | 0406 ANTHR.91 | 1 | 09/1992 | 52109065812 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0406 ANTHR.'91 | 1 | 09/1992 | 52109065813 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | 0407 SILBERGRAU | 1 | 09/1992 | 52109065814 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0407 SILBERGRAU | 1 | 09/1992 | 52109065815 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0408 ULTRAMARIN | 1 | 09/1992 | 52109065816 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0408 ULTRAMARIN | 1 | 09/1992 | 52109065817 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | 0409 PERGAM.92 | 1 | 09/1992 | 52109065818 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | 0409 PERGAM.'92 | 1 | 09/1992 | 52109065819 | ENDED | Shop at ECS Tuning | |||
| 02 | First aid kit | 1 | 52101928751 | ENDED | Shop at ECS Tuning | |||||
| 03 | Bracket first aid box | 1 | 52101945440 | $2.61 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
