BMW sports seat frame electrical for BMW 5 Series E34 524td (1991)

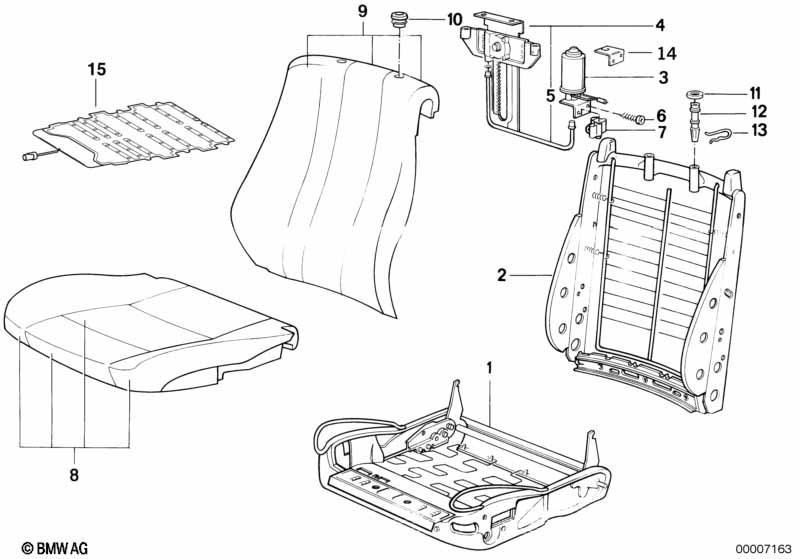

This BMW sports seat frame electrical technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat frame w.actuators | RHW/BOSCH | 2 | 52101964591 | $817.63 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 01 | Seat frame w.actuators | RHW/BOSCH | 1 | 52101964227 | $905.23 | ENDED | Shop at ECS Tuning | |||
| 02 | Backrest frame | 2 | 52101964592 | $149.61 | Shop at ECS Tuning | |||||
| 03 | Actuator, headrest | 2 | 52101379411 | $130.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gearbox head rest support | 2 | 52101964246 | $157.89 | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 04 | Gearbox head rest support | 1 | 52108126164 | $213.72 | Shop at ECS Tuning | |||||
| 05 | Shaft | 2 | 52101889108 | $22.29 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M5X12-Z3-ZN | 6 | 07119906816 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 07 | Potentiome.head rest A.vert.seat adjust | 1 | 61311379094 | $62.85 | ENDED | Shop at ECS Tuning | ||||
| 08 | Pad seat front | 2 | 52108101803 | $142.37 | Shop at ECS Tuning | |||||
| 09 | Pad seat backrest front | 2 | 52108101801 | $156.59 | ENDED | Shop at ECS Tuning | ||||
| 11 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 12 | Guide bush | 4 | 52208132020 | $1.80 | Shop at ECS Tuning | |||||
| 13 | Spring washer | 4 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
| 14 | Bracket | 2 | 52108121728 | $8.93 | ENDED | Shop at ECS Tuning | ||||
