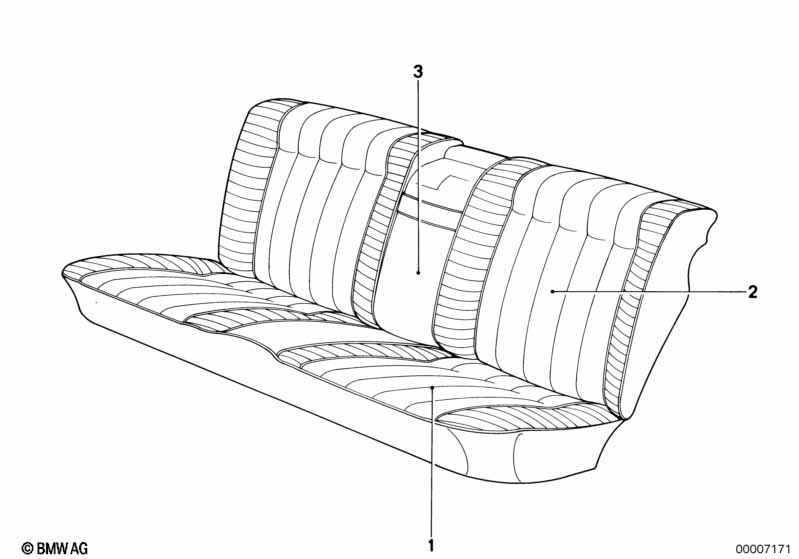

Rear cover for BMW 5 Series E12 530i (1976)
This Rear cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Rear cover Ausführung 541-542-543 |
|||||||||
| REAR SEAT COVER | ||||||||||
| 01 | Seat cover vinyl light-grey rear | 0008 | 1 | 09/1975 | 52201850621 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl nylon-brown rear | 0007 | 1 | 09/1975 | 52201850622 | Shop at ECS Tuning | ||||
| 01 | Seat cover vinyl navy-blue rear | 0006 | 1 | 09/1975 | 52201850623 | $222.08 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover vinyl black rear | 0005 | 1 | 09/1975 | 52201850624 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover vinyl fern-green rear | 0048 | 1 | 09/1975 | 52201863305 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl light grey left | 0008 | 1 | 09/1975 | 52201850669 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl light grey right | 0008 | 1 | 09/1975 | 52201850670 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl nylon brown left | 0007 | 1 | 09/1975 | 52201850671 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl nylon brown right | 0007 | 1 | 09/1975 | 52201850672 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl navy blue left | 0006 | 1 | 09/1975 | 52201850673 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl navy blue right | 0006 | 1 | 09/1975 | 52201850674 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl black left | 0005 | 1 | 09/1975 | 52201850675 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl black right | 0005 | 1 | 09/1975 | 52201850676 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl fern green left | 0048 | 1 | 09/1975 | 52201863337 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest vinyl fern green right | 0048 | 1 | 09/1975 | 52201863338 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover armrest vinyl lightgrey | 0008 | 1 | 09/1975 | 52201850749 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover armrest vinyl tan | 0007 | 1 | 09/1975 | 52201850750 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover armrest vinyl navyblue | 0006 | 1 | 09/1975 | 52201850751 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover armrest vinyl black | 0005 | 1 | 09/1975 | 52201850752 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest cover imitat. leather fern green | 0048 | 1 | 09/1975 | 52201863323 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
