Headrest, rear for BMW 6 Series E24 635CSi (1989)

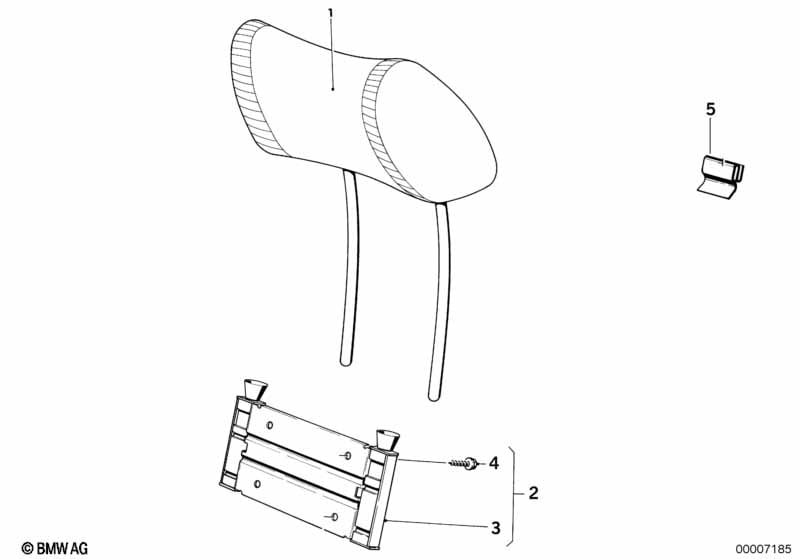

This Headrest, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 621-622-623-624-625 | |||||||||
| 02 | Sleeve | 4 | 52201809818 | $1.12 | Shop at ECS Tuning | |||||
| 02 | Set mounting parts | 1 | 52209057096 | ENDED | Shop at ECS Tuning | |||||
| CONSISTING OF | ||||||||||
| 03 | Spring | 4 | 52201828735 | $0.33 | Shop at ECS Tuning | |||||
| 03 | Holder | 2 | 52201839608 | Shop at ECS Tuning | ||||||
| 03 | Set mounting parts | 2 | 52209057096 | ENDED | Shop at ECS Tuning | |||||
| CONSISTING OF | ||||||||||
| 04 | Hex head screw | ST6,3X19-C-Z2 | 8 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 05 | Spring | 8 | 52201859790 | $1.57 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
