Headrest, rear for BMW 3 Series E30 324td (1991)

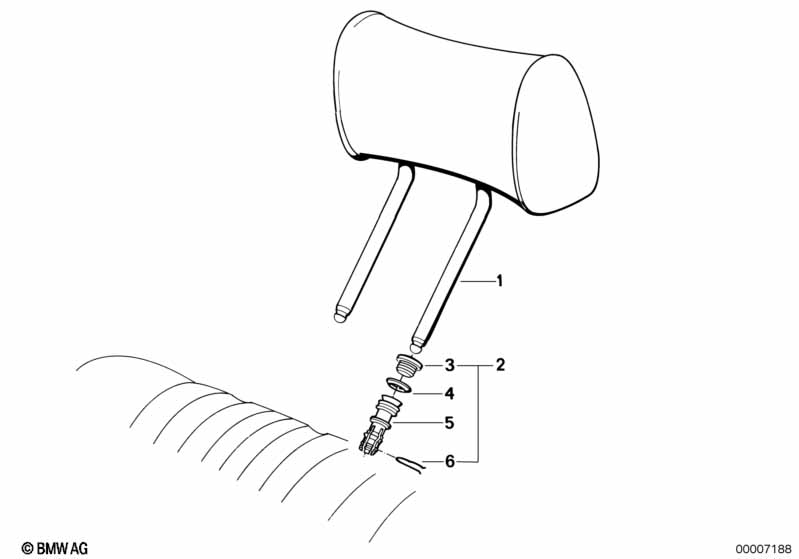

This Headrest, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 310 | |||||||||
| 01 | Headrest leather | 0203/0402SCHWAR | 2 | 52101936278 | $188.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0292/0403SILBER | 2 | 52101979459 | $188.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0295 NATUR | 2 | 52101979473 | $188.60 | ENDED | Shop at ECS Tuning | |||
| 0269/0274/0373 anthrazit, 0270/0275/0374 silber, 0273/0278 natur |
||||||||||
| 01 | Head rest cloth | 0269 ANTHRAZIT | 2 | 52101979461 | $122.76 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth | 0270 SILBER | 2 | 52101979462 | $122.76 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth | 0273/0278 NATUR | 2 | 52101979465 | $122.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Headrest imitation leather | 0166 SCHWARZ | 2 | 52101913640 | $95.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest imitation leather | 0192 NATUR | 2 | 52101979458 | $95.41 | ENDED | Shop at ECS Tuning | |||
| 02 | Set mounting parts headrest rear | 1 | 52209060597 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 04 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 05 | Guide bush | 4 | 52208132020 | $1.80 | Shop at ECS Tuning | |||||
| 06 | Spring washer | 2 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
