Armrest f ski bag for BMW 5 Series E34 525td (1995)

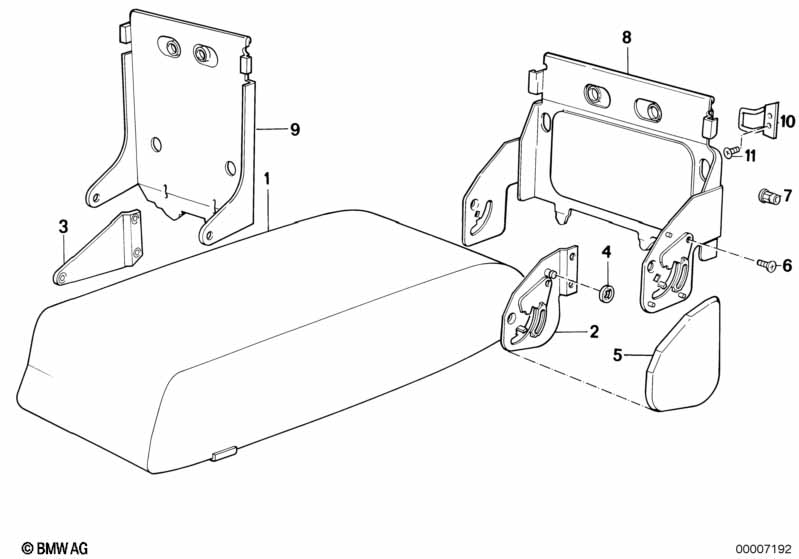

This Armrest f ski bag technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO SKI BAG | |||||||||
| 01 | Armrest vinyl | 0477 SCHWARZ | 1 | 02/1992 | 52208161267 | $407.34 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest vinyl | 0478 ULTRAMARIN | 1 | 02/1992 | 52208161268 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest vinyl | 0479 PERGAMENT | 1 | 02/1992 | 52208161269 | $407.34 | ENDED | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER BISON 0203,0325,0366=schwarz 0483,0486,0487=silber-grau 0394,0451,0455=silber-grau hell 0396/0453/0457=pergament 0395,0452,0456=ultramarin 0397,0454,0458=brasil |
||||||||||
| 01 | Armrest leather | SILBERGRAU-HELL | 1 | 09/1990 | 52208143848 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather | ULTRAMARIN | 1 | 09/1990 | 52208143849 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather | PERGAMENT | 1 | 09/1990 | 52208143850 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather | SILBERGRAU | 1 | 09/1991 | 52208155730 | $641.70 | ENDED | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER BISON 0203,0325=schwarz/0292,0326=silber 0293,0327=indigo/0295,0328=natur 0324,0329=karmesin-rot/0296=cardinal-rot |
||||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208107713 | $407.34 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather | KARMESINROT | 1 | 52208117020 | ENDED | Shop at ECS Tuning | ||||
| 0406,0411=anthrazit / 0409,0414=pergament 0407,0412=silber-grau / 0410,0415=brasil 0408,0413=ultramarin |
||||||||||
| 01 | Armrest cloth | ANTHRAZIT 91 | 1 | 09/1990 | 52208143818 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth | SILBERGRAU | 1 | 09/1990 | 52208143819 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth | ULTRAMARIN | 1 | 09/1990 | 52208143820 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth | PERGAMENT 92 | 1 | 03/1992 | 52208163257 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO 0301=siam-grau/0302=havanna 0180,0459=anthrazit/0362,0460=brasil |
||||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 09/1990 | 52208143870 | $641.70 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
