Seat cover-running meter front/rear for BMW 5 Series E12 530i (1975)

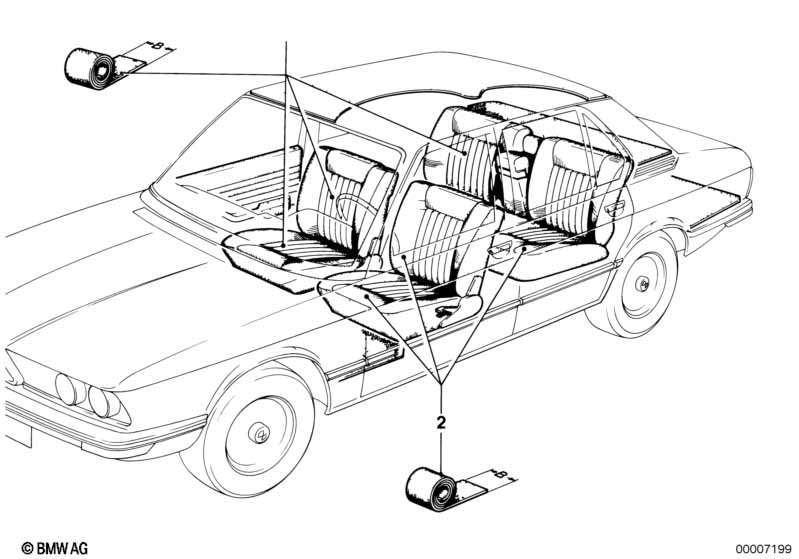

This Seat cover-running meter front/rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upholstery cloth hellgrau | 0011/5392 | X | 09/1975 | 51921821381 | ENDED | Shop at ECS Tuning | |||
| 01 | Upholstery cloth marineblau | 3739 | X | 09/1975 | 51921821382 | ENDED | Shop at ECS Tuning | |||
| 01 | Upholstery cloth sandbeige | 1831 | X | 09/1975 | 51921821383 | ENDED | Shop at ECS Tuning | |||
| 01 | Upholstery cloth schwarz | 9992 | X | 09/1975 | 51921823037 | ENDED | Shop at ECS Tuning | |||
| 02 | Upholstery cloth hellgrau | 0011/5392 | X | 09/1975 | 51921817044 | ENDED | Shop at ECS Tuning | |||
| 02 | Upholstery cloth marineblau | 3739 | X | 09/1975 | 51921817045 | ENDED | Shop at ECS Tuning | |||
| 02 | Upholstery cloth sandbeige | 1831 | X | 09/1975 | 51921822077 | ENDED | Shop at ECS Tuning | |||
| 02 | Upholstery cloth schwarz | 9992 | X | 09/1975 | 51921822084 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
