Seat Spring frame/frame pad rear for BMW 5 Series E28 535i (1987)

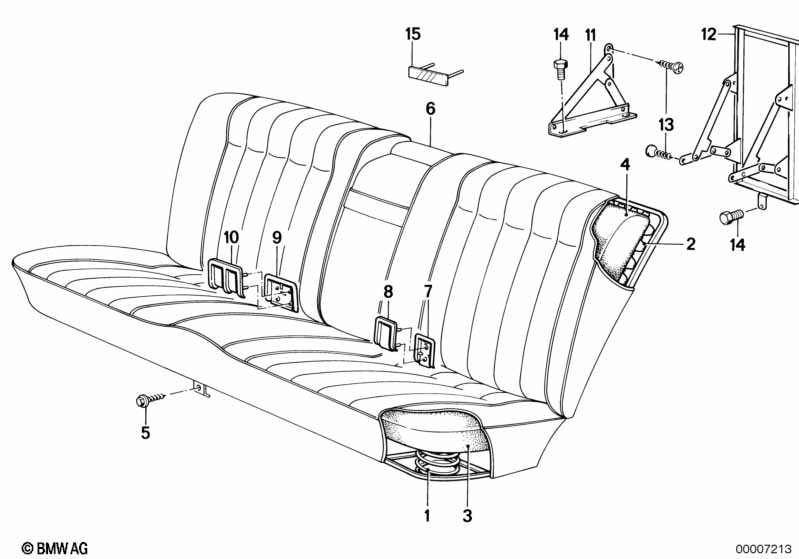

This Seat Spring frame/frame pad rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 544-545-546 | |||||||||
| 01 | Spring frame seat rear | 1 | 52201883057 | $232.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Spring frame backrest rear left | 1 | 52201902857 | $271.19 | ENDED | Shop at ECS Tuning | ||||
| 02 | Spring frame backrest rear right | 1 | 52201902858 | $109.93 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pad seat rear | 1 | 52201902620 | $168.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pad left backrest | 1 | 09/1984 | 52201930917 | $82.63 | Shop at ECS Tuning | ||||
| 04 | Pad right backrest | 1 | 09/1984 | 52201930918 | $82.95 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST6,3X25-C-Z2 | 1 | 07119916973 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 06 | End piece non covered | 1 | 52201831396 | $13.05 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cup | 3 | 09/1984 | 52201914499 | $6.21 | ENDED | Shop at ECS Tuning | |||
| 08 | Lower belt catch support | ANTHRAZIT | 3 | 09/1984 | 52201906752 | $3.47 | ENDED | Shop at ECS Tuning | ||
| 08 | Lower belt catch support | NUTRIA | 3 | 09/1984 | 52201924571 | $3.35 | ENDED | Shop at ECS Tuning | ||
| 08 | Lower belt catch support | PACIFIC | 3 | 09/1984 | 52201930919 | $3.53 | ENDED | Shop at ECS Tuning | ||
| 08 | Lower belt catch support | PERLBEIGE | 3 | 09/1984 | 52201930920 | $3.53 | ENDED | Shop at ECS Tuning | ||
| 08 | Lower belt catch support | PINIENGRUEN | 3 | 09/1984 | 52201930921 | $3.35 | ENDED | Shop at ECS Tuning | ||
| 08 | Lower belt catch support | LAMA | 3 | 09/1984 | 52201930922 | $3.35 | ENDED | Shop at ECS Tuning | ||
| 12 | Scissors-type bracket | 1 | 52201902572 | $194.18 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X18 | 4 | 52101817572 | $0.26 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
