Rear seat parts for BMW 3 Series E30 M3 (1990)

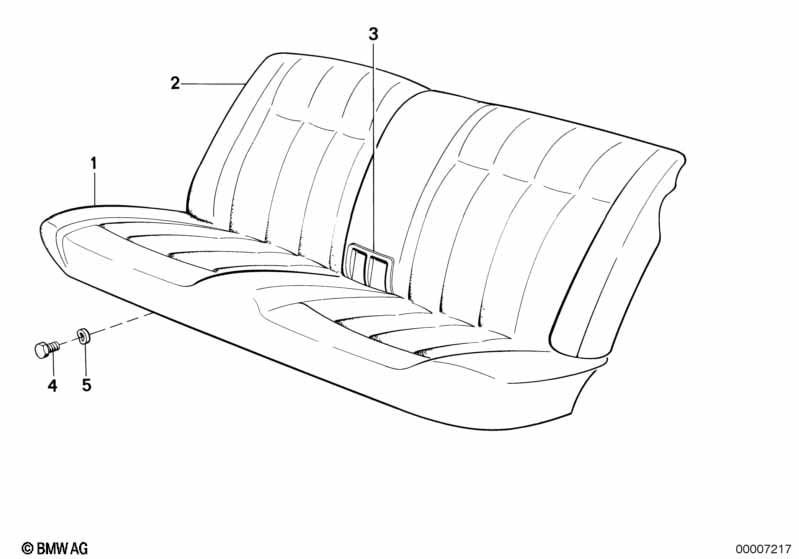

This Rear seat parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 310 | |||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Foam plastic seat | 1 | 52201940243 | $374.98 | ENDED | Shop at ECS Tuning | ||||
| 02 | Foam plastic backrest | 1 | 52201940245 | $271.19 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lower belt catch support | ANTHRAZIT | 1 | 52201941338 | $4.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | 7/16"X12,5 | 2 | 72111820611 | $1.20 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | 7/16" 20MM | 2 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 05 | Wave washer | B12-ZN | 2 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
