Rear seat 2-door/single parts for BMW 7 Series E32 740iL (1994)

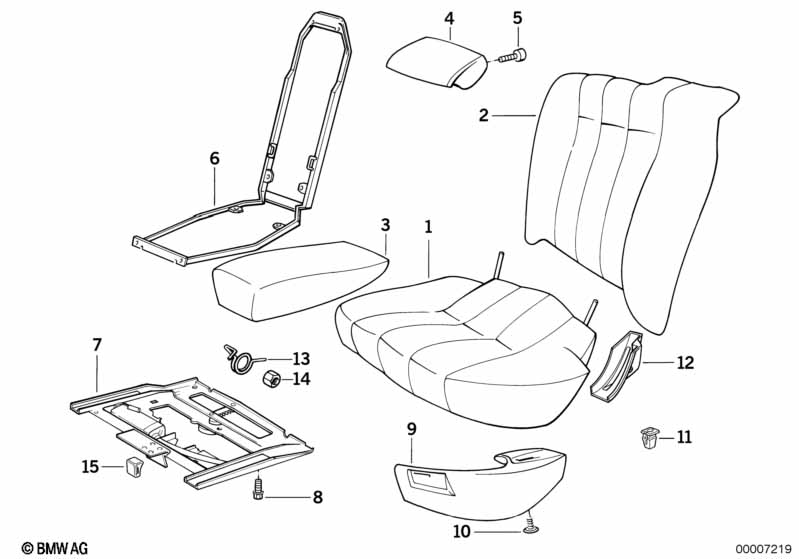

This Rear seat 2-door/single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 750 Ausführung 751 Ausführung 752 ONLY APPLIES TO ADJUSTABLE REAR SEAT |
|||||||||
| 01 | Seat pan with pad left | 1 | 52201974301 | $583.11 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat pan with pad right | 1 | 52201974302 | $549.32 | ENDED | Shop at ECS Tuning | ||||
| 02 | Backrest frame with pad left | 1 | 52201938915 | $549.32 | ENDED | Shop at ECS Tuning | ||||
| 02 | Backrest frame with pad right | 1 | 52201938916 | $574.74 | ENDED | Shop at ECS Tuning | ||||
| 02 | Backrest frame with pad left | 1 | 52208109259 | ENDED | Shop at ECS Tuning | |||||
| 02 | Backrest frame with pad right | 1 | 52208109260 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with High Line |
=Yes |
|||||||||
| 02 | Backrest frame with pad left | 1 | 52208114459 | $828.63 | ENDED | Shop at ECS Tuning | ||||
| 02 | Backrest frame with pad right | 1 | 52208114460 | $828.63 | ENDED | Shop at ECS Tuning | ||||
| 03 | Upholstery center part | 1 | 12/1990 | 52208127455 | $158.47 | ENDED | Shop at ECS Tuning | |||
| 04 | Upholstery backrest center part | 1 | 52201938593 | $56.92 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M6X12 | 2 | 07119920069 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Frame | 1 | 12/1990 | 52208127437 | $83.14 | ENDED | Shop at ECS Tuning | |||
| 07 | Seat adjusting electr.rear left | 1 | 09/1989 | 52208114621 | $586.27 | ENDED | Shop at ECS Tuning | |||
| 07 | Seat adjusting electr.rear right | 1 | 09/1989 | 52208114622 | $586.27 | ENDED | Shop at ECS Tuning | |||
| 08 | Lock bolt | 4 | 51321928275 | $0.41 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
