BMW sports seat frame mechanical for BMW 5 Series E34 525ix (1996)

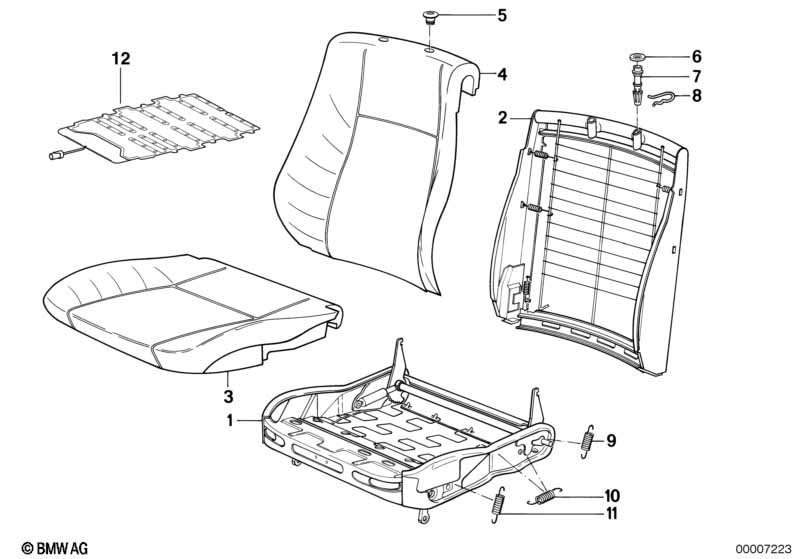

This BMW sports seat frame mechanical technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 01 | Seat frame | 1 | 09/1992 | 52108155445 | $471.25 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Seat frame | 1 | 09/1992 | 52108155446 | $372.74 | ENDED | Shop at ECS Tuning | |||
| 02 | Backrest frame | 2 | 52101964592 | $149.61 | Shop at ECS Tuning | |||||
| 03 | Pad seat front | 2 | 52108101803 | $142.37 | Shop at ECS Tuning | |||||
| 04 | Pad seat backrest front | 2 | 52108101801 | $156.59 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 07 | Guide bush | 4 | 52208132020 | $1.80 | Shop at ECS Tuning | |||||
| 08 | Spring washer | 4 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
| 09 | Spring | 4 | 52101964985 | $0.54 | ENDED | Shop at ECS Tuning | ||||
| 10 | Spring | 4 | 52101964986 | $0.54 | Shop at ECS Tuning | |||||
| 11 | Spring | 4 | 52101964987 | $0.43 | Shop at ECS Tuning | |||||
| 12 | Sensor mat f co-driver's seat identif. | 1 | 09/1993 | 65778367598 | $124.53 | Shop at ECS Tuning | ||||
