BMW sportseat headrest for BMW 7 Series E32 730iL (1994)

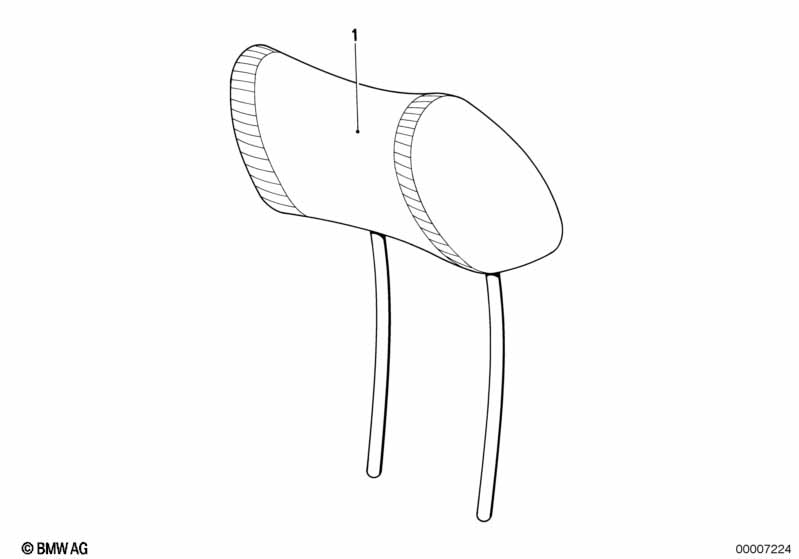

This BMW sportseat headrest technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 750 | |||||||||
| HIGH QUALITY CLOTH VERSION 0422,0444,0446=anthrazit 0423,0447=silber-grau 0424,0448=ultramarin 0425,0449=pergament |
||||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 05/1993 | 52108171208 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | SILBERGRAU | 2 | 05/1993 | 52108171209 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | ULTRAMARIN | 2 | 05/1993 | 52108171210 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | PERGAMENT | 2 | 05/1993 | 52108171211 | $111.89 | ENDED | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER BUFFALO 0240,0297,0301,0308=siam-grau 0241,0298,0302,0309=havanna 0180,0442,0459=anthrazit 0362,0443,0460=brasil |
||||||||||
| 01 | Headrest leather | ANTHRAZIT | 2 | 05/1993 | 52108171228 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| BASIC CLOTH VERSION 0406,0411,0427=anthrazit 0407,0412,0428=silber-grau 0408,0413,0429=ultramarin 0409,0414,0430=pergament |
||||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 05/1993 | 52108171199 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | SILBERGRAU | 2 | 05/1993 | 52108171200 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | ULTRAMARIN | 2 | 05/1993 | 52108171201 | $111.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | PERGAMENT | 2 | 05/1993 | 52108171202 | $111.89 | ENDED | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER WALKNAPPA 0226,0232=schwarz 0484,0485=silber-grau 0436,0438=silber-grau hell 0433,0439=ultramarin 0434,0440=pergament 0437=pergament hell |
||||||||||
| 01 | Headrest leather | PERGAMENT | 2 | 05/1993 | 52108171213 | $159.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | PERGAMENT HELL | 2 | 05/1993 | 52108171214 | $159.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | SCHWARZ | 2 | 05/1993 | 52108171216 | $159.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | SILBERGRAU | 2 | 05/1993 | 52108171217 | $159.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | SILBERGRAU HELL | 2 | 05/1993 | 52108171218 | $159.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | ULTRAMARIN | 2 | 05/1993 | 52108171219 | $159.59 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
