Rear cover for BMW 8 Series E31 850Ci (1992)

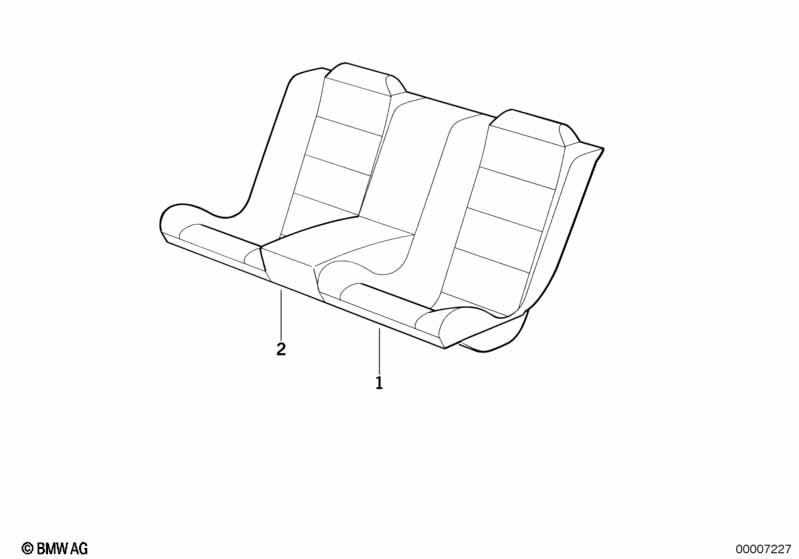

This Rear cover technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 800 | |||||||||
| UPHOLSTERY LEATHER WALKNAPPA | ||||||||||
| 01 | Seat cover leather | 0226 SCHWARZ | 2 | 11/1991 | 09/1992 | 52208160653 | $1355.94 | ENDED | Shop at ECS Tuning | |
| 01 | Seat cover leather | 0353/03564SI-HE | 2 | 11/1991 | 09/1992 | 52208160655 | $1355.94 | ENDED | Shop at ECS Tuning | |
| 01 | Seat cover leather | 0355 ULTRAMARIN | 2 | 11/1991 | 09/1992 | 52208160656 | $1355.94 | ENDED | Shop at ECS Tuning | |
| 01 | Seat cover leather | 0356/0357 PERGA | 2 | 11/1991 | 09/1992 | 52208160657 | $1355.94 | ENDED | Shop at ECS Tuning | |
| ONLY APPLIES TO COLOR-LINE UPHOLSTERY LEATHER WALKNAPPA |
||||||||||
| 01 | Seat cover leather | 0488 BARBADOSGR | 2 | 11/1991 | 09/1992 | 52208160660 | $1355.94 | ENDED | Shop at ECS Tuning | |
| 01 | Seat cover leather | 0489 TOBAGOBLAU | 2 | 11/1991 | 09/1992 | 52208160661 | $1355.94 | ENDED | Shop at ECS Tuning | |
| 01 | Seat cover leather | 0490 CALYPSOROT | 2 | 11/1991 | 09/1992 | 52208160662 | $1355.94 | ENDED | Shop at ECS Tuning | |
| For vehicles with Sports seats, front UPHOLSTERY LEATHER WALKNAPPA |
=Yes |
|||||||||
| 01 | Seat cover leather | 0226 SCHWARZ | 2 | 09/1992 | 52208124855 | $940.23 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0353/0354 SI.GR | 2 | 09/1992 | 52208124857 | $940.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0355 ULTRMARIN | 2 | 09/1992 | 52208124858 | $940.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0356/0357 PERGA | 2 | 09/1992 | 52208124859 | $940.23 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seats, front only applies to Color-Line 0488barbados- grün 0489 tobago-blau 0490 calypso-rot UPHOLSTERY LEATHER WALKNAPPA |
=Yes |
|||||||||
| 01 | Seat cover leather | 0488 BARBADOSGR | 2 | 09/1992 | 52208160666 | $1355.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0489 TOBAGOBLAU | 2 | 09/1992 | 52208160667 | $1355.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0490 CALYPSOROT | 2 | 09/1992 | 52208160668 | $1355.94 | ENDED | Shop at ECS Tuning | ||
| UPHOLSTERY LEATHER WALKNAPPA | ||||||||||
| 02 | Armrest leather | 0226 SCHWARZ | 1 | 09/1992 | 52209059781 | $339.26 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | 0355 ULTRAMARIN | 1 | 09/1992 | 52209059783 | $339.26 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | 0356/0357 PERG. | 1 | 09/1992 | 52209059784 | $339.26 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | 0353/0354 SI.GR | 1 | 09/1992 | 52209060668 | $339.26 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
