Cent.armr. rear/trunkthrough poss. for BMW 5 Series E34 535i (1992)

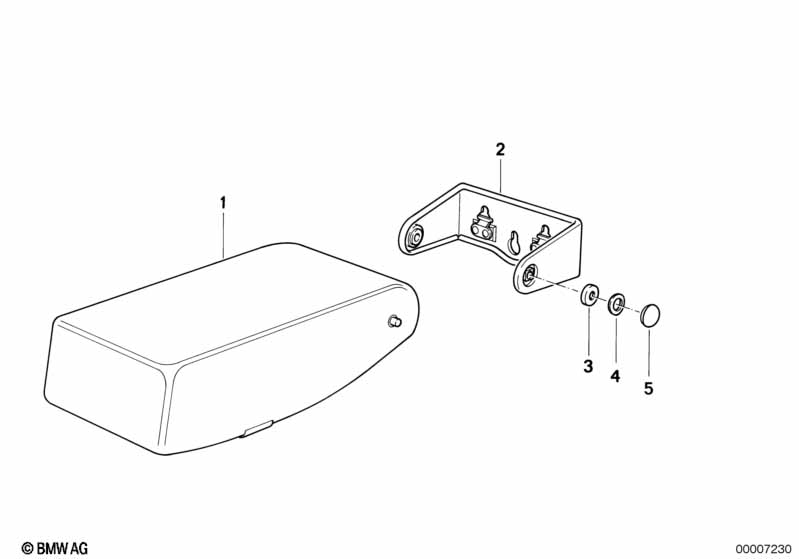

This Cent.armr. rear/trunkthrough poss. technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO THROUGH-LOADING FACILITY | |||||||||
| UPHOLSTERY LEATHER BISON | ||||||||||
| 01 | Armrest leather | 0203 SCHWARZ | 1 | 52208110862 | $641.70 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather | 0324 KARMES.ROT | 1 | 52208181315 | ENDED | Shop at ECS Tuning | ||||
| UPHOLSTERY LEATHER BISON 0203/0325/0366 schwarz, 0483/0486/0487 silber-grau, 0394/0451/0455 silber-grau hell, 0395/0452/0456 ultramarin, 0396/0453/0457 pergament, 0397/0454/0458 brasil |
||||||||||
| 01 | Armrest leather | SILBERGRAU-HELL | 1 | 09/1990 | 52208148135 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather | ULTRAMARIN | 1 | 09/1990 | 52208148136 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather | PERGAMENT | 1 | 09/1990 | 52208148137 | $641.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest leather | SILBERGRAU | 1 | 09/1991 | 52208155745 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO 0180/0459=anthrazit, 0362/0460=brasil |
||||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 09/1990 | 52208148157 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY CLOTH | ||||||||||
| 01 | Armrest cloth | 0406/0411 ANTHR | 1 | 09/1990 | 52208148104 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth | 0407/0412 SILBE | 1 | 09/1990 | 52208148105 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth | 0408/0413 ULTRA | 1 | 09/1990 | 52208148106 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth | 0414/0409PERGAM | 1 | 03/1992 | 52208163278 | $407.34 | ENDED | Shop at ECS Tuning | ||
| UPHOLSTERY VINYL | ||||||||||
| 01 | Armrest vinyl | 0477 SCHWARZ | 1 | 02/1992 | 52208161334 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest vinyl | 0478 ULTRAMARIN | 1 | 02/1992 | 52208161335 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest vinyl | 0479 PERGAMENT | 1 | 02/1992 | 52208161336 | ENDED | Shop at ECS Tuning | |||
| 02 | Holder | 1 | 52208107339 | $15.18 | Shop at ECS Tuning | |||||
| 03 | Intermediate piece | 2 | 52208107499 | $0.50 | Shop at ECS Tuning | |||||
| 04 | Wave washer | 2 | 52208110737 | $0.25 | Shop at ECS Tuning | |||||
| 05 | Fixing clamp | 2 | 52208107340 | $0.45 | Shop at ECS Tuning | |||||
