BMW sportseat headrest for BMW 8 Series E31 850Ci (1992)

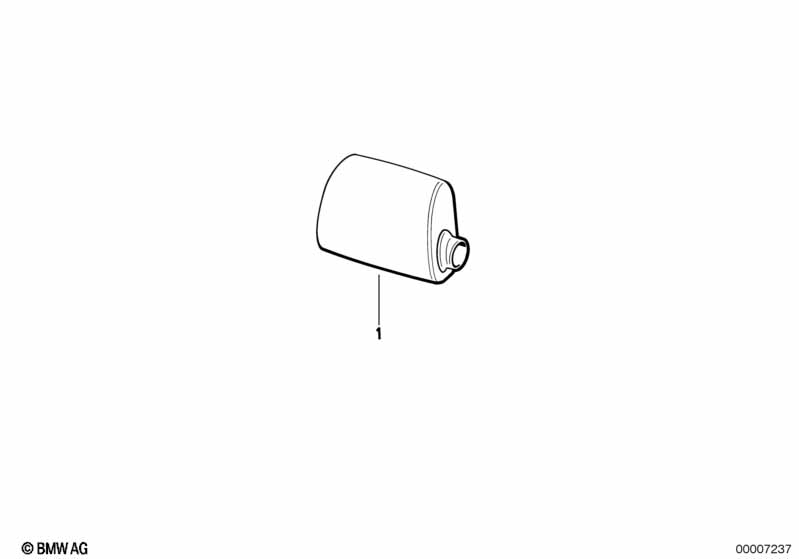

This BMW sportseat headrest technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 800 | |||||||||
| UPHOLSTERY LEATHER WALKNAPPA | ||||||||||
| 01 | headrest leather left | 0226 SCHWARZ | 1 | 52108118537 | $314.71 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | 0226 SCHWARZ | 1 | 52108118538 | $314.71 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather left | 0353/0354 SI.GR | 1 | 52108118541 | $314.71 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | 0353/0354 SI.GR | 1 | 52108118542 | $314.71 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather left | 0355 ULTRAMARIN | 1 | 52108118543 | $204.23 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | 0355 ULTRAMARIN | 1 | 52108118544 | $204.23 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather left | 0356/0357 PERGA | 1 | 52108118545 | $314.71 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | 0356/0357 PERGA | 1 | 52108118546 | $314.71 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
