BMW sportseat seat panel rear for BMW 8 Series E31 840i (1996)

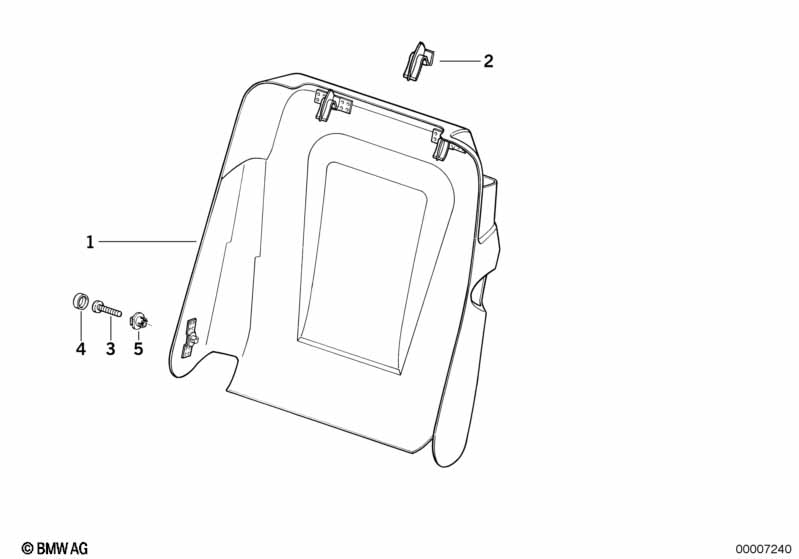

This BMW sportseat seat panel rear technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 800 | |||||||||
| 01 | Rear wall seat left | SCHWARZ | 1 | 52108134969 | $194.67 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat right | SCHWARZ | 1 | 52108134970 | $194.67 | Shop at ECS Tuning | ||||
| 01 | Rear wall seat left | SILBERGR.DKL | 1 | 52108134971 | $194.67 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat right | SILBERGR.DKL | 1 | 52108134972 | $212.04 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat left | ULTRAMARIN | 1 | 52108134973 | $212.04 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat right | ULTRAMARIN | 1 | 52108134974 | $212.04 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat left | PERGAM.DKL | 1 | 52108134975 | $194.67 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat right | PERGAM.DKL | 1 | 52108134976 | $194.67 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat left | BRASIL | 1 | 52108134977 | $212.04 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear wall seat right | BRASIL | 1 | 52108134978 | $212.04 | ENDED | Shop at ECS Tuning | |||
| 02 | Hook | 2 | 52108118074 | $3.68 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 52108118076 | $2.66 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
