Seat, front, head restraint for BMW 3 Series E36 325tds (1998)

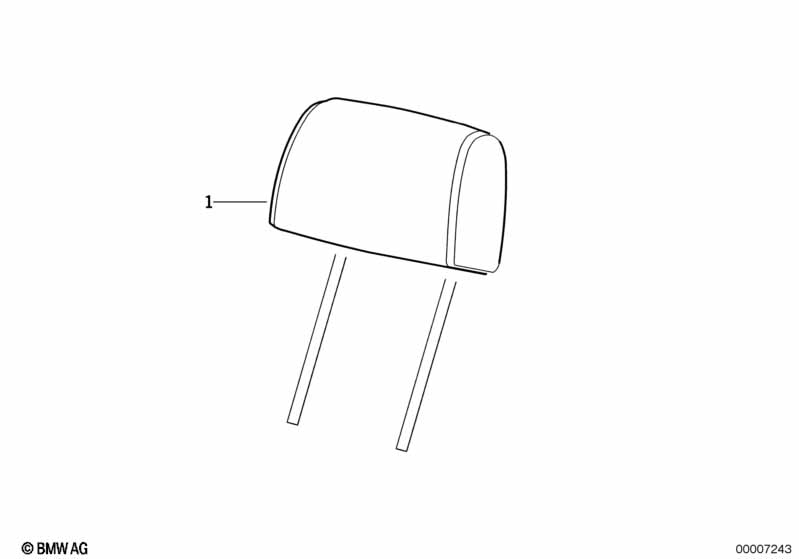

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| UPHOLSTERY LEATHER MONTANA | ||||||||||
| 01 | Headrest leather | 0514 SCHWARZ | 2 | 09/1993 | 52108166154 | $162.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 01 | Headrest imitation leather | 0521 BEIGE | 2 | 09/1993 | 52108166268 | $111.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest imitation leather | 0477 SCHWARZ | 2 | 09/1993 | 52108207722 | $111.71 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Head rest cloth | D6AT ANTHRAZIT | 2 | 09/1994 | 52108201834 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6TT GRAU | 2 | 09/1994 | 52108201835 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6GD KLASS.ROT | 2 | 09/1994 | 52108201836 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6TK TUERKIS | 2 | 09/1994 | 52108201837 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6KU KOENIGBLAU | 2 | 09/1997 | 52108220615 | $132.99 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6ME ASCOTGRUEN | 2 | 09/1997 | 52108233188 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 01 | Head rest cloth | 0546 ANTHRAZIT | 2 | 09/1993 | 52108180224 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0547 HELLGRAU | 2 | 09/1993 | 52108180225 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0548 BEIGE HELL | 2 | 09/1993 | 52108180226 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0549 BLAUVIOL.H | 2 | 09/1993 | 52108180227 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0546 ANTHRAZIT | 2 | 01/1994 | 52108180224 | $122.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 01 | Headrest leather | 0514 SCHWARZ | 2 | 52108166154 | $162.76 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0515 BEIGE | 2 | 09/1993 | 52108166155 | $182.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0516 SAFRANGELB | 2 | 09/1993 | 52108166156 | $182.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0517 BLAUVIOL. | 2 | 09/1993 | 52108166157 | $188.60 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0595 HELLGRAU | 2 | 09/1993 | 52108180156 | $162.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana Soft Special series, Exclusive Edition |
P8=Yes |
|||||||||
| 01 | Headrest leather | P8TD TANINROT | 2 | 02/1997 | 52108231515 | $158.47 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | P8SK PAST.GRUEN | 2 | 02/1997 | 52108231516 | $158.47 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 01 | Head rest cloth | 0503 ANTHRAZIT | 2 | 09/1993 | 52108180237 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0504 HELLGRAU | 2 | 09/1993 | 52108180238 | $111.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0505 BEIGE | 2 | 09/1993 | 52108180239 | $122.76 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
