Seat, front, head restraint, Sport seat for BMW 3 Series E36 325tds (1999)

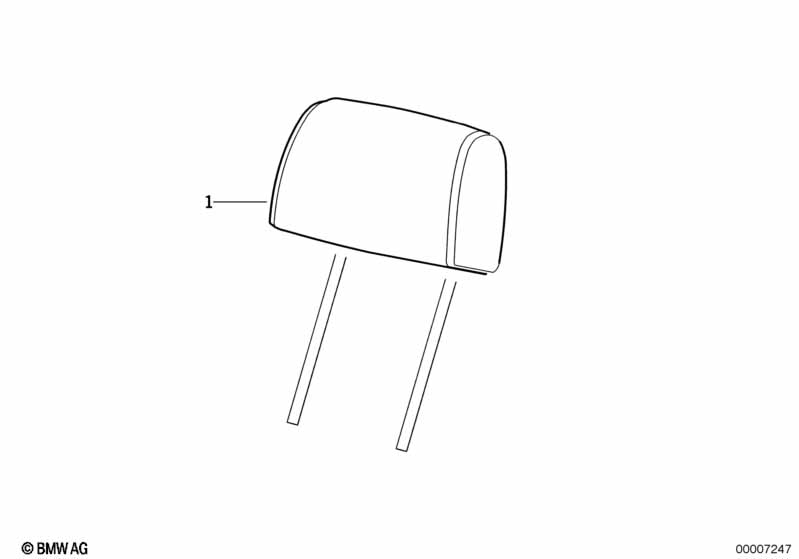

This Seat, front, head restraint, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Head rest cloth | D6AT ANTHRAZIT | 2 | 09/1994 | 52108201834 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6TT GRAU | 2 | 09/1994 | 52108201835 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6GD KLASS.ROT | 2 | 09/1994 | 52108201836 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6TK TUERKIS | 2 | 09/1994 | 52108201837 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6KU KOENIGBLAU | 2 | 09/1997 | 52108220615 | $132.99 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6ME ASCOTGRUEN | 2 | 09/1997 | 52108233188 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 01 | Headrest imitation leather | 0477 SCHWARZ | 2 | 05/1993 | 52108171363 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest imitation leather | 0521 BEIGE | 2 | 09/1993 | 52108166268 | $111.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Boa Boa" |
E7=Yes |
|||||||||
| 01 | Head rest cloth | B4AT ,E7AV,E7ZR | 2 | 09/1997 | 52102259193 | $122.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Nappa Casual leather |
P7=Yes |
|||||||||
| 01 | Headrest leather | 0518,0629 SCHW | 2 | 09/1993 | 52108173010 | $162.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0519 HELLGRAU | 2 | 09/1993 | 52108173011 | $162.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0520 KLASSIKROT | 2 | 09/1993 | 52108173012 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0620 BEIGE | 2 | 09/1993 | 52108180337 | $162.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0645 SAFRANGELB | 2 | 09/1993 | 52108195435 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0646 BLAUVIOLET | 2 | 09/1993 | 52108195436 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Nappa Casual leather Special series, Exclusive Edition |
P7=Yes |
|||||||||
| 01 | Headrest leather | P7TD TANINROT | 2 | 02/1997 | 52108231519 | $160.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | P7SK PAST.GRUEN | 2 | 02/1997 | 52108231520 | $160.70 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Nappa Casual leather Bicolor |
P7=Yes |
|||||||||
| 01 | Headrest leather | P7ST STAHLBLAU | 2 | 09/1998 | 52108256779 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | P7SX MEERGRUEN | 2 | 09/1998 | 52108256780 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather flat textile |
C1=Yes |
|||||||||
| 01 | Head rest cloth | 0511 SCHWARZ | 2 | 09/1993 | 52108173006 | $146.20 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0512 TUERKIS | 2 | 09/1993 | 52108173007 | $146.20 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0513 KLASSIKROT | 2 | 09/1993 | 52108173008 | $146.20 | ENDED, +core | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
