Front seat pad/rear panel/cap for BMW 3 Series E36 318ti (1999)

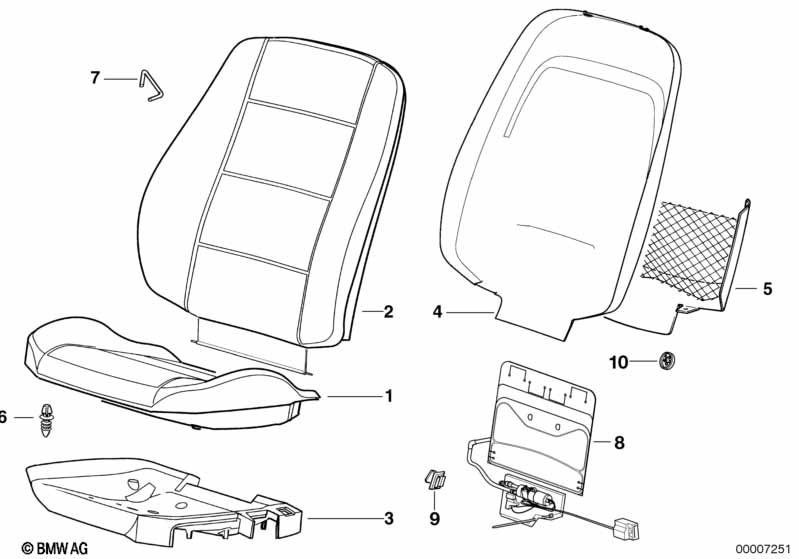

This Front seat pad/rear panel/cap technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pad seat front | 2 | 52101977959 | $113.89 | ENDED | Shop at ECS Tuning | ||||
| 01 | Pad, lower seat, front | 2 | 52108187247 | $53.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pad seat backrest front | 2 | 01/1998 | 52108242616 | $125.27 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat pan left | SCHWARZ | 1 | 52108130667 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat pan, right | SCHWARZ | 1 | 52108130668 | $75.73 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat pan left | SANDGRAU | 1 | 52108187853 | $66.97 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat pan, right | SANDGRAU | 1 | 52108187854 | $66.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Rear panel | SCHWARZ | 2 | 52108188078 | $106.69 | ENDED | Shop at ECS Tuning | |||
| 04 | Rear panel | SANDGRAU | 2 | 52108188079 | $109.23 | ENDED | Shop at ECS Tuning | |||
| SPECIAL SERIES LUXURY COMPACT | ||||||||||
| 04 | Rear panel | SCHWARZ | 2 | 10/1994 | 52108188078 | $106.69 | ENDED | Shop at ECS Tuning | ||
| 05 | Luggage net | SCHWARZ | 2 | 52108202403 | $59.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Luggage net | SANDGRAU | 2 | 52108202404 | $59.29 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Clamp | X | 52108130678 | $0.23 | Shop at ECS Tuning | |||||
| 07 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Lumbar support | 2 | 52108202414 | $256.61 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket, plug connection white | 2 | 61131378997 | $0.87 | Shop at ECS Tuning | |||||
| 10 | Axial securing clip | 15X5,7MM | X | 07149158226 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
