BMW repair sports seat for BMW 5 Series E34 525tds (1996)

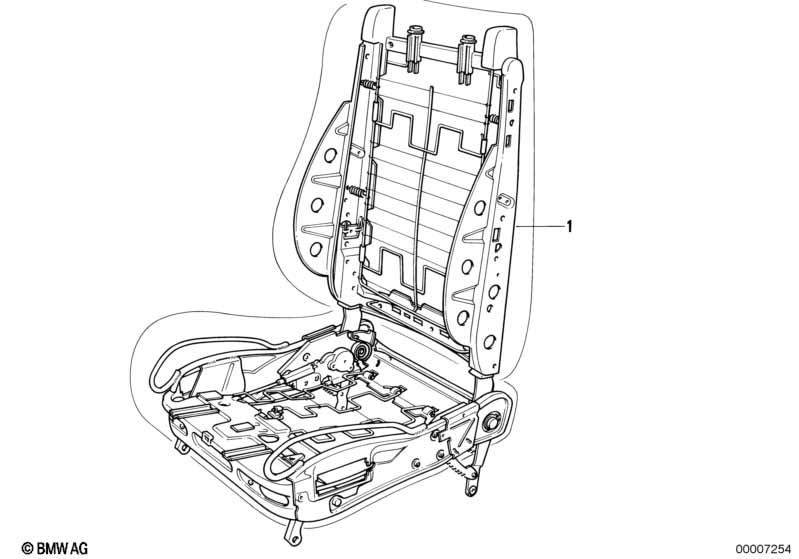

This BMW repair sports seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair seat | ELEKTRISCH | 2 | 52108101800 | $1874.88 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Repair seat left | MANUELL | 1 | 52108110195 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pad seat backrest front | 2 | 52108101801 | $156.59 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH SEAT RAIL HEAD REST SUPPORT COLOR-DEPENDED PARTS |
||||||||||
| -- | Pad seat front | 2 | 52108101803 | $142.37 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH SEAT RAIL HEAD REST SUPPORT COLOR-DEPENDED PARTS |
||||||||||
| 01 | Repair seat right | MANUELL | 1 | 52108110196 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pad seat backrest front | 2 | 52108101801 | $156.59 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH SEAT RAIL HEAD REST SUPPORT COLOR-DEPENDED PARTS |
||||||||||
| -- | Pad seat front | 2 | 52108101803 | $142.37 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH SEAT RAIL HEAD REST SUPPORT COLOR-DEPENDED PARTS |
||||||||||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 01 | Repair seat | ELEKTRISCH | 1 | 52108101802 | $2332.44 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Pad seat backrest front | 2 | 52108101801 | $156.59 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH SEAT RAIL HEAD REST SUPPORT COLOR-DEPENDED PARTS |
||||||||||
| -- | Pad seat front | 2 | 52108101803 | $142.37 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH SEAT RAIL HEAD REST SUPPORT COLOR-DEPENDED PARTS |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
