Seat rear, upholstery & cover base seat for BMW 3 Series E36 320i (1995)

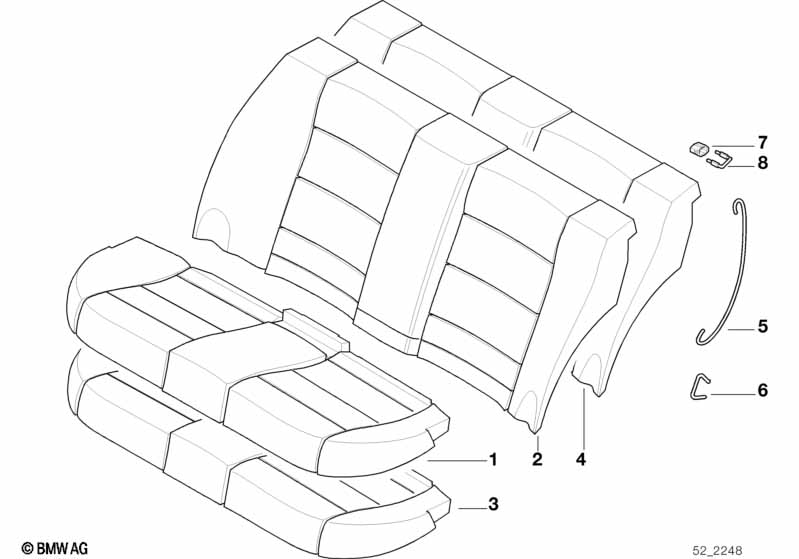

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE Refer to "Help - abbreviations" in EPC REFER TO ETK |
|||||||||
| 01 | Seat cover cloth | 0503 ANTHRAZIT | 1 | 01/1994 | 52208180345 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0504 GRAU | 1 | 01/1994 | 52208180346 | $354.25 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0505 BEIGE | 1 | 01/1994 | 52208180347 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0546 ANTHRAZIT | 1 | 01/1994 | 52208180397 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0547 HELLGRAU | 1 | 01/1994 | 52208180398 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0548 BEIGE HELL | 1 | 01/1994 | 52208180399 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0549 BLAUVIOL.H | 1 | 01/1994 | 52208180400 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| INDIVIDUAL SERIES 07/93 WITH SYNTHETIC STRIP BARBADOS |
||||||||||
| 01 | Seat cover | 0465 ANTHRAZIT | 1 | 52209066692 | $383.90 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER MONTANA | ||||||||||
| 01 | Seat cover leather | 0514 SCHWARZ | 1 | 01/1994 | 52208180434 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0515 BEIGE | 1 | 01/1994 | 52208180435 | $760.40 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0517 BLAUVIOLET | 1 | 01/1994 | 52208180436 | $783.09 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0516 SAFRANGELB | 1 | 01/1994 | 52208180437 | $906.75 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0595 HELLGRAU | 1 | 01/1994 | 52208180438 | $760.40 | ENDED | Shop at ECS Tuning | ||
| INDIVIDUAL SERIES 95 HONGKONG | ||||||||||
| 01 | Seat cover leather | LOTOSWEIß | 1 | 52202421245 | $898.38 | ENDED | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 05/93 WITH SYNTHETIC STRIP SANTORINBLAU |
||||||||||
| 01 | Seat cover cloth | 0465 ANTHRAZIT | 1 | 52202272311 | $363.82 | ENDED | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 07/93 WITH SYNTHETIC STRIP AMETHYST |
||||||||||
| 01 | Seat cover | 0465 ANTHRAZIT | 1 | 52209066693 | $383.90 | ENDED | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 94 CLASS II | ||||||||||
| 01 | Seat cover cloth | 0470 ANTHRAZIT | 1 | 52202264125 | $300.20 | ENDED | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 95 HERBSTPAKET | ||||||||||
| 01 | Cloth/leather seat cover | FLIEDER/VIOLETT | 1 | 52202422257 | $725.40 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Cloth/leather seat cover | SCHWARZ/BLAU | 1 | 52202422274 | $725.40 | ENDED, +core | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 96 CLASSIC | ||||||||||
| 01 | Seat cover leather | L9CW CREMEWEIß | 1 | 52202494551 | $898.38 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Seat cover leather | M6AT ANTHRAZIT | 1 | 52202494552 | $898.38 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with National version japan INDIVIDUAL SERIES 05/93 |
L807A=Yes |
|||||||||
| 01 | Seat cover leather | 0774 MAULBEERE | 1 | 52202260123 | $898.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0775 BARBADOS | 1 | 52202260124 | $898.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | 0776 AMETHYST | 1 | 52202260125 | $898.38 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Buffalo leather, extended UPHOLSTERY LEATHER BUFFALO |
M7=Yes |
|||||||||
| 01 | Seat cover leather | M7AT ANTHRAZIT | 1 | 52202264926 | $750.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Seat cover cloth | D6AT ANTHRAZIT | 1 | 09/1994 | 52208203543 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6TT GRAU | 1 | 09/1994 | 52208203544 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6GD KLASS.ROT | 1 | 09/1994 | 52208203545 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | D6TK TUERKIS | 1 | 09/1994 | 52208203546 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 01 | Seat cover vinyl | 0521 BEIGE | 1 | 09/1993 | 52208180348 | $354.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover vinyl | 0477 SCHWARZ | 1 | 09/1993 | 52208207710 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with National version Australia UPHOLSTERY LEATHER MONTANA MODEL SOFT only applies to production for South Africa |
L810A=Yes |
|||||||||
| 01 | Seat cover leather | P8TT GRAU | 1 | 08/1994 | 52208208051 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | P8TK TUERKIS | 1 | 08/1994 | 52208208052 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 01 | Seat cover cloth | 0546 ANTHRAZIT | 1 | 09/1993 | 52208180397 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0547 HELLGRAU | 1 | 09/1993 | 52208180398 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0548 BEIGE HELL | 1 | 09/1993 | 52208180399 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0549 BLAUVIOL.H | 1 | 09/1993 | 52208180400 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 01 | Seat cover leather | 0514 SCHWARZ | 1 | 09/1993 | 52208180434 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0515 BEIGE | 1 | 09/1993 | 52208180435 | $760.40 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0517 BLAUVIOLET | 1 | 09/1993 | 52208180436 | $783.09 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0516 SAFRANGELB | 1 | 09/1993 | 52208180437 | $906.75 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0595 HELLGRAU | 1 | 09/1993 | 52208180438 | $760.40 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 01 | Seat cover cloth | 0503 ANTHRAZIT | 1 | 09/1993 | 52208180345 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0504 GRAU | 1 | 09/1993 | 52208180346 | $354.25 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0505 BEIGE | 1 | 09/1993 | 52208180347 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather Nappa or Partial leather Walknappa |
L7=Yes N5=Yes |
|||||||||
| 01 | Seat cover leather | N5MQ MAULBEERE | 1 | 52202264877 | $750.51 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | L7HS HASELNUSS | 1 | 52202264878 | $750.51 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | L7SW,N5SW SCHW. | 1 | 52202264908 | $760.40 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | N5TT,L7TT GRAU | 1 | 52202264909 | $760.40 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | L7GD KLASS.ROT | 1 | 52202264912 | $750.51 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | L7LO LOTOSWEISS | 1 | 52202264913 | $750.51 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover leather | N5AX/L7AX MAGMA | 1 | 09/1995 | 52202488718 | $750.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with All leather Nappa or Partial leather Walknappa UPHOLSTERY LEATHER WALKNAPPA |
L7=Yes N5=Yes |
|||||||||
| 01 | Seat cover leather | N5AY,L7AY MODEN | 1 | 09/1995 | 52202488719 | $750.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Nappa Casual leather |
S481A=Yes P7=Yes |
|||||||||
| 01 | Seat cover leather | 0518 SCHWARZ | 1 | 09/1993 | 52208180424 | $750.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0519 HELLGRAU | 1 | 09/1993 | 52208180425 | $760.40 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0520 KLASS.ROT | 1 | 09/1993 | 52208180426 | $750.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0620 BEIGE | 1 | 09/1993 | 52208180427 | $750.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 01 | Seat cover cloth | 0511 ANTHRAZIT | 1 | 09/1993 | 52208180411 | $571.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0513 KLASS.ROT | 1 | 09/1993 | 52208180412 | $571.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | 0512 TUERKIS | 1 | 09/1993 | 52208180413 | $571.95 | ENDED | Shop at ECS Tuning | ||
| INDIVIDUAL SERIES 94 CLASS II | ||||||||||
| 02 | Cover backrest cloth | 0470 ANTHRAZIT | 1 | 52202264138 | $300.20 | ENDED | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 95 HERBSTPAKET | ||||||||||
| 02 | Cloth/leather backrest cover | FLIEDER/VIOLETT | 1 | 52202422258 | $725.40 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cloth/leather backrest cover | SCHWARZ/BLAU | 1 | 52202422275 | $725.40 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 02 | Cover backrest cloth | D6AT ANTHRAZIT | 1 | 09/1994 | 52208203553 | $195.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | D6TT GRAU | 1 | 09/1994 | 52208203554 | $337.76 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | D6GD KLASS.ROT | 1 | 09/1994 | 52208203555 | $195.30 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | D6TK TUERKIS | 1 | 09/1994 | 52208203556 | $195.30 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | D6AT ANTHRAZIT | 1 | 01/1995 | 52208203553 | $195.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | D6TT GRAU | 1 | 01/1995 | 52208203554 | $337.76 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | D6GD KLASS.ROT | 1 | 01/1995 | 52208203555 | $195.30 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | D6TK TUERKIS | 1 | 01/1995 | 52208203556 | $195.30 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 02 | Cover backrest, imitation leather | 0477 SCHWARZ | 1 | 52208119376 | $337.76 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover backrest, imitation leather | 0477 SCHWARZ | 1 | 09/1993 | 52208119376 | $337.76 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest, imitation leather | 0521 BEIGE | 1 | 09/1993 | 52208180356 | $337.76 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather flat textile |
C1=Yes |
|||||||||
| 02 | Cover backrest cloth | 0511 ANTHRAZIT | 1 | 09/1993 | 52208180494 | $445.28 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0513 KLASS.ROT | 1 | 09/1993 | 52208180495 | $445.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0512 TUERKIS | 1 | 09/1993 | 52208180496 | $445.28 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 02 | Cover backrest cloth | 0546 ANTHRAZIT | 1 | 09/1993 | 52208180478 | $231.01 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0547 HELLGRAU | 1 | 09/1993 | 52208180479 | $231.01 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0548 BEIGE HELL | 1 | 09/1993 | 52208180480 | $231.01 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0549 BLAUVIOL.H | 1 | 09/1993 | 52208180481 | $231.01 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0546 ANTHRAZIT | 1 | 01/1994 | 52208180478 | $231.01 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0547 HELLGRAU | 1 | 01/1994 | 52208180479 | $231.01 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0548 BEIGE HELL | 1 | 01/1994 | 52208180480 | $231.01 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0549 BLAUVIOL.H | 1 | 01/1994 | 52208180481 | $231.01 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 02 | Cover backrest cloth | 0503 ANTHRAZIT | 1 | 09/1993 | 52208180353 | $260.03 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0504 GRAU | 1 | 09/1993 | 52208180354 | $337.76 | +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0505 BEIGE | 1 | 09/1993 | 52208180355 | $337.76 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0503 ANTHRAZIT | 1 | 01/1994 | 52208180353 | $260.03 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0504 GRAU | 1 | 01/1994 | 52208180354 | $337.76 | +core | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | 0505 BEIGE | 1 | 01/1994 | 52208180355 | $337.76 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Foam plastic seat | 1 | 52201960778 | $210.66 | ENDED | Shop at ECS Tuning | ||||
| 04 | Foam plastic backrest | 1 | 52201960788 | $229.43 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 06 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Holder | 2 | 52208119533 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 08 | Spring | 2 | 52208119534 | $1.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
