Rear seat head restraint for BMW 3 Series E36 325i (1993)

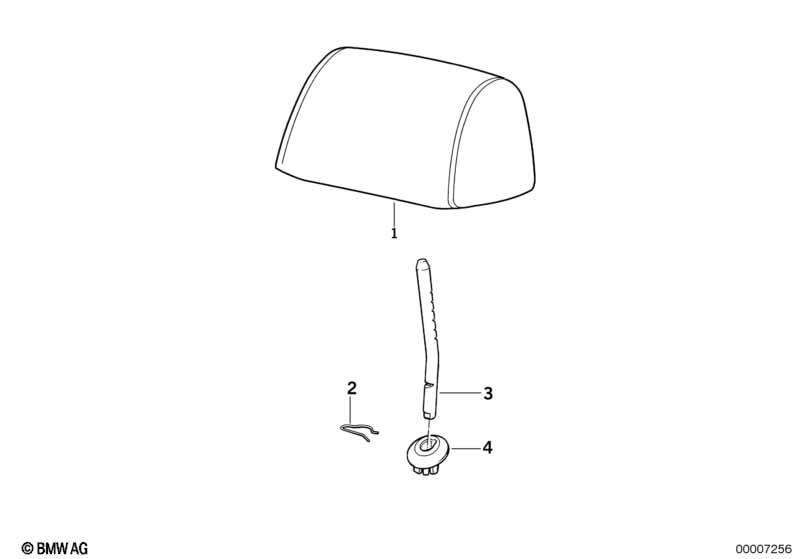

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC Cloth version |
|||||||||
| UPHOLSTERY LEATHER BISON | ||||||||||
| 01 | Headrest leather | 0203 SCHWARZ | 2 | 01/1994 | 52208119426 | $192.20 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0395 ULTRAMARIN | 2 | 01/1994 | 52208119428 | $204.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0396 PERGAMENT | 2 | 01/1994 | 52208119429 | $192.20 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0483 SILBERGRAU | 2 | 01/1994 | 52208156640 | $144.11 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth Schattenstreifen |
A3=Yes |
|||||||||
| 01 | Head rest cloth | 0383/0465 ANTHR | 2 | 01/1994 | 52208151708 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0384/0466 SILBE | 2 | 01/1994 | 52208151709 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0385/0467 ULTRA | 2 | 01/1994 | 52208151710 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | 0386/0468 PERGA | 2 | 01/1994 | 52208151711 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Nappa Casual leather |
S481A=Yes P7=Yes |
|||||||||
| 01 | Headrest leather | P7SG SAFRANGELB | 2 | 09/1993 | 52208195223 | $144.11 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | P7MA BLAUVIOLET | 2 | 09/1993 | 52208195224 | $144.11 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Spring washer | 4 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
| 03 | Guide left | 2 | 52201977897 | $7.28 | Shop at ECS Tuning | |||||
| 03 | Guide right | 2 | 52201977898 | $7.28 | Shop at ECS Tuning | |||||
| 04 | Cover | SCHWARZ | 4 | 52208135923 | $1.78 | Shop at ECS Tuning | ||||
| 04 | Cover | GRAU | 4 | 09/1993 | 52208190349 | $1.78 | Shop at ECS Tuning | |||
| 04 | Cover | BEIGE | 4 | 09/1993 | 52208190350 | $1.78 | Shop at ECS Tuning | |||
| 04 | Cover | KLASSISCHROT | 4 | 09/1993 | 52208190351 | $6.36 | ENDED | Shop at ECS Tuning | ||
| 04 | Cover | TUERKIS | 4 | 09/1993 | 52208190352 | $2.27 | ENDED | Shop at ECS Tuning | ||
| 04 | Cover | BLAUVIOLETT | 4 | 09/1993 | 52208190353 | $2.27 | ENDED | Shop at ECS Tuning | ||
| 04 | Cover | SAFRANGELB | 4 | 09/1993 | 52208190354 | $2.27 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
