Seat rear, upholstery & cover base seat for BMW 3 Series E36 325tds (1998)

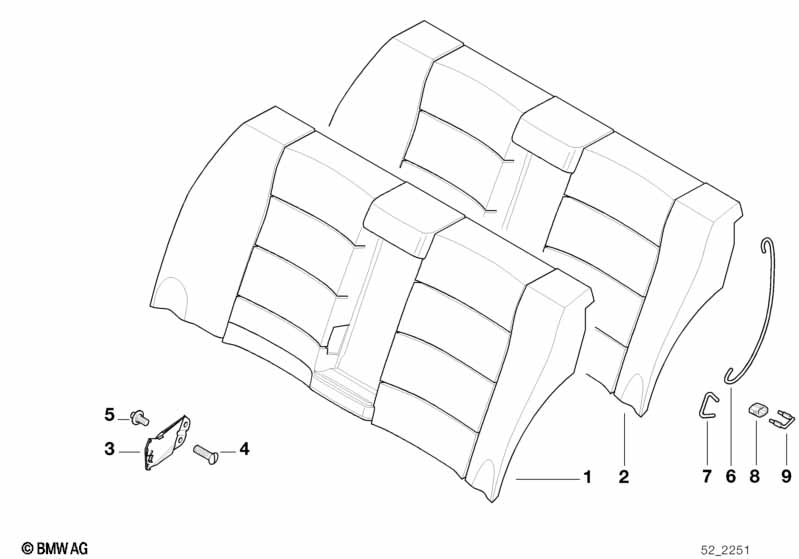

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 01 | Cover backrest, imitation leather | 0477 SCHWARZ | 1 | 52208135759 | $323.64 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover backrest, imitation leather | 0477 SCHWARZ | 1 | 09/1993 | 52208135759 | $323.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest, imitation leather | 0521 BEIGE | 1 | 09/1993 | 52208180981 | $323.64 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Boa Boa" |
E7=Yes |
|||||||||
| 01 | Cover backrest cloth | E7AV AVUSBLAU | 1 | 09/1997 | 52202495901 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover backrest cloth | E7ZR SIERRAROT | 1 | 09/1997 | 52202495902 | $304.67 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Pique" |
C3=Yes |
|||||||||
| 01 | Cover backrest cloth | 0503 ANTHRAZIT | 1 | 09/1993 | 52208180978 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | 0504 GRAU | 1 | 09/1993 | 52208180979 | $323.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | 0505 BEIGE | 1 | 09/1993 | 52208180980 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with National version japan INDIVIDUAL SERIES 05/93 |
L807A=Yes |
|||||||||
| 01 | Cover backrest, leather | 0774 MAULBEERE | 1 | 52202260132 | $1085.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover backrest, leather | 0775 BARBADOS | 1 | 52202260133 | $1085.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover backrest, leather | 0776 AMETHYST | 1 | 52202260134 | $1085.87 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 01 | Cover backrest, leather | 0514 SCHWARZ | 1 | 09/1993 | 52208180578 | $887.22 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | 0515 BEIGE | 1 | 09/1993 | 52208180579 | $724.19 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | 0517 BLAUVIOLET | 1 | 09/1993 | 52208180580 | $887.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | 0516 SAFRANGELB | 1 | 09/1993 | 52208180581 | $887.22 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | 0595 HELLGRAU | 1 | 09/1993 | 52208180582 | $887.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana Soft Special series, Exclusive Edition |
P8=Yes |
|||||||||
| 01 | Cover backrest, leather | P8TD TANINROT | 1 | 02/1997 | 52208231675 | $887.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | P8SK PAST.GRUEN | 1 | 02/1997 | 52208231676 | $887.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric wool velours |
C4=Yes |
|||||||||
| 01 | Cover backrest cloth | 0546 ANTHRAZIT | 1 | 09/1993 | 52208188144 | $323.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | 0547 HELLGRAU | 1 | 09/1993 | 52208188145 | $323.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | 0548 HELLBEIGE | 1 | 09/1993 | 52208188146 | $323.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | 0549 BLAUVIOL.H | 1 | 09/1993 | 52208188147 | $323.64 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric, flat "Clover" |
D6=Yes |
|||||||||
| 01 | Cover backrest cloth | D6AT ANTHRAZIT | 1 | 09/1994 | 52208203563 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | D6TT GRAU | 1 | 09/1994 | 52208203564 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | D6GD KLASS.ROT | 1 | 09/1994 | 52208203565 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | D6TK TUERKIS | 1 | 09/1994 | 52208203566 | $337.76 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | D6ME ASCOTGRUEN | 1 | 09/1997 | 52208233210 | $304.67 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Cloth/leather flat textile |
S481A=Yes C1=Yes |
|||||||||
| 01 | Cover backrest cloth | 0511 ANTHRAZIT | 1 | 09/1993 | 52208188162 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover backrest cloth | 0512 KLASS.ROT | 1 | 09/1993 | 52208188163 | $503.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest cloth | 0513 TUERKIS | 1 | 09/1993 | 52208188164 | $503.32 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Nappa Casual leather |
S481A=Yes P7=Yes |
|||||||||
| 01 | Cover backrest, leather | 0518 SCHWARZ | 1 | 09/1993 | 52208180538 | $887.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | 0519 HELLGRAU | 1 | 09/1993 | 52208180539 | $724.19 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | 0520 KLASS.ROT | 1 | 09/1993 | 52208180540 | $887.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | 0620 BEIGE | 1 | 09/1993 | 52208180541 | $887.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Nappa Casual leather Special series, Exclusive Edition |
S481A=Yes P7=Yes |
|||||||||
| 01 | Cover backrest, leather | P7TD TANINROT | 1 | 02/1997 | 52208231673 | $887.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover backrest, leather | P7SK PAST.GRUEN | 1 | 02/1997 | 52208231674 | $887.22 | ENDED | Shop at ECS Tuning | ||
| 02 | Foam plastic backrest | 1 | 52208135706 | $205.81 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Support left | 1 | 02/1992 | 52208119987 | $4.46 | ENDED | Shop at ECS Tuning | |||
| 03 | Support right | 1 | 02/1992 | 52208119988 | $4.46 | ENDED | Shop at ECS Tuning | |||
| 04 | Screw | ISA M6X15 | 2 | 52108130880 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Pin | 2 | 02/1992 | 52208144140 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 06 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Holder | 2 | 52208119533 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spring | 2 | 52208119534 | $1.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
