BMW sports seat backrest frame for BMW 8 Series E31 850Ci (1994)

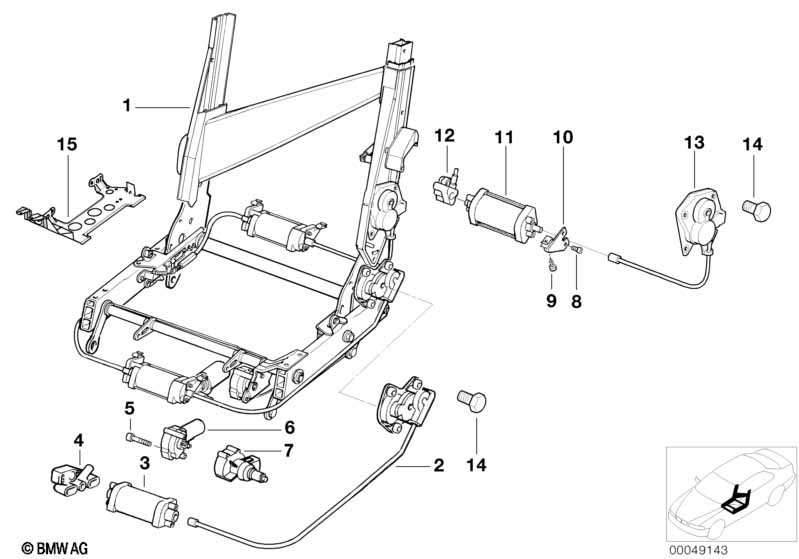

This BMW sports seat backrest frame technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 800 | |||||||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Frame, backrest right | 1 | 52108128792 | $2388.24 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 01 | Frame, backrest left | 1 | 52108128791 | $2978.44 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Memory ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 01 | Frame, backrest left | 1 | 52108128795 | $2978.44 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITHOUT MEMORY | ||||||||||
| 02 | Gearbox right | 1 | 52108128514 | $162.57 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITHOUT MEMORY Also suitable for MODEL WITH MEMORY |
||||||||||
| 02 | Gearbox left | 1 | 52108128513 | $162.57 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITHOUT MEMORY | ||||||||||
| 03 | Actuator vertical seat adjuster front | 2 | 67311392134 | $307.62 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITH MEMORY | ||||||||||
| 03 | Actuator vertical seat adjuster front | 1 | 67311392134 | $307.62 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Voltage regulator | 1 | 61311383485 | $60.38 | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 04 | Voltage regulator | 1 | 61311383485 | $60.38 | Shop at ECS Tuning | |||||
| 05 | Screw | M8X55 | X | 52108128517 | $0.28 | ENDED | Shop at ECS Tuning | |||
| MODEL WITHOUT MEMORY | ||||||||||
| 06 | Actuator inclination adjusting | 2 | 67311392137 | $204.09 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 06 | Actuator inclination adjusting | 1 | 09/1992 | 67668354638 | $215.60 | +core | Shop at ECS Tuning | |||
| 07 | Voltage regulator | 1 | 09/1992 | 61318356185 | $141.42 | Shop at ECS Tuning | ||||
| 08 | Screw | M5,5X25 | 4 | 52108128399 | $0.39 | ENDED | Shop at ECS Tuning | |||
| 09 | Torx bolt | ISA M5X12 | 2 | 52108123246 | $0.46 | Shop at ECS Tuning | ||||
| 10 | Holder | 2 | 52108128390 | $7.94 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITHOUT MEMORY | ||||||||||
| 11 | Actuator back rest | 2 | 67311392133 | $194.03 | Shop at ECS Tuning | |||||
| MODEL WITH MEMORY | ||||||||||
| 11 | Actuator back rest | 1 | 67311392133 | $194.03 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adjuster unit | 1 | 61311392475 | $60.38 | Shop at ECS Tuning | |||||
| MODEL WITHOUT MEMORY | ||||||||||
| 12 | Adjuster unit | 2 | 61311392476 | $60.38 | ENDED | Shop at ECS Tuning | ||||
| MODEL WITH MEMORY | ||||||||||
| 12 | Adjuster unit | 1 | 61311392475 | $60.38 | Shop at ECS Tuning | |||||
| 13 | Gearbox left | 2 | 52108128525 | $157.03 | ENDED | Shop at ECS Tuning | ||||
| 13 | Gearbox right | 2 | 52108128526 | $157.03 | Shop at ECS Tuning | |||||
| 15 | Holding plate | 2 | 52108128583 | $24.83 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
