Through-loading facility-seat cover for BMW 5 Series E34 530i (1996)

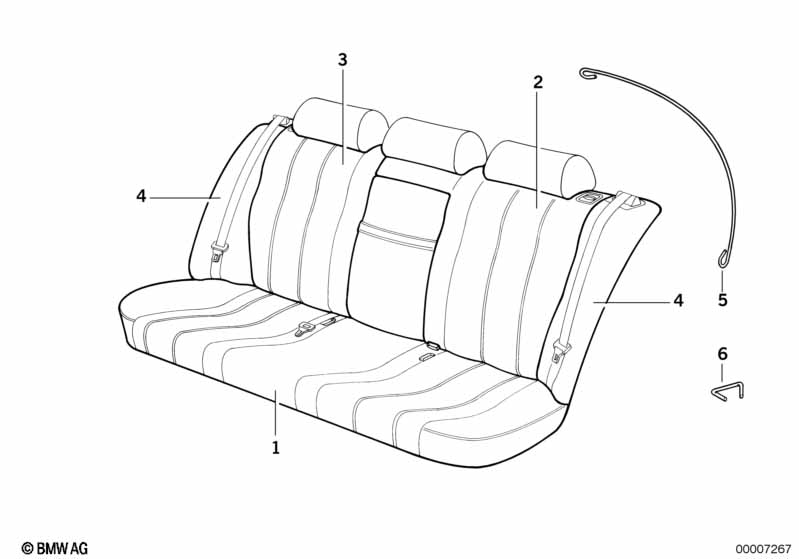

This Through-loading facility-seat cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 550 | |||||||||
| For vehicles with Gathered leather trim, Buffalo |
=Yes |
|||||||||
| 01 | Seat cover leather | 0180 ANTHRAZIT | 1 | 09/1992 | 52208168310 | $890.01 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Vinyl version |
=Yes |
|||||||||
| 01 | Seat cover vinyl | 0477 SCHWARZ | 1 | 52208133833 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat cover vinyl | 0478 ULTRAMARIN | 1 | 52208161437 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat cover vinyl | 0479 PERGAMENT | 1 | 52208161438 | $286.81 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Seat cover cloth | 0411 ANTHRAZIT | 1 | 52208133821 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0412 SILBERGRAU | 1 | 52208133822 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0413 ULTRAMARIN | 1 | 52208133823 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0406 ANTHRAZIT | 1 | 52208133827 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0407 SILBERGRAU | 1 | 52208133828 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0408 ULTRAMARIN | 1 | 52208133829 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0414 PERGAM.`92 | 1 | 03/1992 | 52208133207 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | 0409 PERGAM.`92 | 1 | 03/1992 | 52208133208 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Gathered leather trim, Bison |
=Yes |
|||||||||
| 01 | Seat cover leather | 0396 PERGAMENT | 1 | 09/1992 | 52208168364 | $797.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0203 SCHWARZ | 1 | 09/1992 | 52208168384 | $797.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0483 SILBERGRAU | 1 | 09/1992 | 52208168403 | $797.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0394 SI.GR.HELL | 1 | 09/1992 | 52208168404 | $797.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover leather | 0395 ULTRAMARIN | 1 | 09/1992 | 52208168434 | $797.94 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Gathered leather trim, Buffalo |
=Yes |
|||||||||
| 02 | Cover backrest leather left | 0180 ANTHRAZIT | 1 | 09/1992 | 52208168459 | $566.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Vinyl version |
=Yes |
|||||||||
| 02 | Cover backrest vinyl left | 0477 SCHWARZ | 1 | 52208133901 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl left | 0478 ULTRAMARIN | 1 | 52208161443 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl left | 0479 PERGAMENT | 1 | 52208161445 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 02 | Cover backrest cloth left | 0406 ANTHRAZIT | 1 | 52208133889 | $179.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth left | 0407 SILBERGRAU | 1 | 52208133891 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth left | 0408 ULTRAMARIN | 1 | 52208133893 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth left | 0411 ANTHRAZIT | 1 | 52208133983 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth left | 0412 SILBERGRAU | 1 | 52208133985 | $179.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth left | 0413 ULTRAMARIN | 1 | 52208133987 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth left | 0414 PERGAM.`92 | 1 | 03/1992 | 52208133213 | $149.54 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth left | 0409 PERGAM.`92 | 1 | 03/1992 | 52208133215 | $149.54 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Gathered leather trim, Bison |
=Yes |
|||||||||
| 02 | Cover backrest leather left | 0396 PERGAMENT | 1 | 09/1992 | 52208168445 | $566.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0203 SCHWARZ | 1 | 09/1992 | 52208168449 | $566.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0483 SILBERGRAU | 1 | 09/1992 | 52208168451 | $566.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0394 SI.GR.HELL | 1 | 09/1992 | 52208168453 | $566.37 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest leather left | 0395 ULTRAMARIN | 1 | 09/1992 | 52208168455 | $566.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Gathered leather trim, Buffalo |
=Yes |
|||||||||
| 03 | Cover backrest leather right | 0180 ANTHRAZIT | 1 | 09/1992 | 52208168460 | $429.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Vinyl version |
=Yes |
|||||||||
| 03 | Cover backrest vinyl right | 0477 SCHWARZ | 1 | 52208133902 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover backrest vinyl right | 0478 ULTRAMARIN | 1 | 52208161444 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover backrest vinyl right | 0479 PERGAMENT | 1 | 52208161446 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 03 | Cover backrest cloth right | 0406 ANTHRAZIT | 1 | 52208133890 | $179.68 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover backrest cloth right | 0407 SILBERGRAU | 1 | 52208133892 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover backrest cloth right | 0408 ULTRAMARIN | 1 | 52208133894 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover backrest cloth right | 0411 ANTHRAZIT | 1 | 52208133984 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover backrest cloth right | 0412 SILBERGRAU | 1 | 52208133986 | $149.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover backrest cloth right | 0413 ULTRAMARIN | 1 | 52208133988 | $179.68 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover backrest cloth right | 0414 PERGAM.`92 | 1 | 03/1992 | 52208133214 | $149.54 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover backrest cloth right | 0409 PERGAM.`92 | 1 | 03/1992 | 52208133216 | $179.68 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Gathered leather trim, Bison |
=Yes |
|||||||||
| 03 | Cover backrest leather right | 0396 PERGAMENT | 1 | 09/1992 | 52208168446 | $429.66 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover backrest leather right | 0203 SCHWARZ | 1 | 09/1992 | 52208168450 | $429.66 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover backrest leather right | 0483 SILBERGRAU | 1 | 09/1992 | 52208168452 | $429.66 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover backrest leather right | 0394 SI.GR.HELL | 1 | 09/1992 | 52208168454 | $429.66 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover backrest leather right | 0395 ULTRAMARIN | 1 | 09/1992 | 52208168456 | $429.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Gathered leather trim, Buffalo |
=Yes |
|||||||||
| 04 | Lateral trim panel left | 0180 ANTHRAZIT | 1 | 09/1992 | 52208168519 | $525.64 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Lateral trim panel right | 0180 ANTHRAZIT | 1 | 09/1992 | 52208168520 | $525.64 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Vinyl version |
=Yes |
|||||||||
| 04 | Lateral trim panel left | 0477 SCHWARZ | 1 | 52208133725 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel right | 0477 SCHWARZ | 1 | 52208133726 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel left | 0478 ULTRAMARIN | 1 | 52208133727 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lateral trim panel right | 0478 ULTRAMARIN | 1 | 52208133728 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lateral trim panel left | 0479 PERGAMENT | 1 | 52208133729 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lateral trim panel right | 0479 PERGAMENT | 1 | 52208133730 | $218.74 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 04 | Lateral trim panel right | 0409/0414PER`92 | 1 | 52208133220 | $292.39 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel left | 0406/0411 ANTHR | 1 | 52208133713 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel right | 0406/0411 ANTHR | 1 | 52208133714 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel left | 0407/0412 SI.GR | 1 | 52208133715 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel right | 0407/0412 SI.GR | 1 | 52208133716 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel left | 0408/0413 ULT.M | 1 | 52208133717 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel right | 0408/0413 ULT.M | 1 | 52208133718 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Lateral trim panel left | 0409/0414PER`92 | 1 | 03/1992 | 52208133219 | $292.39 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Gathered leather trim, Bison |
=Yes |
|||||||||
| 04 | Lateral trim panel left | 0396 PERGAMENT | 1 | 09/1992 | 52208168515 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel right | 0396 PERGAMENT | 1 | 09/1992 | 52208168516 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel left | 0203 SCHWARZ | 1 | 09/1992 | 52208168543 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel right | 0203 SCHWARZ | 1 | 09/1992 | 52208168544 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel left | 0483 SILBERGRAU | 1 | 09/1992 | 52208168545 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel right | 0483 SILBERGRAU | 1 | 09/1992 | 52208168546 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel left | 0394 SI.GR.HELL | 1 | 09/1992 | 52208168547 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel right | 0394 SI.GR.HELL | 1 | 09/1992 | 52208168548 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel left | 0395 ULTRAMARIN | 1 | 09/1992 | 52208168549 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Lateral trim panel right | 0395 ULTRAMARIN | 1 | 09/1992 | 52208168550 | $450.86 | ENDED | Shop at ECS Tuning | ||
| 05 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 06 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
