Seat, front, complete seat for BMW 3 Series E36 328i (1999)

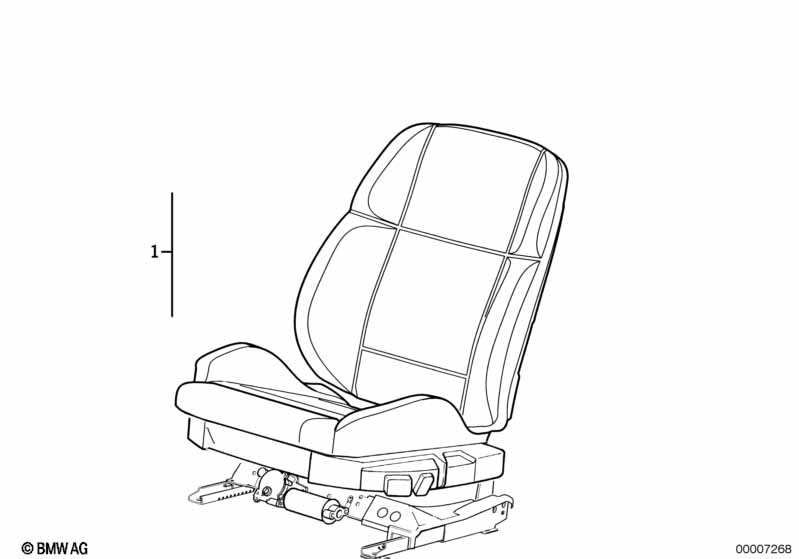

This Seat, front, complete seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Model with seat heating Model with seat heating Model with seat heating Model with seat heating Model with seat heating Model with seat heating |
|||||||||
| CLOTH VERSION, FLAT TEXTILE KLEE | ||||||||||
| 01 | Cloth sport seat, left | D6AT ANTHRAZIT | 1 | 09/1994 | 52109068233 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6AT ANTHRAZIT | 1 | 09/1994 | 52109068234 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | D6TT GRAU | 1 | 09/1994 | 52109068235 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6TT GRAU | 1 | 09/1994 | 52109068236 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | D6GD KLASS.ROT | 1 | 09/1994 | 52109068237 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6GD KLASS.ROT | 1 | 09/1994 | 52109068238 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | D6TK TUERKIS | 1 | 09/1994 | 52109068239 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6TK TUERKIS | 1 | 09/1994 | 52109068240 | ENDED | Shop at ECS Tuning | |||
| CLOTH VERSION WITH LEATHER | ||||||||||
| 01 | Cloth sport seat, left | C1AT ANTHRAZIT | 1 | 09/1994 | 52109068241 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | C1AT ANTHRAZIT | 1 | 09/1994 | 52109068242 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | C1GD KLASS.ROT | 1 | 09/1994 | 52109068243 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | C1GD KLASS.ROT | 1 | 09/1994 | 52109068244 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | C1TK TUERKIS | 1 | 09/1994 | 52109068245 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | C1TK TUERKIS | 1 | 09/1994 | 52109068246 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER MONTANA | ||||||||||
| 01 | Leather sport seat, left | P7SW SCHWARZ | 1 | 09/1994 | 52109068247 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, right | P7SW SCHWARZ | 1 | 09/1994 | 52109068248 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, left | P7TH HELLGRAU | 1 | 09/1994 | 52109068249 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7TH HELLGRAU | 1 | 09/1994 | 52109068250 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | P7SN BEIGE | 1 | 09/1994 | 52109068251 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, right | P7SN BEIGE | 1 | 09/1994 | 52109068252 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, left | P7GD KLASS.ROT | 1 | 09/1994 | 52109068253 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7GD KLASS.ROT | 1 | 09/1994 | 52109068254 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | P7MA BLAUVIOLET | 1 | 09/1994 | 52109068255 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7MA BLAUVIOLET | 1 | 09/1994 | 52109068256 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | P7SG SAFRANGELB | 1 | 09/1994 | 52109068257 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7SG SAFRANGELB | 1 | 09/1994 | 52109068258 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with National version south africa CLOTH VERSION, FLAT TEXTILE KLEE |
L824A=Yes |
|||||||||
| 01 | Cloth sport seat, left | D6AT ANTHRAZIT | 1 | 01/1995 | 52109068233 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6AT ANTHRAZIT | 1 | 01/1995 | 52109068234 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | D6TT GRAU | 1 | 01/1995 | 52109068235 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6TT GRAU | 1 | 01/1995 | 52109068236 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | D6GD KLASS.ROT | 1 | 01/1995 | 52109068237 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6GD KLASS.ROT | 1 | 01/1995 | 52109068238 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | D6TK TUERKIS | 1 | 01/1995 | 52109068239 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | D6TK TUERKIS | 1 | 01/1995 | 52109068240 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version south africa CLOTH VERSION WITH LEATHER |
L824A=Yes |
|||||||||
| 01 | Cloth sport seat, left | C1AT ANTHRAZIT | 1 | 01/1995 | 52109068241 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | C1AT ANTHRAZIT | 1 | 01/1995 | 52109068242 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | C1GD KLASS.ROT | 1 | 01/1995 | 52109068243 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | C1GD KLASS.ROT | 1 | 01/1995 | 52109068244 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, left | C1TK TUERKIS | 1 | 01/1995 | 52109068245 | ENDED | Shop at ECS Tuning | |||
| 01 | Cloth sport seat, right | C1TK TUERKIS | 1 | 01/1995 | 52109068246 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version south africa UPHOLSTERY LEATHER MONTANA |
L824A=Yes |
|||||||||
| 01 | Leather sport seat, left | P7SW SCHWARZ | 1 | 01/1995 | 52109068247 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, right | P7SW SCHWARZ | 1 | 01/1995 | 52109068248 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, left | P7TH HELLGRAU | 1 | 01/1995 | 52109068249 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7TH HELLGRAU | 1 | 01/1995 | 52109068250 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | P7SN BEIGE | 1 | 01/1995 | 52109068251 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, right | P7SN BEIGE | 1 | 01/1995 | 52109068252 | $2594.70 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Leather sport seat, left | P7GD KLASS.ROT | 1 | 01/1995 | 52109068253 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7GD KLASS.ROT | 1 | 01/1995 | 52109068254 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | P7MA BLAUVIOLET | 1 | 01/1995 | 52109068255 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7MA BLAUVIOLET | 1 | 01/1995 | 52109068256 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather sport seat, left | P7SG SAFRANGELB | 1 | 01/1995 | 52109068257 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Leather sport seat, right | P7SG SAFRANGELB | 1 | 01/1995 | 52109068258 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
