Center armrest rear for BMW 5 Series E34 518g (1996)

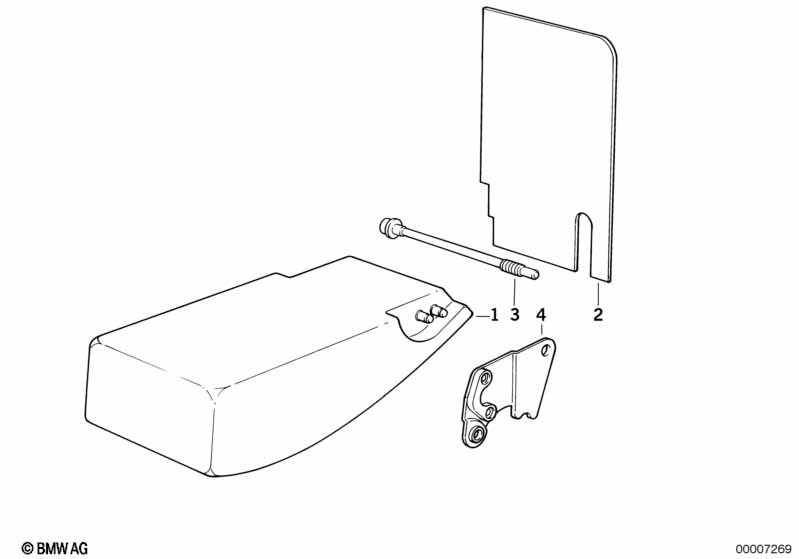

This Center armrest rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518g. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Armrest cloth | 0406/0411 ANTH. | 1 | 52208133928 | $407.34 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest cloth | 0407/0412 SI.GR | 1 | 52208133929 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Bison or Gathered leather trim, Bison |
=Yes =Yes |
|||||||||
| 01 | Armrest leather | 0203 SCHWARZ | 1 | 52208133938 | $641.70 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather | 0483 SILBERGRAU | 1 | 52208133942 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | SILBERGRAU | 1 | 52208120012 | $58.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | SCHWARZ | 1 | 52208149147 | $58.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Countersunk head screw | M8X20 | 1 | 07119900868 | $0.71 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 52208120490 | $12.39 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 518g Center armrest rear?
- This technical diagram illustrates the Center armrest rear within the Seats group for the 5 Series E34 518g produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Armrest cloth (Part #52208133928).
- Which models use the hardware listed in this Center armrest rear?
- The hardware and components featured in the Center armrest rear are specific to the 5 Series E34 518g produced during 1996. These technical specifications ensure that parts like the Armrest cloth (52208133928) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Center armrest rear assembly?
- Each item in the Center armrest rear corresponds to the numbered list below the illustration. For the 5 Series E34 518g, you can identify the Armrest cloth by locating its position on the schematic, which then links to the official BMW part number 52208133928 for the Seats section.
