BMW sports seat upholstery parts for BMW 5 Series E28 535i (1981)

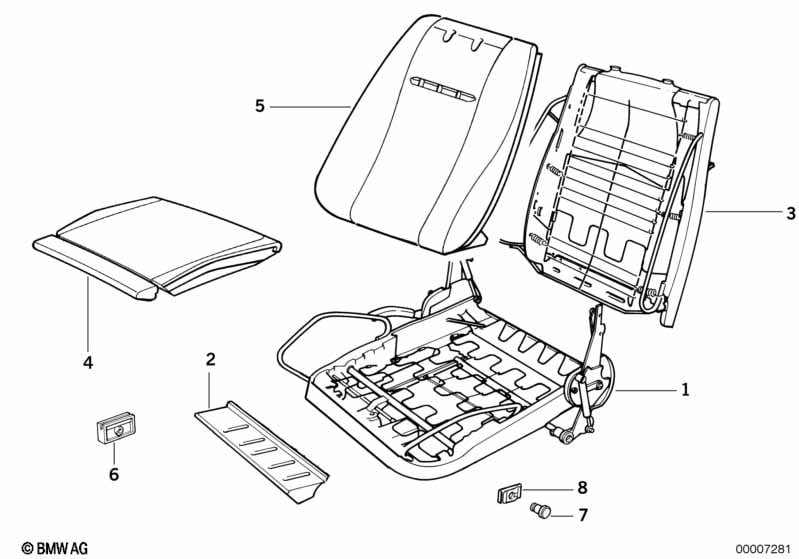

This BMW sports seat upholstery parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring frame seat front left | 1 | 52101931305 | $289.29 | ENDED | Shop at ECS Tuning | ||||
| 01 | Spring frame seat front right | 1 | 52101931306 | $301.32 | ENDED | Shop at ECS Tuning | ||||
| 02 | Carrier thigh support | 2 | 52101922270 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring frame backrest front | 2 | 52101923444 | $110.33 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pad seat front | 2 | 52101933390 | $91.86 | Shop at ECS Tuning | |||||
| 05 | Pad seat backrest front | 2 | 52101923907 | $101.05 | Shop at ECS Tuning | |||||
| 07 | Guide thigh support | 4 | 52101940490 | $1.21 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i BMW sports seat upholstery parts?
- This technical diagram illustrates the BMW sports seat upholstery parts within the Seats group for the 5 Series E28 535i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Spring frame seat front left (Part #52101931305).
- Which models use the hardware listed in this BMW sports seat upholstery parts?
- The hardware and components featured in the BMW sports seat upholstery parts are specific to the 5 Series E28 535i produced during 1981. These technical specifications ensure that parts like the Spring frame seat front left (52101931305) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW sports seat upholstery parts assembly?
- Each item in the BMW sports seat upholstery parts corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Spring frame seat front left by locating its position on the schematic, which then links to the official BMW part number 52101931305 for the Seats section.
