Headrest, rear for BMW 5 Series E34 525tds (1996)

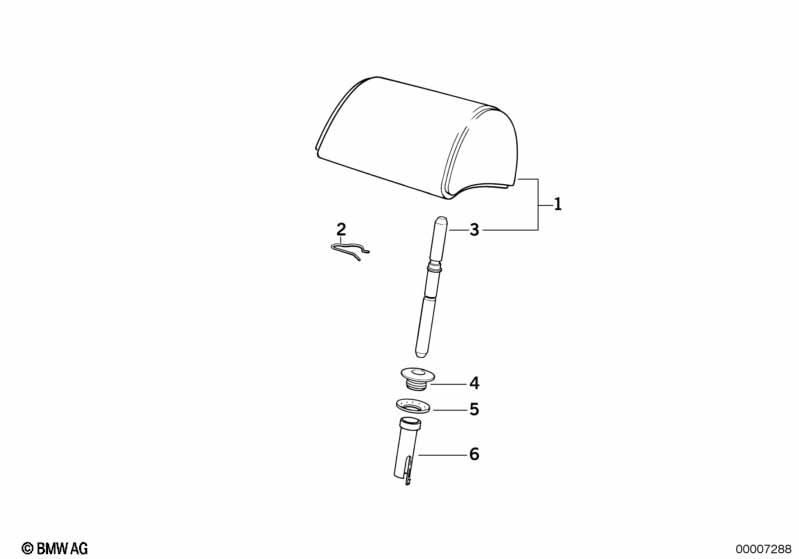

This Headrest, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 550 | |||||||||
| INDIVIDUAL SERIES 93 EDEL TOURING | ||||||||||
| 01 | Head rest cloth | 0406/0411 ANTH. | 3 | 52208133514 | $125.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth | 0407/0412 SI.GR | 3 | 52208133515 | $120.53 | ENDED | Shop at ECS Tuning | |||
| FOR EXECUTIVE EQUIPMENT | ||||||||||
| 01 | Headrest leather | 0203 SCHWARZ | 3 | 09/1994 | 52208133522 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Gathered leather trim, Buffalo |
=Yes |
|||||||||
| 01 | Headrest leather | 0180 ANTHRAZIT | 3 | 09/1992 | 52208168628 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Head rest cloth | 0409/0414PER`92 | 3 | 52208133223 | $120.53 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Head rest cloth | 0406/0411 ANTH. | 3 | 52208133514 | $125.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth | 0407/0412 SI.GR | 3 | 52208133515 | $120.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth | 0408/0413 ULT.M | 3 | 52208133516 | $120.53 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vinyl version |
=Yes |
|||||||||
| 01 | Headrest imitation leather | 0477 SCHWARZ | 3 | 52208133519 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest imitation leather | 0478 ULTRAMARIN | 3 | 52208161455 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headrest imitation leather | 0479 PERGAMENT | 3 | 52208161456 | $120.53 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Gathered leather trim, Bison |
=Yes |
|||||||||
| 01 | Headrest leather | 0396 PERGAMENT | 3 | 09/1992 | 52208168605 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0203 SCHWARZ | 3 | 09/1992 | 52208168607 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0483 SILBERGRAU | 3 | 09/1992 | 52208168608 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0394 SI.GR.HELL | 3 | 09/1992 | 52208168609 | $224.04 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | 0395 ULTRAMARIN | 3 | 09/1992 | 52208168626 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 02 | Spring washer | 6 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
| 03 | Guide tube | 6 | 52208133549 | $13.53 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering Lower | 6 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 06 | Guide | SCHWARZ | 6 | 52208133495 | $1.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
