Rear seat head restraint for BMW 3 Series E36 328i (1999)

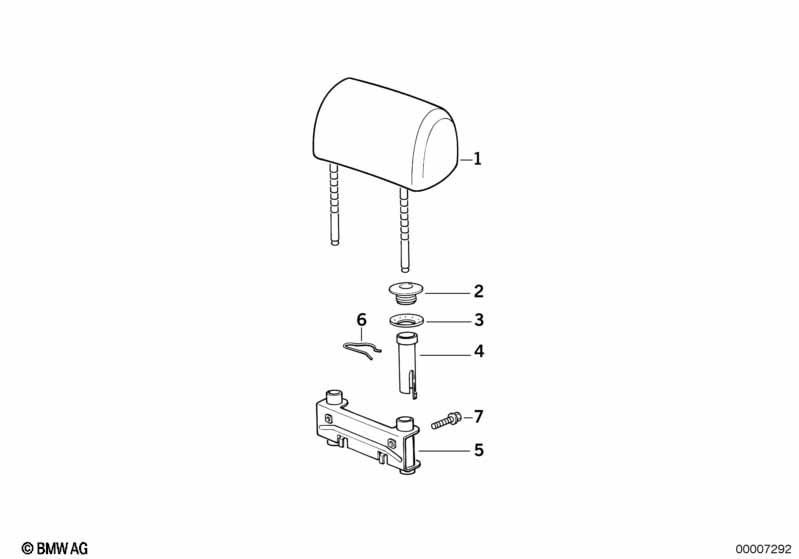

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | MODIFICATION KIT:ITEM 1-7 OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| UPHOLSTERY LEATHER MONTANA MODEL CASUAL |
||||||||||
| 01 | Headrest leather | 0518 SCHWARZ | 2 | 52208170977 | $170.97 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0519 HELLGRAU | 2 | 52208170978 | $170.97 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0520 KLASSI.ROT | 2 | 52208170979 | $148.43 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0620 BEIGE | 2 | 52208187696 | $170.97 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0645 SAFRANGELB | 2 | 52208195204 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0646 BLAUVIOLET | 2 | 52208195205 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER BUFFALO | ||||||||||
| 01 | Headrest leather | 0418 ANTHRAZIT | 2 | 52202262241 | $204.23 | ENDED, +core | Shop at ECS Tuning | |||
| CLOTH VERSION WITH LEATHER | ||||||||||
| 01 | Headrest cloth-leather | 0511 ANTHRAZIT | 2 | 52208170974 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest cloth-leather | 0512 TUERKIS | 2 | 52208170975 | $158.47 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest cloth-leather | 0513 KLASSI.ROT | 2 | 52208170976 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 96 CLASSIC | ||||||||||
| 01 | Headrest leather | L9CW CREMEWEIß | 2 | 52202494582 | ENDED, +core | Shop at ECS Tuning | ||||
| UPHOLSTERY LEATHER MONTANA MODEL SOFT |
||||||||||
| 01 | Headrest leather | 0514 SCHWARZ | 2 | 52208170968 | $170.97 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0515 BEIGE | 2 | 52208170969 | $170.97 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0516 SAFRANGELB | 2 | 52208170970 | $148.43 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0517 BLAUVIOL. | 2 | 52208170971 | $170.97 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0595 HELLGRAU | 2 | 52208187697 | $170.97 | ENDED | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER WALKNAPPA | ||||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52202262237 | $192.20 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0636,0641 GRAU | 2 | 52202262238 | $192.20 | Shop at ECS Tuning | ||||
| 01 | Headrest leather | 0462 LOTOSWEISS | 2 | 52202262239 | $204.23 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0638 KLASS.ROT | 2 | 52202264477 | $204.23 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0639 BLAUVIOLET | 2 | 52202264478 | $204.23 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | 0619 HASELNUSS | 2 | 52202265865 | $204.23 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | L7MQ MAULBEERE | 2 | 09/1995 | 52202488774 | $192.20 | ENDED | Shop at ECS Tuning | ||
| 01 | Headrest leather | L7AX MAGMA | 2 | 09/1995 | 52202488775 | $192.20 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N5AY,L7AY MODEN | 2 | 09/1995 | 52202488776 | $192.20 | ENDED, +core | Shop at ECS Tuning | ||
| CLOTH VERSION, FLAT TEXTILE KLEE | ||||||||||
| 01 | Head rest cloth | D6AT ANTHRAZIT | 2 | 09/1994 | 52208203693 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6TT GRAU | 2 | 09/1994 | 52208203694 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6GD KLASS.ROT | 2 | 09/1994 | 52208203695 | $117.33 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | D6TK TUERKIS | 2 | 09/1994 | 52208203696 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| IMITATION LEATHER | ||||||||||
| 01 | Headrest imitation leather | 0477 SCHWARZ | 2 | 52208170972 | $117.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest imitation leather | 0521 BEIGE | 2 | 52208170973 | $117.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 01 | Headrest leather | P8ST STAHLBLAU | 2 | 09/1998 | 52208256663 | $158.47 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | P8SX MEERGRÜN | 2 | 09/1998 | 52208256664 | $158.47 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana Soft Special series, Exclusive Edition |
P8=Yes |
|||||||||
| 01 | Headrest leather | P8TD TANINROT | 2 | 02/1997 | 52208232471 | $184.14 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | P8SK PAST.GRUEN | 2 | 02/1997 | 52208232472 | $194.18 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Boa Boa" |
E7=Yes |
|||||||||
| 01 | Head rest cloth | E7AV,E7ZR SCHW. | 2 | 09/1997 | 52208235702 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Nappa Casual leather Special series, Exclusive Edition |
S481A=Yes P7=Yes |
|||||||||
| 01 | Headrest leather | P7TD TANINROT | 2 | 02/1997 | 52208232473 | $194.18 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | P7SK PAST.GRUEN | 2 | 02/1997 | 52208232474 | $194.18 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | P7ST STAHLBLAU | 2 | 02/1997 | 52208256665 | $194.18 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 03 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 04 | Guide | SCHWARZ | 2 | 52208133495 | $1.87 | Shop at ECS Tuning | ||||
| 04 | Guide | WEISS | 2 | 52208185002 | $1.88 | ENDED | Shop at ECS Tuning | |||
| 05 | Holder | 2 | 52208156315 | $23.96 | Shop at ECS Tuning | |||||
| 06 | Spring washer | 4 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X10-Z1 | 4 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
