Front seat rail mechanical/single parts for BMW 3 Series E36 318is (1995)

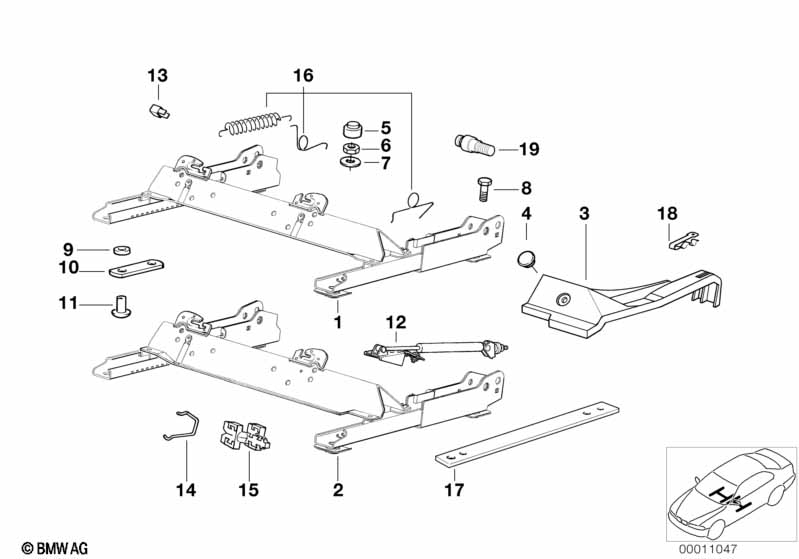

This Front seat rail mechanical/single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Seat rail left | 1 | 03/1997 | 52108161535 | $83.59 | ENDED | Shop at ECS Tuning | |||
| 02 | Seat rail right | 1 | 03/1997 | 52108161536 | $83.59 | ENDED | Shop at ECS Tuning | |||
| for vehicles up to 03/97 | ||||||||||
| 02 | Seat rail left | 1 | 52108234795 | $97.41 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Seat rail right | 1 | 52108234796 | $97.41 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pin | 1 | 52108201097 | $5.46 | Shop at ECS Tuning | |||||
| 03 | Covering cap left | 1 | 01/1992 | 52101960791 | $1.85 | Shop at ECS Tuning | ||||
| 03 | Covering cap right | 1 | 01/1992 | 52101960792 | $1.85 | Shop at ECS Tuning | ||||
| 04 | Expanding rivet, black | L=15MM | 2 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Covering cap | 4 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 06 | Hex nut with ribs | M10 | 4 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B10-ZNS3 | 4 | 09/1999 | 07119904463 | Shop at ECS Tuning | ||||
| 07 | Washer | D=10MM | 4 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M10 | 8 | 52108211438 | $0.71 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 09 | Stopper | 2 | 52108153563 | $1.82 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 10 | Stopper | 2 | 52108153569 | $1.82 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rivet | 4 | 52108161653 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO VERTICAL ADJUSTMENT | ||||||||||
| 13 | Guide | 2 | 52108171806 | $1.32 | Shop at ECS Tuning | |||||
| 14 | Spring left | 1 | 02/1993 | 52108167745 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 14 | Spring right | 1 | 02/1993 | 52108167746 | $0.55 | Shop at ECS Tuning | ||||
| 15 | Felt slide bearing | 2 | 04/1993 | 52108176226 | ENDED | Shop at ECS Tuning | ||||
| 16 | Spring set | 1 | 52108171805 | $9.37 | Shop at ECS Tuning | |||||
| 17 | Seat rail extension adapter | 4 | 52108191181 | $18.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 18 | Spring | 4 | 09/1995 | 52108200765 | $1.09 | Shop at ECS Tuning | ||||
| 19 | Pin | 2 | 03/1997 | 52108201097 | $5.46 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
