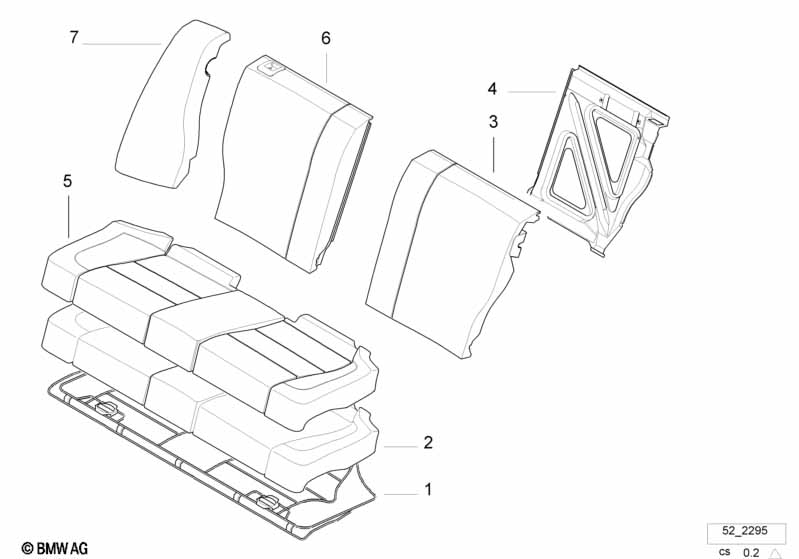

Seat, rear, uphlstry/cover, load-through for BMW 3 Series E36 318tds (2000)
This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| 01 | Seat frame | 1 | 52208146419 | $102.39 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pad seat rear | 1 | 52208146305 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Foam plastic part left backrest | 1 | 52208146599 | $121.05 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Foam section, backrest, right | 1 | 52208146600 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Covering, rear left | SCHWARZ | 1 | 52208192907 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Covering, rear right | SCHWARZ | 1 | 52208192908 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Covering, rear left | SANDGRAU | 1 | 52208192909 | $165.48 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Covering, rear right | SANDGRAU | 1 | 52208192910 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| INDIV.SERIES 96 INCREAS.VALUE STRATEGIE | ||||||||||
| 05 | Seat cover cloth | ANTHRAZIT/ROT | 1 | 52202421898 | $323.64 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Seat cover cloth | ANT./MULTICOLOR | 1 | 52202421908 | $323.64 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Flat textile |
F1=Yes |
|||||||||
| 05 | Seat cover cloth | F1ME ASCOTGRUEN | 1 | 52208158037 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Seat cover cloth | C5AT,F1AT ANTHR | 1 | 52208189804 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Seat cover cloth | C5PU,F1PU BLAU | 1 | 52208189807 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Op Art" |
G2=Yes |
|||||||||
| 05 | Seat cover cloth | G2AT ANTHRAZIT | 1 | 01/1999 | 52208264660 | $405.11 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | G2OS HELLROT | 1 | 01/1999 | 52208264661 | $405.11 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather Nappa SPECIAL SERIES LUXURY COMPACT |
M2=Yes |
|||||||||
| 05 | Seat cover leather | M2SW SCHWARZ | 1 | 10/1994 | 52202266382 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 05 | Seat cover leather | M2MA BLAUVIOLET | 1 | 10/1994 | 52202266383 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 05 | Seat cover leather | M2GD KLASS.ROT | 1 | 10/1994 | 52202266384 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 05 | Seat cover leather | M2CM CHAMPAGNER | 1 | 10/1994 | 52202266385 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 05 | Seat cover leather | M2HS HASELNUSS | 1 | 10/1994 | 52202266386 | $965.34 | ENDED | Shop at ECS Tuning | ||
| 05 | Seat cover leather | M2MQ MAULBEERE | 1 | 10/1994 | 52202494624 | $887.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Millpoint" SPECIAL SERIES SPORT COMPACT |
D7=Yes |
|||||||||
| 05 | Seat cover cloth | D7BL BLAU | 1 | 10/1994 | 52202265912 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | D7RT ROT | 1 | 10/1994 | 52202265913 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | D7TT GRAU | 1 | 10/1994 | 52202265914 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | D7OL OELBLAU | 1 | 10/1994 | 52202693538 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Ammonit" |
F8=Yes |
|||||||||
| 05 | Seat cover cloth | F8AT ANTHRAZIT | 1 | 01/1999 | 52208264650 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | F8ST STAHLBLAU | 1 | 01/1999 | 52208264651 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | F8TK TUERKIS | 1 | 01/1999 | 52208264652 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with 100% Leather, Oregon/Int. black |
Q4=Yes |
|||||||||
| 05 | Seat cover leather | Q4SW SCHWARZ | 1 | 01/1999 | 52208264663 | $965.34 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover leather | Q4TD TANINROT | 1 | 01/1999 | 52208264664 | $965.34 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover leather | Q4MB MONTREALBL | 1 | 01/1999 | 52208264665 | $965.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Pinie" |
F7=Yes |
|||||||||
| 05 | Seat cover cloth | F7AT ANTHRAZIT | 1 | 01/1999 | 52208264646 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | F7FG FARNGRUEN | 1 | 01/1999 | 52208264647 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | F7BE SANDGRAU | 1 | 01/1999 | 52208264648 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Lots of Dots" |
G1=Yes |
|||||||||
| 05 | Seat cover cloth | G1GA GRAU-SCHW. | 1 | 01/1999 | 52208264656 | $405.11 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | G1MB MONTREALBL | 1 | 01/1999 | 52208264657 | $405.11 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | G1SR SIENAROT | 1 | 01/1999 | 52208264658 | $406.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric,Jacquard /Int.sand-grau |
E1=Yes |
|||||||||
| 05 | Seat cover cloth | E1BE SANDGRAU | 1 | 09/1996 | 52208220376 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with 100% Leather, Oregon/Int. beige |
Q5=Yes |
|||||||||
| 05 | Seat cover leather | Q5BE SANDGRAU | 1 | 01/1999 | 52208264669 | $965.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather |
K5=Yes |
|||||||||
| 05 | Seat cover vinyl | K5SW SCHWARZ | 1 | 03/1997 | 52208232804 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover vinyl | K5BH SAND HELL | 1 | 03/1997 | 52208232805 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric, Jacquard/Int.black |
E2=Yes |
|||||||||
| 05 | Seat cover cloth | E2AT ANTHRAZIT | 1 | 09/1996 | 52208220375 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | E2KU KOENIGBLAU | 1 | 09/1996 | 52208220377 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover cloth | E2GD KLASS.ROT | 1 | 09/1996 | 52208220378 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat or Sports Edition and Cloth "Boa Boa" |
S481A=Yes S719A=Yes E7=Yes |
|||||||||
| 05 | Seat cover | E7AV AVUSBLAU | 1 | 09/1997 | 52208158085 | $405.11 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover | E7ZR SIERRAROT | 1 | 09/1997 | 52208158086 | $405.11 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Seat cover | E7TT GRAU | 1 | 09/1997 | 52208251010 | $405.11 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Op Art" |
G2=Yes |
|||||||||
| 06 | Cover backrest cloth left | G2AT ANTHRAZIT | 1 | 01/1999 | 52208264801 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | G2AT ANTHRAZIT | 1 | 01/1999 | 52208264802 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | G2OS HELLROT | 1 | 01/1999 | 52208264803 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | G2OS HELLROT | 1 | 01/1999 | 52208264804 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather Nappa SPECIAL SERIES LUXURY COMPACT |
M2=Yes |
|||||||||
| 06 | Cover backrest leather left | M2SW SCHWARZ | 1 | 10/1994 | 52202266401 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | M2SW SCHWARZ | 1 | 10/1994 | 52202266402 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather left | M2MA BLAUVIOLET | 1 | 10/1994 | 52202266403 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | M2MA BLAUVIOLET | 1 | 10/1994 | 52202266404 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather left | M2GD KLASS.ROT | 1 | 10/1994 | 52202266405 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | M2GD KLASS.ROT | 1 | 10/1994 | 52202266406 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather left | M2CM CHAMPAGNER | 1 | 10/1994 | 52202266407 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | M2CM CHAMPAGNER | 1 | 10/1994 | 52202266408 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather left | M2HS HASELNUSS | 1 | 10/1994 | 52202266409 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | M2HS HASELNUSS | 1 | 10/1994 | 52202266410 | $558.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover backrest leather left | M2MQ MAULBEERE | 1 | 10/1994 | 52202494615 | $558.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Millpoint" SPECIAL SERIES SPORT COMPACT |
D7=Yes |
|||||||||
| 06 | Cover backrest cloth left | D7BL BLAU | 1 | 10/1994 | 52202265901 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | D7BL BLAU | 1 | 10/1994 | 52202265902 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | D7RT ROT | 1 | 10/1994 | 52202265903 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | D7RT ROT | 1 | 10/1994 | 52202265904 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | D7TT GRAU | 1 | 10/1994 | 52202265905 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | D7TT GRAU | 1 | 10/1994 | 52202265906 | $323.64 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Ammonit" |
F8=Yes |
|||||||||
| 06 | Cover backrest cloth left | F8AT ANTHRAZIT | 1 | 01/1999 | 52208264781 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F8AT ANTHRAZIT | 1 | 01/1999 | 52208264782 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | F8ST STAHLBLAU | 1 | 01/1999 | 52208264783 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F8ST STAHLBLAU | 1 | 01/1999 | 52208264784 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | F8TK TUERKIS | 1 | 01/1999 | 52208264785 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F8TK TUERKIS | 1 | 01/1999 | 52208264786 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with 100% Leather, Oregon/Int. black |
Q4=Yes |
|||||||||
| 06 | Cover backrest leather left | Q4SW SCHWARZ | 1 | 01/1999 | 52208264807 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | Q4SW SCHWARZ | 1 | 01/1999 | 52208264808 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather left | Q4TD TANINROT | 1 | 01/1999 | 52208264809 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | Q4TD TANINROT | 1 | 01/1999 | 52208264810 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather left | Q4MB MONTREALBL | 1 | 01/1999 | 52208264811 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | Q4MB MONTREALBL | 1 | 01/1999 | 52208264812 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Pinie" |
F7=Yes |
|||||||||
| 06 | Cover backrest cloth left | F7AT ANTHRAZIT | 1 | 01/1999 | 52208264773 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F7AT ANTHRAZIT | 1 | 01/1999 | 52208264774 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | F7FG FARNGRUEN | 1 | 01/1999 | 52208264775 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F7FG FARNGRUEN | 1 | 01/1999 | 52208264776 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | F7BE SANGRAU | 1 | 01/1999 | 52208264777 | $116.10 | +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | F7BE SANGRAU | 1 | 01/1999 | 52208264778 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Lots of Dots" |
G1=Yes |
|||||||||
| 06 | Cover backrest cloth left | G1GA GRAU-SCHW | 1 | 01/1999 | 52208264793 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | G1GA GRAU-SCHW | 1 | 01/1999 | 52208264794 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | G1MB MONTREALBL | 1 | 01/1999 | 52208264795 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | G1MB MONTREALBL | 1 | 01/1999 | 52208264796 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | G1SR SIENAROT | 1 | 01/1999 | 52208264797 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | G1SR SIENAROT | 1 | 01/1999 | 52208264798 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric,Jacquard /Int.sand-grau |
E1=Yes |
|||||||||
| 06 | Cover backrest cloth left | E1BE SANDGRAU | 1 | 09/1996 | 52208220403 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E1BE SANDGRAU | 1 | 09/1996 | 52208220404 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with 100% Leather, Oregon/Int. beige |
Q5=Yes |
|||||||||
| 06 | Cover backrest leather left | Q5BE SANDGRAU | 1 | 01/1999 | 52208264819 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest leather right | Q5BE SANDGRAU | 1 | 01/1999 | 52208264820 | $558.00 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather |
K5=Yes |
|||||||||
| 06 | Cover backrest vinyl left | K5SW SCHWARZ | 1 | 03/1997 | 52208232799 | $109.93 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest vinyl right | K5SW SCHWARZ | 1 | 03/1997 | 52208232800 | $109.93 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest vinyl left | K5BH SAND HELL | 1 | 03/1997 | 52208232801 | $158.85 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest vinyl right | K5BH SAND HELL | 1 | 03/1997 | 52208232802 | $109.93 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric, Jacquard/Int.black |
E2=Yes |
|||||||||
| 06 | Cover backrest cloth left | E2AT ANTHRAZIT | 1 | 09/1996 | 52208220401 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E2AT ANTHRAZIT | 1 | 09/1996 | 52208220402 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | E2KU KOENIGBLAU | 1 | 09/1996 | 52208220405 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E2KU KOENIGBLAU | 1 | 09/1996 | 52208220406 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | E2GD KLASS.ROT | 1 | 09/1996 | 52208220407 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E2GD KLASS.ROT | 1 | 09/1996 | 52208220408 | $116.10 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Familiy Kit and Cloth "Boa Boa" |
S759A=Yes E7=Yes |
|||||||||
| 06 | Cover backrest cloth left | E7BS BLAUSCHW. | 1 | 09/1998 | 52202698387 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E7BS BLAUSCHW. | 1 | 09/1998 | 52202698388 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | E7BV BLAUVIOLET | 1 | 09/1998 | 52202698389 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E7BV BLAUVIOLET | 1 | 09/1998 | 52202698390 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat or Sports Edition and Cloth "Boa Boa" |
S481A=Yes S719A=Yes E7=Yes |
|||||||||
| 06 | Cover backrest cloth left | E7AV AVUSBLAU | 1 | 09/1997 | 52208158231 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E7AV AVUSBLAU | 1 | 09/1997 | 52208158232 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | E7ZR SIERRAROT | 1 | 09/1997 | 52208158233 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E7ZR SIERRAROT | 1 | 09/1997 | 52208158234 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth left | E7TT GRAU | 1 | 09/1997 | 52208251013 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Cover backrest cloth right | E7TT GRAU | 1 | 09/1997 | 52208251014 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| INDIV.SERIES 96 INCREAS.VALUE STRATEGIE | ||||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52202276955 | $181.91 | ENDED, NoS | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52202276956 | $181.91 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Cloth "Op Art" |
G2=Yes |
|||||||||
| 07 | Lateral trim panel left | E7AV,E7ZR,G2AT | 1 | 01/1999 | 52208158093 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E7AV,E7ZR,G2AT | 1 | 01/1999 | 52208158094 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | G2OS HELLROT | 1 | 01/1999 | 52208264601 | $181.91 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | G2OS HELLROT | 1 | 01/1999 | 52208264602 | $181.91 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather Nappa SPECIAL SERIES LUXURY COMPACT |
M2=Yes |
|||||||||
| 07 | Lateral trim panel right | M2SW SCHWARZ | 1 | 10/1994 | 52202266432 | $350.42 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | M2MA BLAUVIOLET | 1 | 10/1994 | 52202266433 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | M2MA BLAUVIOLET | 1 | 10/1994 | 52202266434 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | M2GD KLASS.ROT | 1 | 10/1994 | 52202266435 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | M2GD KLASS.ROT | 1 | 10/1994 | 52202266436 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | M2CM CHAMPAGNER | 1 | 10/1994 | 52202266437 | $350.42 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | M2CM CHAMPAGNER | 1 | 10/1994 | 52202266438 | $350.42 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | M2HS HASELNUSS | 1 | 10/1994 | 52202266439 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | M2HS HASELNUSS | 1 | 10/1994 | 52202266440 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Cover backrest leather right | M2MQ MAULBEERE | 1 | 10/1994 | 52202494616 | $350.42 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Millpoint" SPECIAL SERIES SPORT COMPACT D7BL=blue/D7RT=red/D7TT=gray |
D7=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 09/1997 | 52209066977 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 09/1997 | 52209066978 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Ammonit" |
F8=Yes |
|||||||||
| 07 | Lateral trim panel left | F8AT ANTHRAZIT | 1 | 01/1999 | 52208264579 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F8AT ANTHRAZIT | 1 | 01/1999 | 52208264580 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | F8ST STAHLBLAU | 1 | 01/1999 | 52208264581 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F8ST STAHLBLAU | 1 | 01/1999 | 52208264582 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | F8TK TUERKIS | 1 | 01/1999 | 52208264583 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F8TK TUERKIS | 1 | 01/1999 | 52208264584 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with 100% Leather, Oregon/Int. black |
Q4=Yes |
|||||||||
| 07 | Lateral trim panel left | Q4TD TANINROT | 1 | 01/1999 | 52208264607 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | Q4TD TANINROT | 1 | 01/1999 | 52208264608 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | Q4MB MONTREALBL | 1 | 01/1999 | 52208264609 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | Q4MB MONTREALBL | 1 | 01/1999 | 52208264610 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Pinie" |
F7=Yes |
|||||||||
| 07 | Lateral trim panel left | F7AT ANTHRAZIT | 1 | 01/1999 | 52208264571 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F7AT ANTHRAZIT | 1 | 01/1999 | 52208264572 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | F7FG FARNGRUEN | 1 | 01/1999 | 52208264573 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F7FG FARNGRUEN | 1 | 01/1999 | 52208264574 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | F7BE SANDGRAU | 1 | 01/1999 | 52208264575 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | F7BE SANDGRAU | 1 | 01/1999 | 52208264576 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Lots of Dots" |
G1=Yes |
|||||||||
| 07 | Lateral trim panel left | G1GA GRAU-SCHW | 1 | 01/1999 | 52208264591 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | G1GA GRAU-SCHW | 1 | 01/1999 | 52208264592 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | G1MB MONTREALBL | 1 | 01/1999 | 52208264593 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | G1MB MONTREALBL | 1 | 01/1999 | 52208264594 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | G1MB MONTREALBL | 1 | 01/1999 | 52208264595 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | G1SR SIENAROT | 1 | 01/1999 | 52208264596 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric,Jacquard /Int.sand-grau |
E1=Yes |
|||||||||
| 07 | Lateral trim panel left | E1BE SANDGRAU | 1 | 09/1996 | 52208220423 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E1BE SANDGRAU | 1 | 09/1996 | 52208220424 | $152.89 | ENDED | Shop at ECS Tuning | ||
| For vehicles with 100% Leather, Oregon/Int. beige |
Q5=Yes |
|||||||||
| 07 | Lateral trim panel left | Q5BE SANDGRAU | 1 | 01/1999 | 52208264617 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | Q5BE SANDGRAU | 1 | 01/1999 | 52208264618 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather |
K5=Yes |
|||||||||
| 07 | Lateral trim panel left | M2SW SCHWARZ | 1 | 10/1994 | 52202266431 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | K5SW SCHWARZ | 1 | 03/1997 | 52208232793 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | K5SW SCHWARZ | 1 | 03/1997 | 52208232794 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | K5BH SAND HELL | 1 | 03/1997 | 52208232795 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | K5BH SAND HELL | 1 | 03/1997 | 52208232796 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric, Jacquard/Int.black |
E2=Yes |
|||||||||
| 07 | Lateral trim panel left | E2AT ANTHRAZIT | 1 | 09/1996 | 52208220421 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E2AT ANTHRAZIT | 1 | 09/1996 | 52208220422 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | E2KU KOENIGBLAU | 1 | 09/1996 | 52208220425 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E2KU KOENIGBLAU | 1 | 09/1996 | 52208220426 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | E2GD KLASS.ROT | 1 | 09/1996 | 52208220427 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E2GD KLASS.ROT | 1 | 09/1996 | 52208220428 | $152.89 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Familiy Kit and Cloth "Boa Boa" |
S759A=Yes E7=Yes |
|||||||||
| 07 | Lateral trim panel left | E7BV BLAUVIOLET | 1 | 09/1998 | 52202424547 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E7BV BLAUVIOLET | 1 | 09/1998 | 52202424548 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel left | E7OL,E7BS OELBL | 1 | 09/1998 | 52202492821 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E7OL,E7BS OELBL | 1 | 09/1998 | 52202492822 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Lots of Dots" or Cloth "Laser"/leather "Oregon" or 100% Leather, Oregon/Int. black |
G1=Yes G9=Yes Q4=Yes |
|||||||||
| 07 | Lateral trim panel left | Q4SW SCHWARZ | 1 | 01/1999 | 52208264605 | $350.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | Q4SW SCHWARZ | 1 | 01/1999 | 52208264606 | $350.42 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat or Sports Edition and Cloth "Boa Boa" or Cloth "Op Art" |
S481A=Yes S719A=Yes E7=Yes G2=Yes |
|||||||||
| 07 | Lateral trim panel left | E7AV,E7ZR,G2AT | 1 | 09/1997 | 52208158093 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | E7AV,E7ZR,G2AT | 1 | 09/1997 | 52208158094 | $215.39 | ENDED, +core | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318tds Seat, rear, uphlstry/cover, load-through?
- This technical diagram illustrates the Seat, rear, uphlstry/cover, load-through within the Seats group for the 3 Series E36 318tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Seat frame (Part #52208146419).
- Which models use the hardware listed in this Seat, rear, uphlstry/cover, load-through?
- The hardware and components featured in the Seat, rear, uphlstry/cover, load-through are specific to the 3 Series E36 318tds produced during 2000. These technical specifications ensure that parts like the Seat frame (52208146419) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, uphlstry/cover, load-through assembly?
- Each item in the Seat, rear, uphlstry/cover, load-through corresponds to the numbered list below the illustration. For the 3 Series E36 318tds, you can identify the Seat frame by locating its position on the schematic, which then links to the official BMW part number 52208146419 for the Seats section.
