Single parts of front seat controls for BMW 3 Series E36 318is (1999)

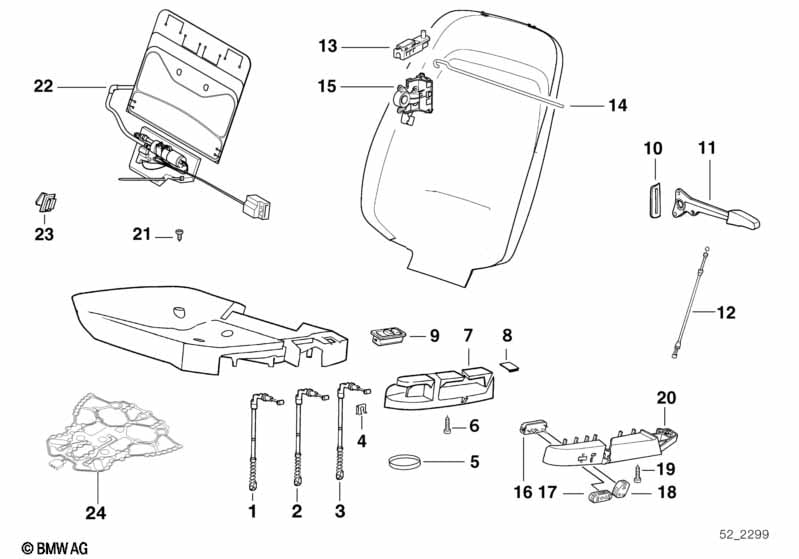

This Single parts of front seat controls technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.

Single parts of front seat controls
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Bowden cable horizontal adjustment ROT 1 52101977954 $9.80 Shop at ECS Tuning
02 Bowden cable vertical seat adjuster GRUEN 1 52101977953 $10.16 Shop at ECS Tuning
03 Bowden cable adjustm.of rest inclination SCHWARZ 1 52108183287 $9.91 ENDED Shop at ECS Tuning
04 Clamp 3 52108132161 $0.35 Shop at ECS Tuning
05 Rubber Ring 1 52101843100 $0.54 Shop at ECS Tuning
06 Screw 3,9X18 2 52108119279 $0.35 Shop at ECS Tuning
07 Actuation unit left 1 52101977949 $37.97 Shop at ECS Tuning
07 Actuation unit right 1 52101977950 $37.97 Shop at ECS Tuning
08 Seat pan cover SCHWARZ 2 52108130790 $0.57 Shop at ECS Tuning
08 Seat pan cover GRAU 2 09/1993 52108166261 $0.57 ENDED Shop at ECS Tuning
08 Seat pan cover BEIGE 2 09/1993 52108166262 $0.57 Shop at ECS Tuning
08 Seat pan cover TUERKIS 2 09/1993 52108166263 $0.57 ENDED Shop at ECS Tuning
08 Seat pan cover KLASSISCHROT 2 09/1993 52108166264 $0.69 Shop at ECS Tuning
08 Seat pan cover HELLGRAU 2 09/1993 52108166265 $0.57 ENDED Shop at ECS Tuning
08 Seat pan cover SAFRANGELB 2 09/1993 52108166266 $0.69 ENDED Shop at ECS Tuning
08 Seat pan cover BLAUVIOLETT 2 09/1993 52108166267 $0.57 Shop at ECS Tuning
09 Lumbar support switch 2 61311393363 $109.08 ENDED Shop at ECS Tuning
10 Covering left 2 09/1994 52108146489 $0.95 ENDED Shop at ECS Tuning
10 Covering right 1 09/1994 52108146490 $0.95 Shop at ECS Tuning
11 Lever left 1 09/1994 52108146485 $6.86 Shop at ECS Tuning
11 Lever right 1 09/1994 52108146486 $6.86 Shop at ECS Tuning
ONLY APPLIES TO CO-DRIVERS SIDE
11 Lever SCHWARZ 1 09/1994 52108201783 $6.17 ENDED Shop at ECS Tuning
For vehicles with
Seat adustment, mecanical
=Yes
12 Bowden cable BRAUN 2 09/1994 52108187999 $10.05 Shop at ECS Tuning
13 Clip 2 09/1994 52108183276 $6.35 Shop at ECS Tuning
14 Connection rod 2 09/1994 52108190367 $0.82 ENDED Shop at ECS Tuning
15 Unlocking unit, left 2 09/1994 52108187923 $5.35 Shop at ECS Tuning
15 Unlocking unit, right 2 09/1994 52108187924 $5.35 ENDED Shop at ECS Tuning
16 Switch seat adjusting front right 1 61311383476 $154.88 Shop at ECS Tuning
16 Switch seat adjusting front left 1 61318368933 $154.88 Shop at ECS Tuning
17 Button f front seat adjustment 2 61311379369 $4.42 Shop at ECS Tuning
18 Button f front left backrest 1 61311383481 $4.50 Shop at ECS Tuning
18 Button f front right backrest 1 61311383482 $4.50 Shop at ECS Tuning
19 Screw 3,9X18 4 52108119279 $0.35 Shop at ECS Tuning
20 Actuation unit left SCHWARZ 1 52108153597 $37.97 ENDED, +core Shop at ECS Tuning
20 Actuation unit right SCHWARZ 1 52108153598 $37.97 ENDED, +core Shop at ECS Tuning
20 Actuation unit left GRAU 1 09/1993 52108168731 $37.97 ENDED Shop at ECS Tuning
20 Actuation unit right GRAU 1 09/1993 52108168732 $37.97 ENDED Shop at ECS Tuning
20 Actuation unit left BEIGE 1 09/1993 52108168733 $37.97 ENDED Shop at ECS Tuning
20 Actuation unit right BEIGE 1 09/1993 52108168734 $37.97 ENDED Shop at ECS Tuning
20 Actuation unit left TUERKIS 1 09/1993 52108168735 $37.94 ENDED, +core Shop at ECS Tuning
20 Actuation unit right TUERKIS 1 09/1993 52108168736 ENDED, +core Shop at ECS Tuning
20 Actuation unit left KLASSISCHROT 1 09/1993 52108168737 $37.94 ENDED, +core Shop at ECS Tuning
20 Actuation unit right KLASSISCHROT 1 09/1993 52108168738 $37.94 ENDED, +core Shop at ECS Tuning
20 Actuation unit left HELLGRAU 1 09/1993 52108168739 $37.97 Shop at ECS Tuning
20 Actuation unit right HELLGRAU 1 09/1993 52108168740 $37.97 ENDED Shop at ECS Tuning
20 Actuation unit left SAFRANGELB 1 09/1993 52108168741 $37.94 ENDED, +core Shop at ECS Tuning
20 Actuation unit right SAFRANGELB 1 09/1993 52108168742 $37.94 ENDED, +core Shop at ECS Tuning
20 Actuation unit left BLAUVIOLETT 1 09/1993 52108168743 $37.97 ENDED, +core Shop at ECS Tuning
20 Actuation unit right BLAUVIOLETT 1 09/1993 52108168744 $37.97 ENDED, +core Shop at ECS Tuning
21 Screw M6X15,4 X 52108119276 $0.58 Shop at ECS Tuning
22 Lumbar support 1 09/1994 52108202414 $256.61 ENDED Shop at ECS Tuning
23 Holder 1 09/1994 61131382141 $0.56 ENDED Shop at ECS Tuning
24 Sensor mat f co-driver's seat identif. 1 09/1998 65778379556 $124.53 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
