Single parts of front seat controls for BMW 3 Series E36 318is (1996)

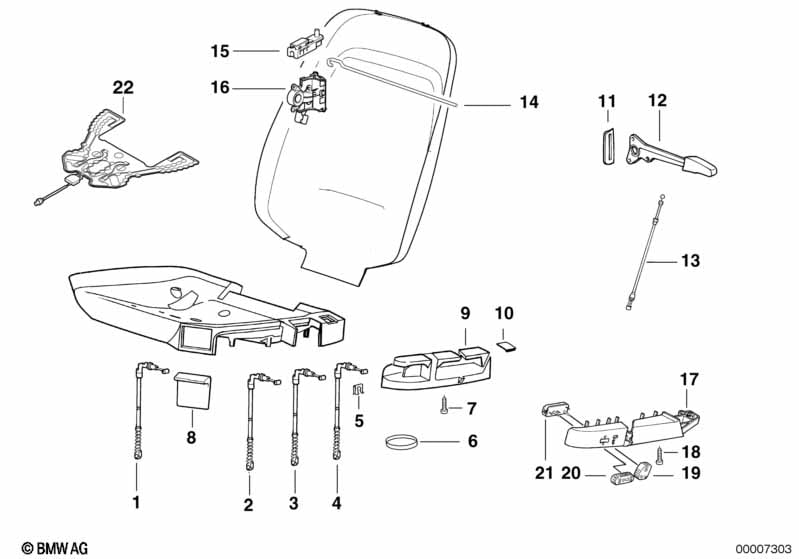

This Single parts of front seat controls technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 18 | Screw | 3,9X18 | 4 | 52108119279 | $0.35 | Shop at ECS Tuning | ||||
| 19 | Button f front left backrest | 1 | 61311383481 | $4.50 | Shop at ECS Tuning | |||||
| 19 | Button f front right backrest | 1 | 61311383482 | $4.50 | Shop at ECS Tuning | |||||
| 20 | Button f front seat adjustment | 2 | 61311379369 | $4.42 | Shop at ECS Tuning | |||||
| 21 | Switch seat adjusting front right | 1 | 61311383476 | $154.88 | Shop at ECS Tuning | |||||
| 21 | Switch seat adjusting front left | 1 | 61318368933 | $154.88 | Shop at ECS Tuning | |||||
| 22 | Sensor mat f co-driver's seat identif. | 1 | 09/1994 | 09/1997 | 65778367600 | $124.53 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Single parts of front seat controls?
- This technical diagram illustrates the Single parts of front seat controls within the Seats group for the 3 Series E36 318is produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Screw (Part #52108119279).
- Which models use the hardware listed in this Single parts of front seat controls?
- The hardware and components featured in the Single parts of front seat controls are specific to the 3 Series E36 318is produced during 1996. These technical specifications ensure that parts like the Screw (52108119279) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts of front seat controls assembly?
- Each item in the Single parts of front seat controls corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Screw by locating its position on the schematic, which then links to the official BMW part number 52108119279 for the Seats section.
