BMW sports seat frame mechanical for BMW 3 Series E36 320i (1995)

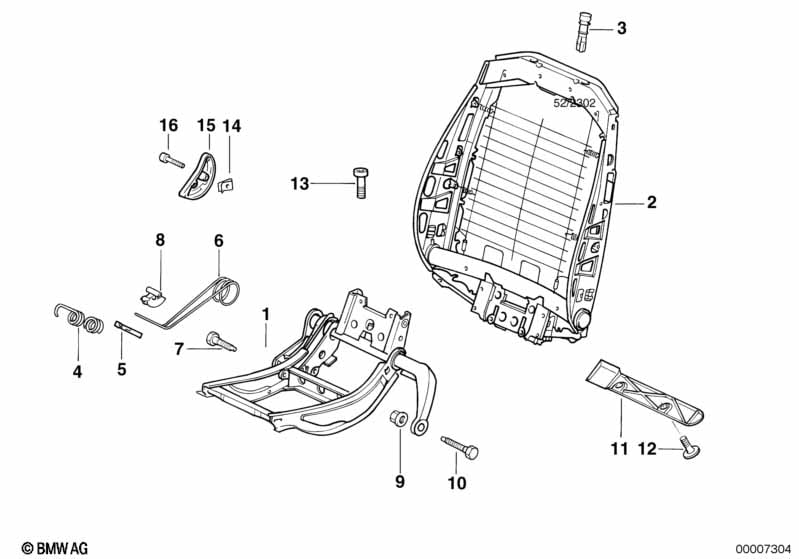

This BMW sports seat frame mechanical technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left upper part of seat mechanism | 1 | 09/1994 | 52108251067 | $292.01 | ENDED | Shop at ECS Tuning | |||
| 01 | Right upper part of seat mechanism | 1 | 09/1994 | 52108251068 | $292.01 | Shop at ECS Tuning | ||||
| 02 | Backrest frame | 2 | 09/1994 | 52108187998 | $60.16 | Shop at ECS Tuning | ||||
| 03 | Guide bush | 4 | 09/1994 | 52208132020 | $1.80 | Shop at ECS Tuning | ||||
| 04 | Tension spring | 4 | 09/1994 | 52108153029 | $3.68 | ENDED | Shop at ECS Tuning | |||
| 05 | Tension spring holder | 2 | 09/1994 | 52108153028 | $2.09 | Shop at ECS Tuning | ||||
| 06 | Rope | 2 | 09/1994 | 52108153030 | $10.39 | Shop at ECS Tuning | ||||
| 07 | Screw | M8X56 | 2 | 09/1994 | 52108227300 | $2.77 | ENDED | Shop at ECS Tuning | ||
| 08 | Supporting bracket | 2 | 09/1994 | 52108153027 | $1.62 | ENDED | Shop at ECS Tuning | |||
| 09 | Self-locking collar nut | M8-8-ZNS3 | 2 | 09/1994 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 09 | Self-locking collar nut | M8-10 ZNS3 | 2 | 09/1994 | 07119905374 | Shop at ECS Tuning | ||||
| 10 | Screw | M8X49 | 2 | 09/1994 | 52108153031 | $2.29 | Shop at ECS Tuning | |||
| 11 | Left protection cover | 1 | 09/1994 | 52108172847 | $6.45 | Shop at ECS Tuning | ||||
| 11 | Right protection cover | 1 | 09/1994 | 52108172848 | $6.45 | Shop at ECS Tuning | ||||
| 12 | Screw | M6X15,4 | 4 | 09/1994 | 52108119276 | $0.58 | Shop at ECS Tuning | |||
| 13 | Torx bolt | ISA M8X19 | 4 | 09/1994 | 52108161962 | $0.46 | Shop at ECS Tuning | |||
| 14 | Body nut | B3,9-6 | 2 | 09/1994 | 63261366551 | $1.65 | Shop at ECS Tuning | |||
| 15 | Left seat belt buckle guide | SCHWARZ | 1 | 09/1994 | 52102259295 | $33.62 | +core | Shop at ECS Tuning | ||
| 15 | Right seat belt buckle guide | SCHWARZ | 1 | 09/1994 | 52102259296 | $33.62 | ENDED, +core | Shop at ECS Tuning | ||
| 16 | Fillister head self-tapping screw | ST3,5X19 | 2 | 09/1994 | 07119907905 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
