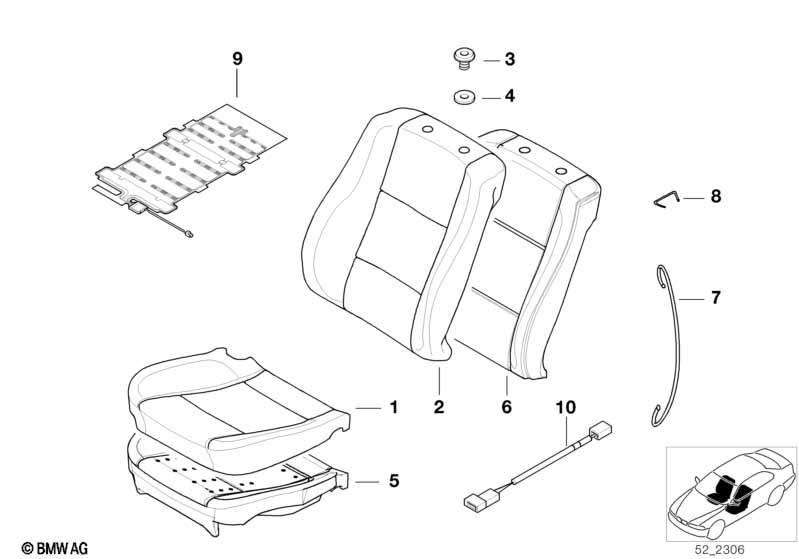

Seat, front, upholstery and cover for BMW 7 Series E38 728iL (1998)

This Seat, front, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Seat, front, upholstery and cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Model with seat heating
ALSO FOR VEHICLES WITHOUT
Seat heating
For vehicles with
Fabric/Epingle leather/Vavona wood
B9=Yes
01 Seat cover cloth B9TT GRAU 2 09/1998 52108176086 ENDED Shop at ECS Tuning
01 Seat cover cloth B9AT ANTHRAZIT 2 09/1998 52108176087 ENDED Shop at ECS Tuning
01 Seat cover cloth B9EG DKL.GRUEN 2 09/1998 52108176088 ENDED Shop at ECS Tuning
01 Seat cover cloth B9SK PAST.GRUEN 2 09/1998 52108176089 ENDED Shop at ECS Tuning
For vehicles with
Cloth flock Velours
B6=Yes
01 Seat cover cloth B6TT GRAU 2 09/1998 52108207643 $254.45 ENDED Shop at ECS Tuning
01 Seat cover cloth B6AT ANTHRAZIT 2 09/1998 52108207644 $189.72 ENDED Shop at ECS Tuning
01 Seat cover cloth B6DL MARINEBLAU 2 09/1998 52108207645 $254.45 ENDED Shop at ECS Tuning
For vehicles with
Fabric, woolen velours/Vavona wood
or
Fabric, woolen velours/Woodgrain
B7=Yes

B8=Yes
01 Seat cover cloth B7TT,B8TT GRAU 2 09/1998 52108176074 $272.30 ENDED, +core Shop at ECS Tuning
01 Seat cover cloth B7AT,B8AT ANTHR 2 09/1998 52108176075 $272.30 ENDED Shop at ECS Tuning
01 Seat cover cloth B7DL,B8DL BLAU 2 09/1998 52108176076 $272.30 ENDED, +core Shop at ECS Tuning
01 Seat cover cloth B7MK,B8MK GRAU 2 09/1998 52108176078 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, root wood
N6=Yes

N8=Yes
01 Seat cover leather N6TT,N8TT GRAU 2 09/1998 52108207672 $619.32 ENDED Shop at ECS Tuning
01 Seat cover leather N6SW,N8SW SCHW. 2 09/1998 52108207673 $619.32 Shop at ECS Tuning
01 Seat cover leather N6DL,N8DL BLAU 2 09/1998 52108207674 $719.82 ENDED, +core Shop at ECS Tuning
01 Seat cover leather N6SN,N8SN BEIGE 2 09/1998 52108207675 $619.32 Shop at ECS Tuning
01 Seat cover leather N6MK,N8MK GRAU 2 09/1998 52108207676 $705.08 ENDED Shop at ECS Tuning
01 Seat cover leather N6EG,N8EG GRUEN 2 06/1998 09/1998 52108221407 $619.32 ENDED Shop at ECS Tuning
For vehicles with
Fabric/Epingle leather/Vavona wood
B9=Yes
02 Cover backrest cloth B9TT GRAU 2 09/1998 52108177392 ENDED Shop at ECS Tuning
02 Cover backrest cloth B9AT ANTHRAZIT 2 09/1998 52108177393 ENDED Shop at ECS Tuning
02 Cover backrest cloth B9EG DKL.GRUEN 2 09/1998 52108177394 ENDED Shop at ECS Tuning
02 Cover backrest cloth B9SK PAST.GRUEN 2 09/1998 52108177395 ENDED Shop at ECS Tuning
For vehicles with
Cloth flock Velours
B6=Yes
02 Cover backrest cloth B6TT GRAU 2 09/1998 52108176100 $234.36 Shop at ECS Tuning
02 Cover backrest cloth B6AT ANTHRAZIT 2 09/1998 52108176101 $234.36 ENDED Shop at ECS Tuning
02 Cover backrest cloth B6DL MARINEBLAU 2 09/1998 52108176102 $234.36 ENDED, +core Shop at ECS Tuning
For vehicles with
Fabric, woolen velours/Vavona wood
or
Fabric, woolen velours/Woodgrain
B7=Yes

B8=Yes
02 Cover backrest cloth B7TT,B8TT GRAU 2 09/1998 52108176105 $272.30 ENDED, +core Shop at ECS Tuning
02 Cover backrest cloth B7AT,B8AT ANTHR 2 09/1998 52108176106 $272.30 ENDED Shop at ECS Tuning
02 Cover backrest cloth B7DL,B8DL BLAU 2 09/1998 52108176107 $272.30 ENDED, +core Shop at ECS Tuning
02 Cover backrest cloth B7MK,B8MK GRAU 2 09/1998 52108176109 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, root wood
N6=Yes

N8=Yes
02 Cover backrest, leather N6TT GRAU 2 09/1998 52108177386 $836.37 ENDED Shop at ECS Tuning
02 Cover backrest, leather N6SW SCHWARZ 2 09/1998 52108177387 $836.37 ENDED Shop at ECS Tuning
02 Cover backrest, leather N6DL MARINEBLAU 2 09/1998 52108177388 ENDED, +core Shop at ECS Tuning
02 Cover backrest, leather N6SN SANDBEIGE 2 09/1998 52108177389 $836.37 Shop at ECS Tuning
02 Cover backrest, leather N6MK LAVENDELGR 2 09/1998 52108177390 $836.37 ENDED, +core Shop at ECS Tuning
02 Cover backrest, leather N6EG,N8EG GRUEN 2 09/1998 52108221408 $719.82 ENDED Shop at ECS Tuning
03 Cover SCHWARZ 4 52108191245 $1.66 Shop at ECS Tuning
03 Cover GRAU 4 52108192443 $1.66 Shop at ECS Tuning
03 Cover SANDBEIGE 4 52108192444 $1.12 Shop at ECS Tuning
03 Cover LAVENDELGRAU 4 52108192445 $0.90 ENDED Shop at ECS Tuning
03 Cover PASTELLGRUEN 4 52108192446 $1.50 ENDED Shop at ECS Tuning
04 Covering Lower 4 52101838969 $0.43 Shop at ECS Tuning
05 Pad seat front 2 09/1998 52108207408 $150.27 Shop at ECS Tuning
06 Pad seat backrest front 2 09/1998 52108150029 $165.32 Shop at ECS Tuning
07 Wire-strap L=1800MM X 52208129296 $1.14 Shop at ECS Tuning
08 Clamp 1,6X20X10,1 X 52101945543 $0.09 Shop at ECS Tuning
10 Adapter cable for seat heater 2 09/1995 61129069761 $77.25 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
